DC 12V Single Channel Relay Module RF Wireless Switch Receiver + Remote Control Transmitter

$9.50

Shipping calculated at checkout.

Quantity

AG-C106 1-Channel 433MHz RF Wireless Remote Control Relay Switch – 12V

The AG-C106 Wireless Remote Control Switch is a compact single-channel RF receiver with an integrated relay, designed for remotely switching electrical and electronic equipment.

Using 433MHz RF wireless communication, the supplied key-fob remote can control the receiver without requiring direct line-of-sight, making it suitable for access control, lighting, gates, doors, security systems and general remote switching applications.

The receiver supports learning-code and fixed-code transmitters and can store multiple compatible remote controls.

Technical Specifications

  • Model: AG-C106
  • Product Type: RF Wireless Remote Control Relay Switch
  • Number of Channels: 1
  • Number of Relays: 1
  • RF Frequency: 433MHz
  • Receiver Type: Superheterodyne
  • Receiver Sensitivity: Approx. -105dBm
  • Working Voltage: 12V Version
  • Typical Working Current: Approx. 6mA
  • Control Distance: Approx. 50–100m in Open Space
  • Remote Coding: Learning Code / Fixed Code
  • Compatible Encoding: EV1527 / PT2262 and Compatible Types
  • Learning Function: Yes
  • Multiple Remote Support: Yes
  • Operating Modes: Momentary / Toggle
  • Connection: Screw Terminals
  • Receiver Size: Approx. 40 × 37 × 25mm
  • Enclosure: Protective Plastic Case
  • Operating Temperature: Approx. -20°C to +70°C

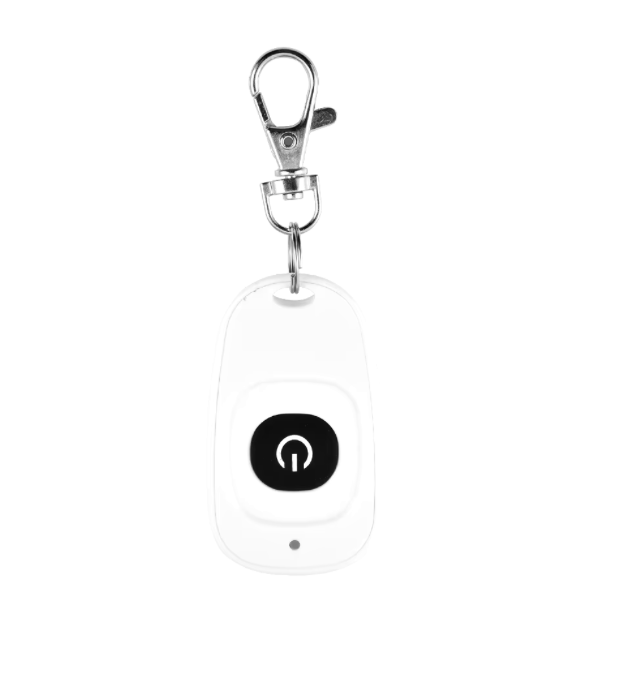

433MHz RF Remote Control

Unlike an infrared remote control, RF communication does not require the remote to be pointed directly at the receiver.

The wireless signal can operate through typical indoor obstacles such as doors and some walls, although the actual range will depend on the environment.

In an open area with minimal interference, the typical control range can reach approximately:

50–100 meters

Indoor range will normally be shorter.

Single-Channel Relay Output

The AG-C106 contains one relay output for controlling an external electrical circuit.

It can be used to remotely switch equipment such as:

  • Lights
  • Electronic Locks
  • Door Controllers
  • Gate Controllers
  • Alarm Systems
  • Access Control Equipment
  • Small Automation Systems
  • Pumps with Suitable Interface
  • Motors with Suitable Control Circuit

For motor forward/reverse operation, additional relay or motor-control circuitry may be required. A single SPDT relay by itself should not automatically be described as a complete motor reversing controller.

Learning-Code Function

The receiver can learn compatible wireless remote-control transmitters.

Supported encoding families commonly include:

EV1527 / 1527 Learning Code

PT2262 / 2262 Fixed Code

and compatible 433MHz transmitters.

Multiple compatible remote controls can be paired with the same receiver, making it possible for several users to operate the same device.

Remote Learning Procedure

A typical pairing procedure is:

1. Power the receiver.

2. Press the learning button on the receiver.

3. The learning indicator changes state to indicate pairing mode.

4. Within several seconds, press the desired button on the remote control.

5. The indicator flashes to confirm successful pairing.

The exact LED behavior can vary slightly between production versions.

Momentary Mode

In Momentary / Inching Mode, the relay remains active only while the remote-control button is being pressed.

Press Button → Relay ON

Release Button → Relay OFF

This mode is useful for:

  • Door Openers
  • Electric Locks
  • Gate Controls
  • Jog Controls
  • Momentary Commands

Toggle / Self-Locking Mode

In Toggle Mode, each press changes the relay state.

First Press → Relay ON

Second Press → Relay OFF

Third Press → Relay ON

and so on.

This mode is useful for remotely controlling lights and other equipment that needs to remain ON after the remote button is released.

Operating Mode Selection

The receiver PCB includes jumper settings that can be used to configure the operating behavior.

The exact jumper position should be checked against the markings on the supplied receiver because board revisions may differ.

Always disconnect power before changing jumper settings.

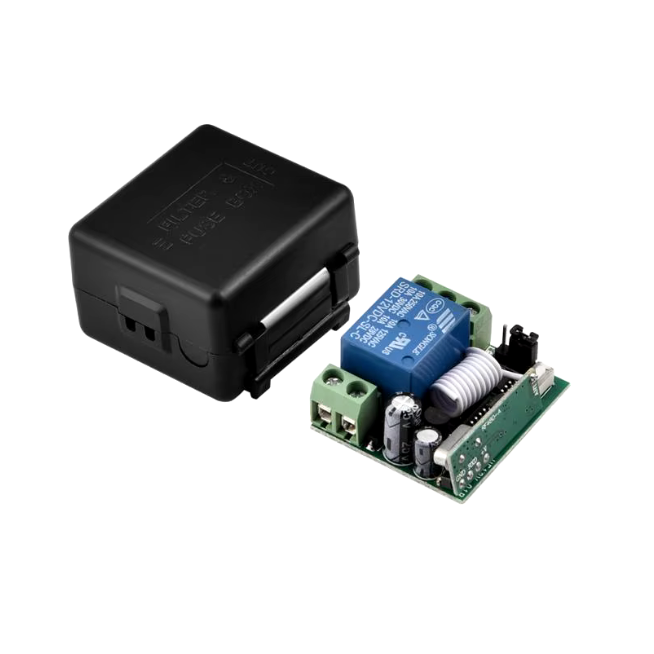

Compact Enclosed Design

The receiver PCB is installed inside a small protective plastic enclosure.

This helps protect the electronics during normal installation and makes the module easier to mount inside control boxes, equipment or DIY projects.

The enclosure is not automatically considered waterproof unless an IP rating is specifically stated for the supplied version.

Applications

Ideal for:

  • Wireless Light Control
  • Garage Door Control
  • Gate Control
  • Access Control
  • Electric Locks
  • Security Systems
  • Alarm Systems
  • Remote Switching
  • Home Automation
  • DIY Automation
  • Window Control Systems
  • Entrance Control
  • Industrial Control Projects
  • Robotics
  • Electronic Equipment

Important Note About Relay Rating

The 6mA working current specified for this product refers to the receiver electronics and should not be confused with the relay's load capacity.

Similarly, a specification such as 10mA output current found in some generic AG-C106 descriptions is inconsistent with the presence of an electromechanical relay and should not be used as the relay contact rating.

The maximum switching voltage and current should be determined from the markings on the actual relay installed inside the receiver.

For motors, pumps, transformers, large LED power supplies and other inductive or high-inrush loads, use an appropriately rated external contactor or power relay when necessary.

Frequency Note

AG-C106 receivers are available in different RF-frequency versions.

This product should only be paired with a remote operating at the same frequency as the receiver.

For the 433MHz version:

Receiver Frequency → 433MHz

Remote Frequency → 433MHz

A 315MHz remote will not work correctly with a 433MHz receiver.

Package Includes

  • 1 × AG-C106 1-Channel RF Wireless Relay Receiver
  • 1 × 433MHz Single-Button Key-Fob Remote Control
