DS3240 180 Degree Servo Motor

$21.99

Shipping calculated at checkout.

Quantity

DS3240 40kg High-Torque Digital Servo Motor – 180°, Metal Gear

The DS3240 180° Digital Servo Motor is a powerful high-torque servo designed for robotic arms, mobile robots, RC vehicles, steering systems and other applications requiring strong and accurate position control.

With up to approximately 40 kg·cm stall torque, a durable metal gear system and digital PWM control, the DS3240 is well suited for demanding robotics and mechanical projects.

This version provides approximately 180° positional control and is designed to move to a commanded angular position rather than rotate continuously.

Technical Specifications

  • Model: DS3240
  • Servo Type: High-Torque Digital Servo
  • Control Angle: 180°
  • Operating Voltage: Typically 5–7.4V DC
  • Maximum Stall Torque: Up to 40 kg·cm
  • Control Method: PWM
  • Typical Pulse Range: 500–2500µs
  • Neutral Position: Approx. 1500µs
  • Motor Type: High-Torque DC Motor
  • Gear Type: Metal Gear
  • Output Spline: 25T
  • Bearing: Dual Ball Bearing
  • Rotation Type: Positional
  • Connector: Standard 3-Wire Servo Connector

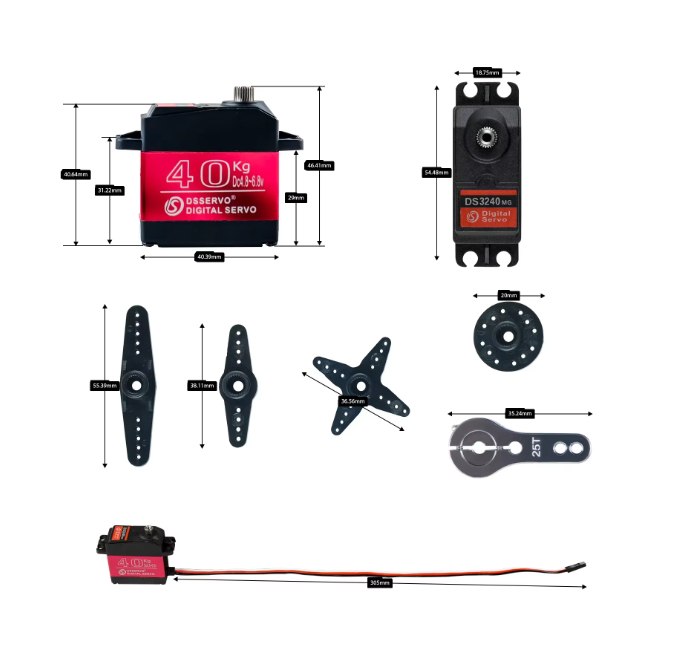

  • Typical Size: Standard Servo Format

High Torque – Up to 40 kg·cm

The DS3240 is designed for applications requiring considerably more mechanical force than conventional hobby servos.

Its maximum stall torque can reach approximately:

40 kg·cm

which is equivalent to approximately:

3.92 N·m

This makes the servo suitable for larger robot joints, steering mechanisms and mechanical linkages.

180° Position Control

This version provides approximately:

0–180° Positional Control

The servo receives a PWM control signal and automatically moves its output shaft to the requested angular position.

This is a position-control servo, not a continuous-rotation motor.

Digital PWM Control

The DS3240 uses standard servo-style PWM control, making it straightforward to interface with microcontrollers and servo controllers.

Typical control characteristics include:

  • Pulse Range: Approximately 500–2500µs
  • Center Position: Approximately 1500µs
  • Control: PWM

The exact usable pulse range should be adjusted carefully in software to avoid driving the servo against its mechanical end stops.

Metal Gear Construction

The DS3240 uses a metal gear transmission designed to withstand the mechanical forces produced by its high-torque motor.

Compared with plastic-gear hobby servos, metal gears provide improved durability for applications involving heavier loads and frequent movement.

25T Output Spline

The servo typically uses a:

25-Tooth (25T) Output Spline

This allows it to work with many compatible metal servo horns, arms and mechanical adapters.

Always verify spline compatibility when selecting an aftermarket servo horn.

Arduino & ESP32 Compatible

The DS3240 can be controlled using many popular platforms, including:

  • Arduino UNO
  • Arduino Nano
  • Arduino Mega
  • ESP32
  • ESP8266
  • STM32
  • Raspberry Pi with Suitable PWM Control
  • PCA9685 Servo Controller
  • RC Receivers
  • Dedicated Robot Controllers

Important Power Supply Requirement

The DS3240 is a high-power servo and can draw several amps under heavy load or during startup.

It should not be powered directly from an Arduino, ESP32 or Raspberry Pi power pin.

Use a dedicated external power supply or high-current BEC suitable for the servo voltage and current requirements.

Typical connection:

Servo V+ → External Servo Power Supply

Servo GND → External Power Supply Ground

Servo Signal → Microcontroller / Servo Controller

Microcontroller GND → Common Ground

The servo power supply and controller must share a common ground for reliable PWM control.

When several high-torque servos are used together, the power supply must be sized for the combined peak current of all servos.

Understanding the 40 kg·cm Rating

The 40 kg·cm specification is stall torque, not the recommended continuous operating torque.

For example, theoretically:

  • At 1cm from the shaft → 40kg equivalent stall force
  • At 2cm → 20kg
  • At 5cm → 8kg
  • At 10cm → 4kg
  • At 20cm → 2kg

These values are theoretical stall-force relationships only.

For actual robotic applications, the working load should be significantly lower because acceleration, linkage geometry, friction, shock loading, servo heating and safety margin must all be considered.

Applications

Ideal for:

  • Robotic Arms
  • Robot Joints
  • Robot Grippers
  • Humanoid Robots
  • Quadruped Robots
  • Hexapod Robots
  • Mobile Robots
  • RC Crawlers
  • RC Cars
  • RC Trucks
  • Steering Systems
  • Pan/Tilt Mechanisms
  • Mechanical Linkages
  • University Robotics Projects
  • Prototyping
  • DIY Automation

Important Notes

  • This product is the 180° positional version.
  • It is not a continuous-rotation servo.
  • Maximum torque refers to stall torque, not continuous working torque.
  • Use a dedicated high-current servo power supply.
  • Do not power the servo directly from a microcontroller power pin.
  • Always connect the controller and servo power-supply grounds together.
  • Avoid forcing the output shaft beyond its mechanical travel.
  • Start with a conservative PWM range and gradually calibrate the required 0–180° travel.
  • Actual torque, speed and current depend on the applied supply voltage.
  • Specifications can vary between DS3240 versions and manufacturers.

Package Includes

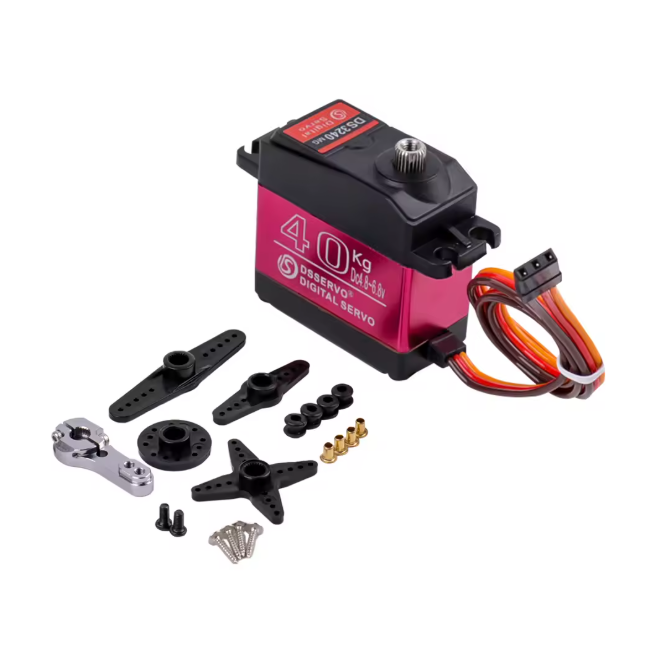

  • 1 × DS3240 40kg 180° Digital Servo Motor
  • Servo Horn / Arm
  • Mounting Hardware
