ECR6800 Multi-channel Paperless Recorder 6 Channels

$449.99
Quantity
Pickup available at Robot Pi Shop

Specifications:

Channel 6 analog signal inputs

Acouncy 0.29F.S

sampling 1 second

Distribution 2 channels 24VDC±10%30mA each

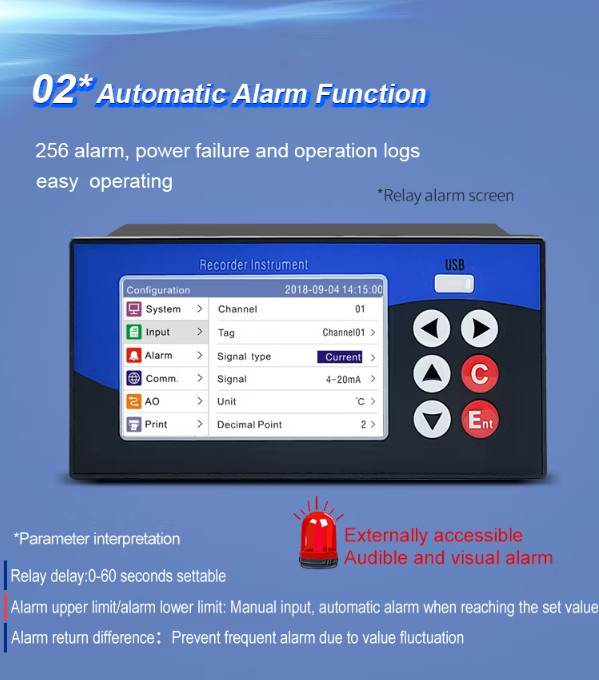

Alarm 6-way normally open relay, 250VAC 3A,30VDC 3A (resistive load)

Trammission 2 channels of 4-20mA transmission output, load ≤750N

Power supply AC220V±10%50Hz/24VDC±10%

Preheat time 30 minutes after turning on the power

Environment Temperature:-10-60ºC Humidity:0-85%RH(no condensation)

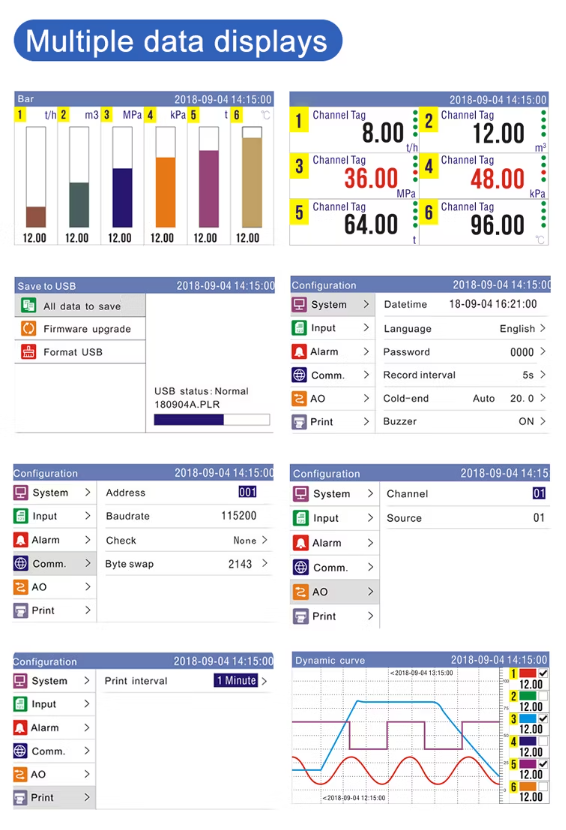

LCD screen 4-inch color LCD display

Data memory 16Mb,900,000 records

Other records There are 256 alarm records,256 point drop records,and 256 operation logs.

Record interval 1 second,2seconds,5 seconds (default),10 seconds,15 seconds, 30 seconds....

RS485 1 channel,standard Modbus RTU protocol

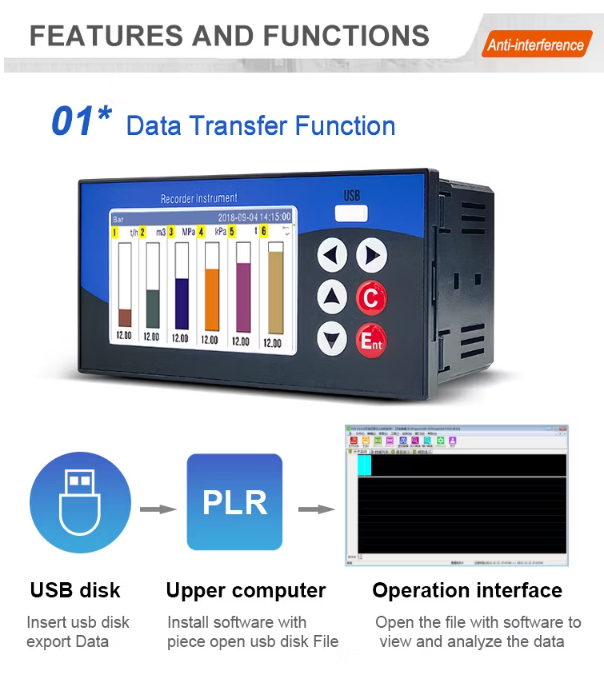

USB USB2.0
