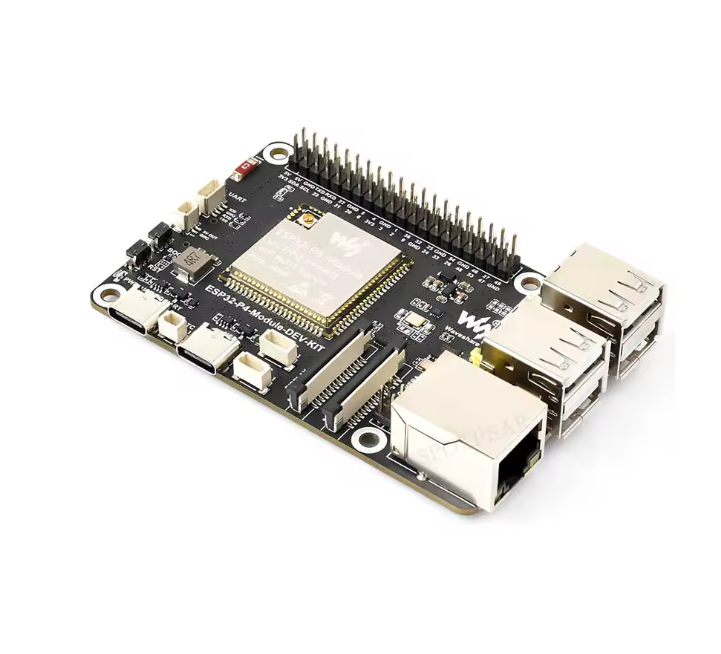

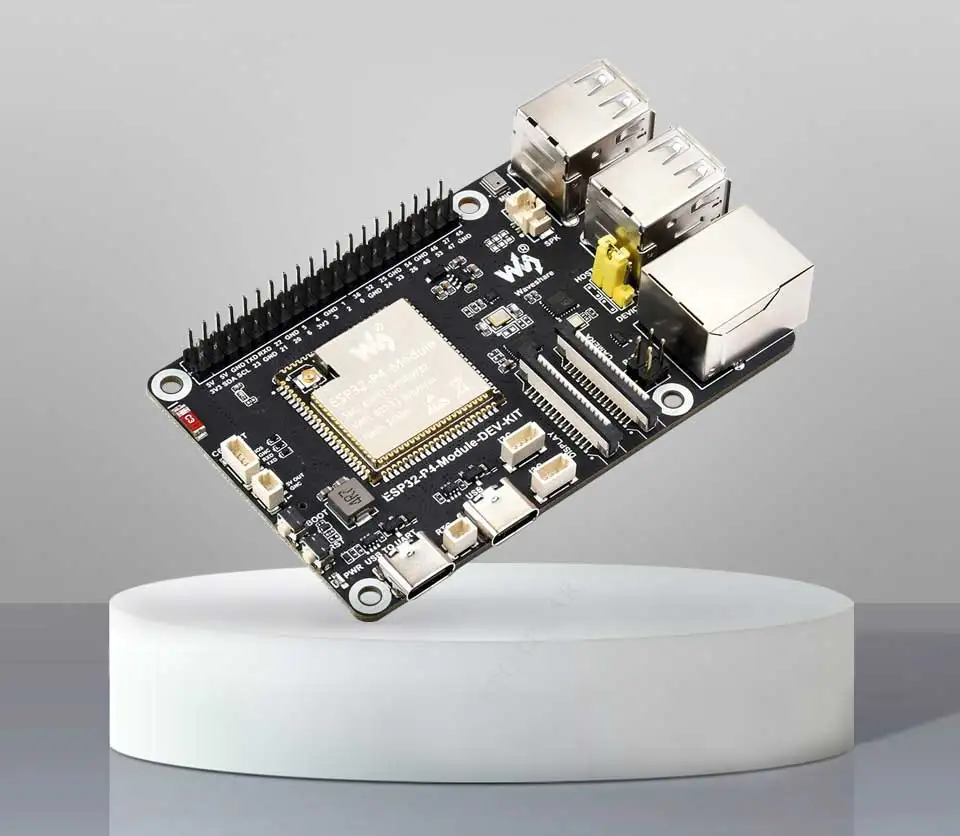

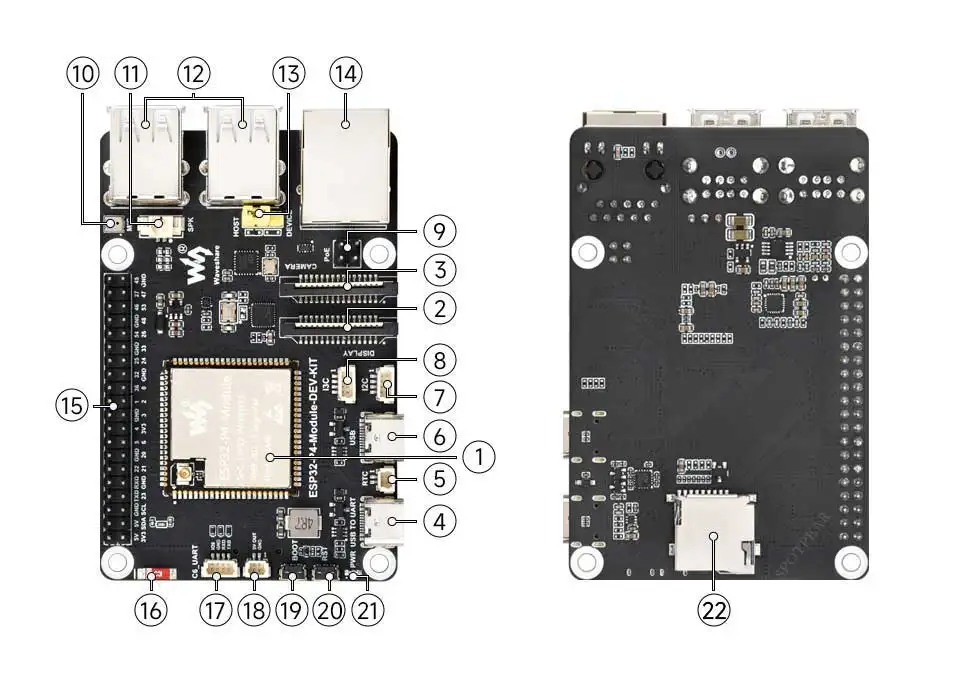

ESP32-P4-Module-DEV-KIT Development Board with Speaker

The ESP32-P4-Module-DEV-KIT is a high-performance development platform based on the ESP32-P4, designed for advanced HMI, multimedia, camera, audio, robotics and embedded applications.

Powered by a dual-core 32-bit RISC-V processor running up to 400MHz, the ESP32-P4 provides significantly higher processing performance than traditional ESP32 development boards and includes advanced interfaces for displays, cameras, USB, Ethernet and audio.

This version is supplied with an external speaker, making it particularly suitable for multimedia and HMI applications.

Technical Specifications

  • Model: ESP32-P4-Module-DEV-KIT
  • Main Controller: ESP32-P4
  • CPU Architecture: 32-bit RISC-V
  • Main CPU: Dual Core
  • Maximum CPU Frequency: 400MHz
  • Low-Power Core: RISC-V, up to 40MHz
  • On-Chip SRAM: 768KB HP SRAM + 32KB LP SRAM
  • External PSRAM: Supported by module configuration
  • Logic Level: 3.3V
  • USB: USB 2.0 High-Speed
  • USB Host: Supported
  • USB Device: Supported
  • USB Serial/JTAG: Supported
  • Ethernet: 10/100Mbps Ethernet
  • Ethernet Connector: RJ45

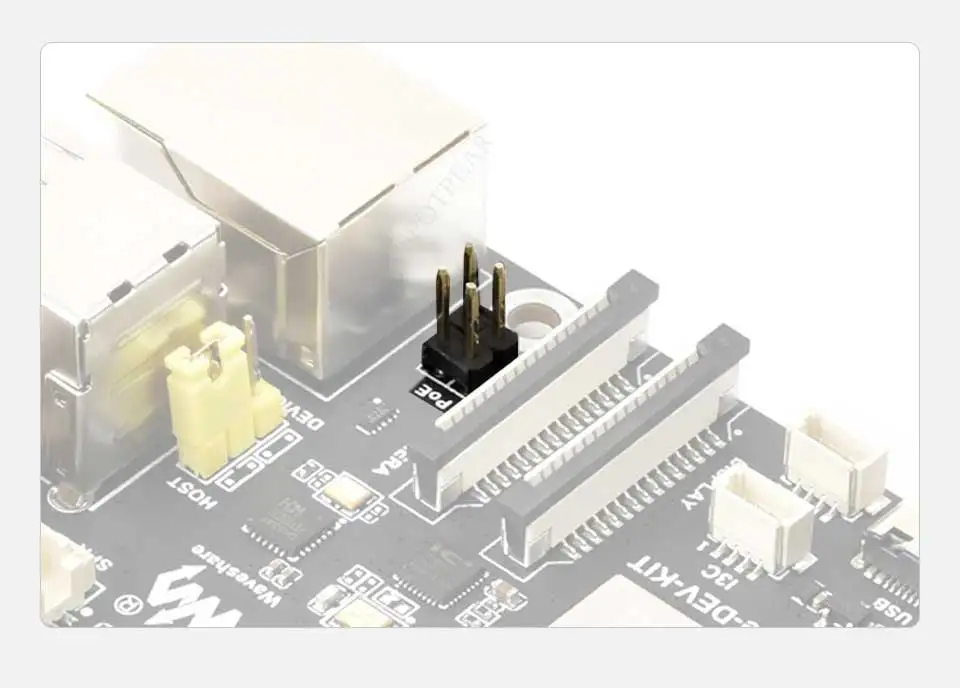

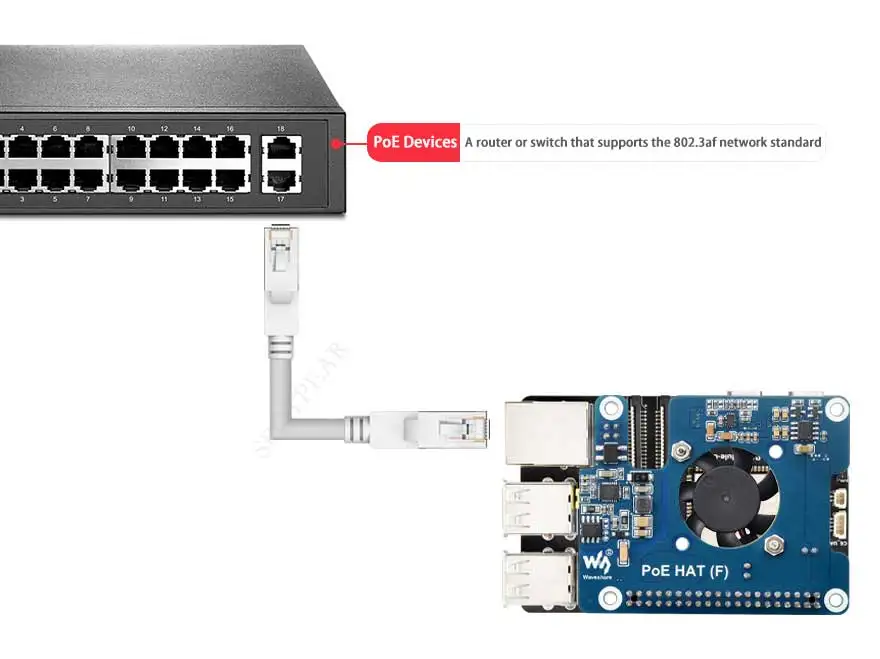

  • PoE: Supported through compatible PoE configuration/module
  • Camera Interface: MIPI CSI
  • Display Interface: MIPI DSI
  • Audio: Speaker Interface
  • Speaker: Included
  • GPIO Expansion: 40-Pin Header
  • I²C: Supported
  • SPI: Supported
  • UART: Supported
  • I²S: Supported
  • PWM: Supported
  • ADC: Supported
  • SD/MMC: Supported
  • RTC: Supported
  • CAN / TWAI Controller: Supported
  • Programming / Debugging: USB and UART

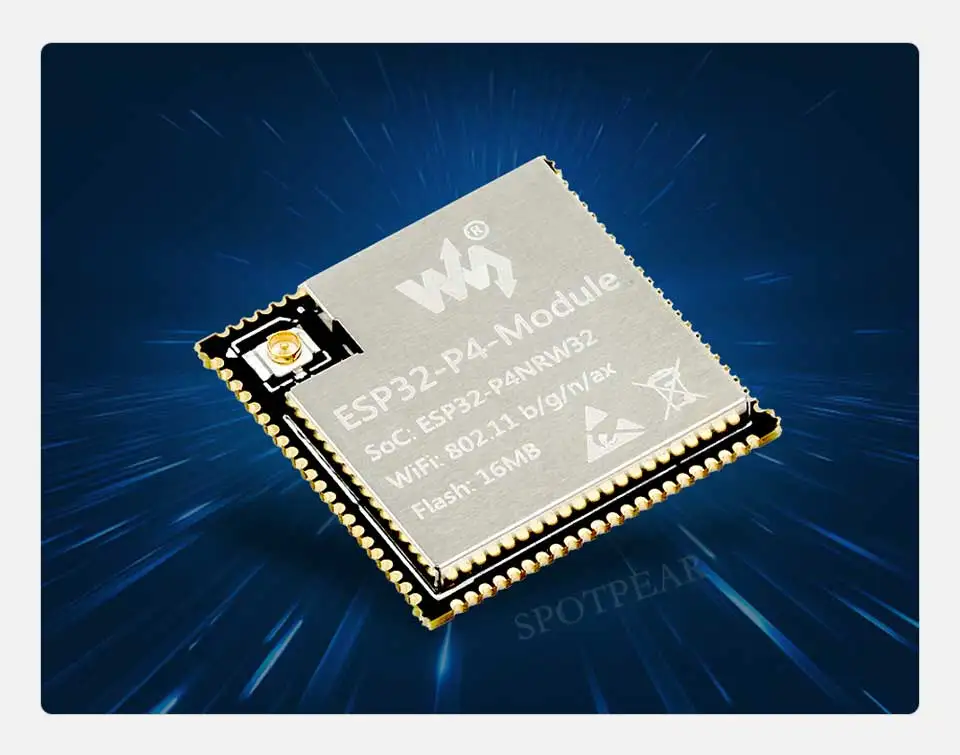

High-Performance ESP32-P4

The ESP32-P4 features a powerful:

Dual-Core 32-bit RISC-V CPU running up to 400MHz

A separate low-power RISC-V core is available for handling lower-power tasks.

This makes the board suitable for significantly more demanding embedded applications such as:

  • Graphical User Interfaces
  • Image Processing
  • Camera Applications
  • Multimedia Systems
  • Industrial HMI
  • Robotics
  • Edge Processing

MIPI Camera & Display Support

The development board provides connectors for the ESP32-P4's advanced multimedia interfaces.

MIPI CSI

Designed for connecting compatible camera modules.

MIPI DSI

Designed for connecting compatible LCD and touchscreen displays.

These interfaces make the board particularly suitable for advanced LVGL HMI, camera and multimedia applications.

Ethernet Connectivity

The board includes an onboard RJ45 Ethernet connector, allowing wired network connectivity.

Typical applications include:

  • Industrial Network Devices
  • Local Web Servers
  • IoT Gateways
  • Network Controllers
  • HMI Panels
  • Building Automation
  • Robotics
  • Data Acquisition

USB Host & Device

The board provides USB connections supporting the ESP32-P4's USB 2.0 High-Speed OTG capabilities.

Depending on the application, the board can work with compatible USB peripherals such as:

  • Keyboards
  • Mice
  • USB Storage
  • USB Devices
  • Other supported peripherals

Audio Support

This version includes an external speaker that connects to the board's audio interface.

This allows the development of applications involving:

  • Voice Prompts
  • Notifications
  • Alarm Sounds
  • Multimedia Interfaces
  • Interactive HMI
  • Smart Control Panels

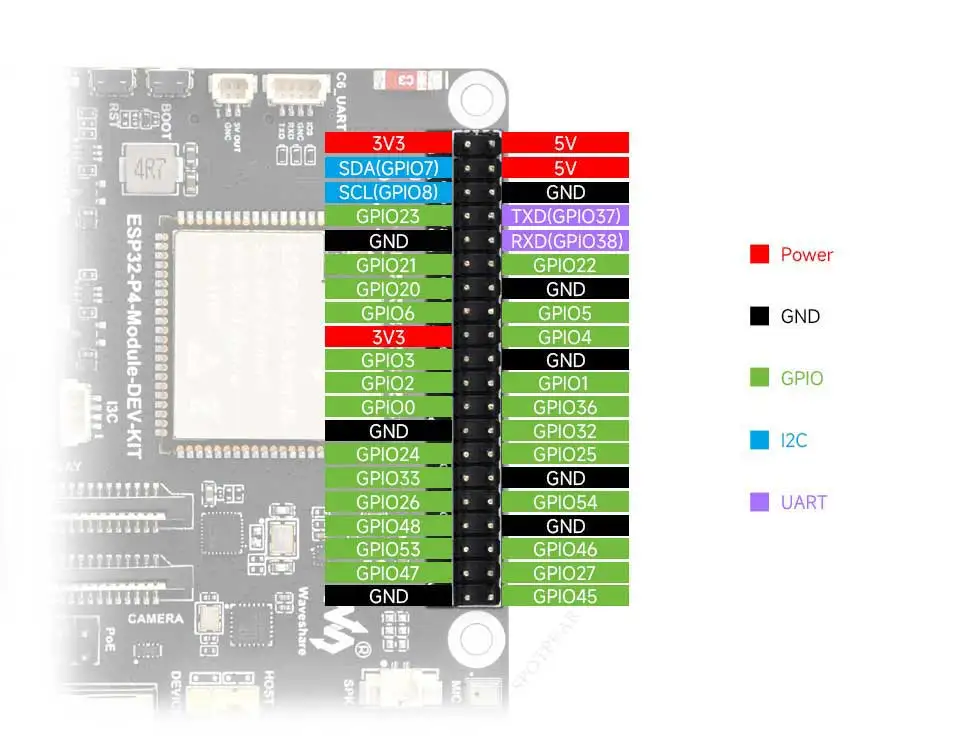

40-Pin GPIO Header

A large GPIO expansion header provides access to the ESP32-P4's peripheral interfaces for connecting:

  • Sensors
  • Displays
  • Relays
  • Motor Controllers
  • Communication Modules
  • ADC Devices
  • I²C Modules
  • SPI Modules
  • UART Devices

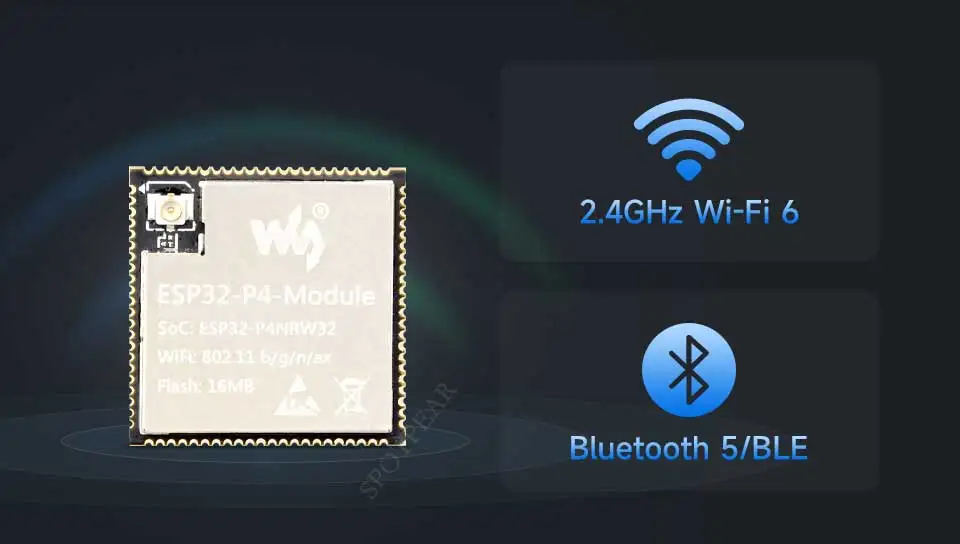

WiFi & Bluetooth Important Note

The ESP32-P4 itself does not contain built-in WiFi or Bluetooth.

Wireless connectivity requires an additional compatible wireless ESP32 device or module.

Do not advertise this board as having standalone WiFi or Bluetooth unless your specific configuration includes a separate wireless companion module.

Programming & Development

The ESP32-P4 is primarily supported through:

  • ESP-IDF
  • USB Serial/JTAG
  • UART
  • JTAG Debugging

It is suitable for advanced embedded development and graphical applications using frameworks such as LVGL.

Applications

Ideal for:

  • Advanced HMI
  • LVGL Interfaces
  • Touchscreen Control Panels
  • Camera Applications
  • Image Processing
  • Robotics
  • Industrial Automation
  • Multimedia Devices
  • Smart Home Panels
  • Ethernet Controllers
  • IoT Gateways
  • Audio Applications
  • Machine Vision Prototypes
  • Embedded Linux Alternative Applications
  • University Projects
  • R&D
  • Advanced Embedded Development

Important Notes

  • ESP32-P4 does not have built-in WiFi or Bluetooth.
  • GPIO operates at 3.3V logic.
  • Do not apply 5V directly to GPIO pins.
  • Display and camera modules must be compatible with the board's connectors and ESP32-P4 interfaces.
  • An external CAN transceiver is required when using the TWAI/CAN controller with a physical CAN bus.
  • PoE operation depends on the appropriate PoE hardware/configuration.
  • This product is intended for development and prototyping applications.

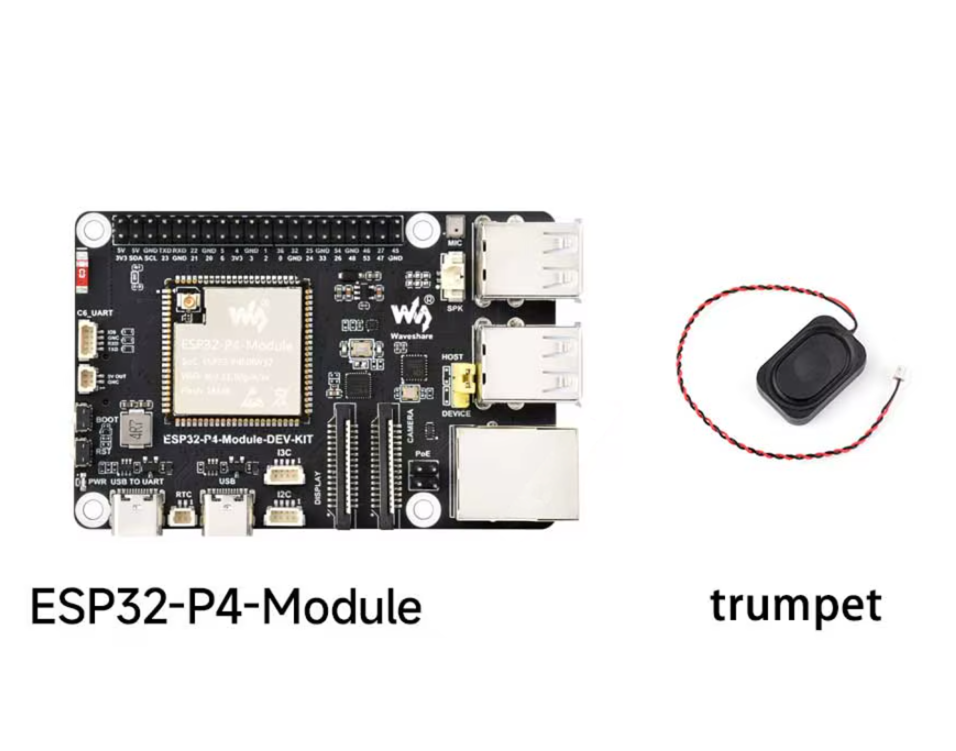

Package Includes

  • 1 × ESP32-P4-Module-DEV-KIT
  • 1 × Speaker
