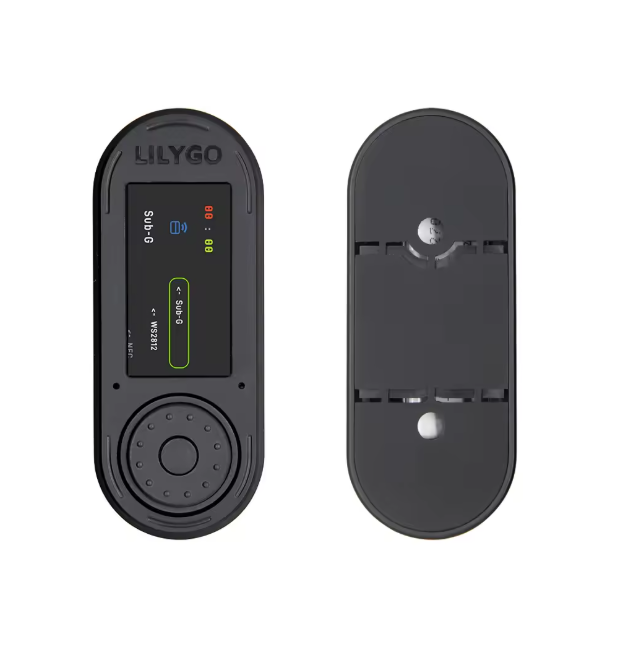

Black electronic device with digital display and control buttons on a white background, branded 'LILYGO'.

LILYGO®

ESP32-S3 CC1101 T-Embed Plus

$74.99
Quantity
Pickup available at Robot Pi Shop

Specifications

MCU

ESP32-S3

Flash

16MB

PSRAM

8MB

Wireless Connectivity

2.4Ghz Wi-Fi

BLE 5

Onboard Functions

  • Boot + RST

  • IR Transceiver

  • Bat Detection: IO04

Onboard Button

Reset + Boot


CC1101 Low-Power Sub-1 GHz RF Transceiver

Frequency Bands

  • 300-348MHz

  • 387-464MHz

  • 779-928MHz

Optional Expansion

nRF24L01

Worldwide 2.4GHz ISM


I2C Transceiver Module

PN532

MAX98357A


Screen Specifications

Type

IPS TFT LCD

Resolution

170(H)RGB x 320(V)

Drive Chip

ST7789

Size

1.9-inch Diagonal

Interface

SPI






Version Specifications

Version

T-Embed PLUS

CC1101

YES

nRF24L01

YES

Sample Code For Reference[Github]

ESP32-S3 CC1101 T-Embed Plus
