ESP32-S3 N16R8 Development Board

$11.99

Shipping calculated at checkout.

Quantity

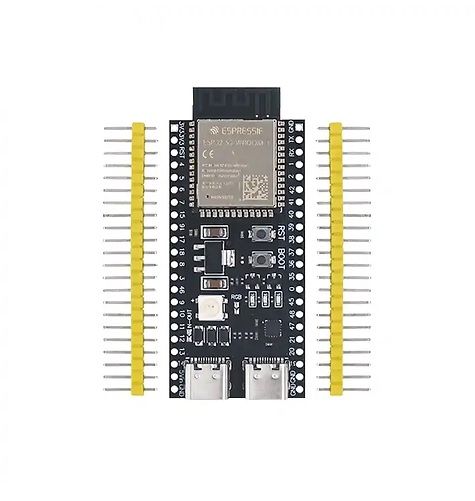

ESP32-S3 N16R8 Development Board – 16MB Flash, 8MB PSRAM, Dual USB-C

The ESP32-S3 N16R8 Development Board is a high-performance WiFi and Bluetooth development platform based on the ESP32-S3-WROOM-1-N16R8 module.

Featuring a dual-core 240MHz processor, 16MB Flash and 8MB PSRAM, this board provides significantly more memory for demanding IoT, graphical interface, camera, audio and AIoT applications.

The board features two USB Type-C ports, providing both USB-to-serial programming and native USB OTG functionality.

Technical Specifications

  • Module: ESP32-S3-WROOM-1-N16R8
  • Processor: Xtensa 32-bit LX7 Dual-Core
  • Maximum CPU Frequency: 240MHz
  • ROM: 384KB
  • Internal SRAM: 512KB
  • Flash Memory: 16MB
  • PSRAM: 8MB Octal SPI
  • WiFi: IEEE 802.11 b/g/n
  • WiFi Frequency: 2.4GHz
  • WiFi Data Rate: Up to 150Mbps
  • Bluetooth: Bluetooth 5 Low Energy
  • Bluetooth Mesh: Supported
  • Logic Voltage: 3.3V
  • Board Power: 5V via USB Type-C
  • USB Connectors: 2 × USB Type-C
  • Native USB: USB 2.0 Full-Speed OTG
  • USB Serial/JTAG: Supported
  • GPIO: Up to 36 GPIOs exposed/available depending on configuration
  • Development Board Pins: 44 Pins
  • Header Layout: 22 Pins per Side
  • Header Pitch: 2.54mm
  • Antenna: Integrated PCB Antenna
  • BOOT Button: Yes
  • RESET Button: Yes
  • Onboard RGB LED: Yes
  • Typical RGB GPIO: GPIO48

N16R8 Memory Configuration

The designation N16R8 indicates the memory configuration:

N16 = 16MB Flash

R8 = 8MB PSRAM

The large external PSRAM is particularly useful for applications requiring substantial working memory, including:

  • Graphical User Interfaces
  • Camera Frame Buffers
  • Image Processing
  • Audio Buffers
  • Machine Learning
  • Large Data Buffers
  • Networking Applications
  • Embedded Web Interfaces

Dual USB Type-C

The board provides two USB Type-C connectors.

UART / COM USB-C

Used for:

  • Firmware Uploading
  • Serial Communication
  • Serial Monitor
  • Board Power

Native USB / OTG USB-C

Connected to the ESP32-S3's native USB interface and can be used for:

  • USB Device Applications
  • USB OTG
  • USB Serial/JTAG
  • Debugging
  • Firmware Programming
  • HID Applications

WiFi

The ESP32-S3 includes integrated 2.4GHz WiFi supporting:

  • IEEE 802.11 b/g/n
  • Station Mode
  • Soft Access Point Mode
  • Station + Access Point Mode

Maximum 802.11n PHY data rate is up to 150Mbps.

Bluetooth 5 LE

The ESP32-S3 supports Bluetooth 5 Low Energy (BLE) and Bluetooth Mesh.

It supports BLE PHY rates including:

  • 125Kbps
  • 500Kbps
  • 1Mbps
  • 2Mbps

Note: ESP32-S3 supports Bluetooth Low Energy and does not support Bluetooth Classic.

Interfaces & Peripherals

ESP32-S3 provides a wide range of interfaces including:

  • GPIO
  • ADC
  • PWM
  • Capacitive Touch
  • UART
  • SPI
  • I²C
  • I²S
  • USB OTG
  • USB Serial/JTAG
  • SD/MMC
  • LCD Interface
  • Camera Interface
  • TWAI / CAN-Compatible Controller
  • Temperature Sensor

AI & Machine Learning

The ESP32-S3 includes vector instructions designed to accelerate neural-network and signal-processing workloads.

This makes it suitable for applications such as:

  • TinyML
  • Edge AI
  • Voice Processing
  • Image Processing
  • Object Recognition
  • Sensor Classification
  • Embedded Machine Learning

Programming Support

Compatible with popular ESP32 development environments including:

  • Arduino IDE
  • ESP-IDF
  • PlatformIO
  • MicroPython

Applications

Ideal for:

  • IoT Devices
  • Robotics
  • AIoT Projects
  • Smart Home Systems
  • Camera Projects
  • Embedded Displays
  • LVGL Interfaces
  • Audio Processing
  • Machine Learning
  • TinyML
  • Wireless Sensor Networks
  • Industrial Automation
  • USB Devices
  • Data Logging
  • Environmental Monitoring
  • Embedded Web Servers
  • MQTT Applications
  • University Projects
  • Advanced Prototyping

Dimensions

  • Board Length: Approx. 57mm
  • Board Width: Approx. 28mm
  • Header Pitch: 2.54mm

Important Notes

  • This is the N16R8 version with 16MB Flash and 8MB PSRAM.
  • Development board has 44 pins – 22 pins per side.
  • ESP32-S3 GPIO operates at 3.3V logic.
  • Do not apply 5V directly to GPIO pins.
  • WiFi operates on 2.4GHz only.
  • Bluetooth support is Bluetooth 5 LE, not Bluetooth Classic.
  • Some GPIO pins are used internally by the PSRAM, USB or other onboard functions and may not be freely available.
  • The two USB-C connectors have different functions; one is normally used for USB-to-UART while the other provides the ESP32-S3 native USB interface.

Package Includes

  • 1 × ESP32-S3 N16R8 Development Board
  • 2 × 22-Pin Male Headers
