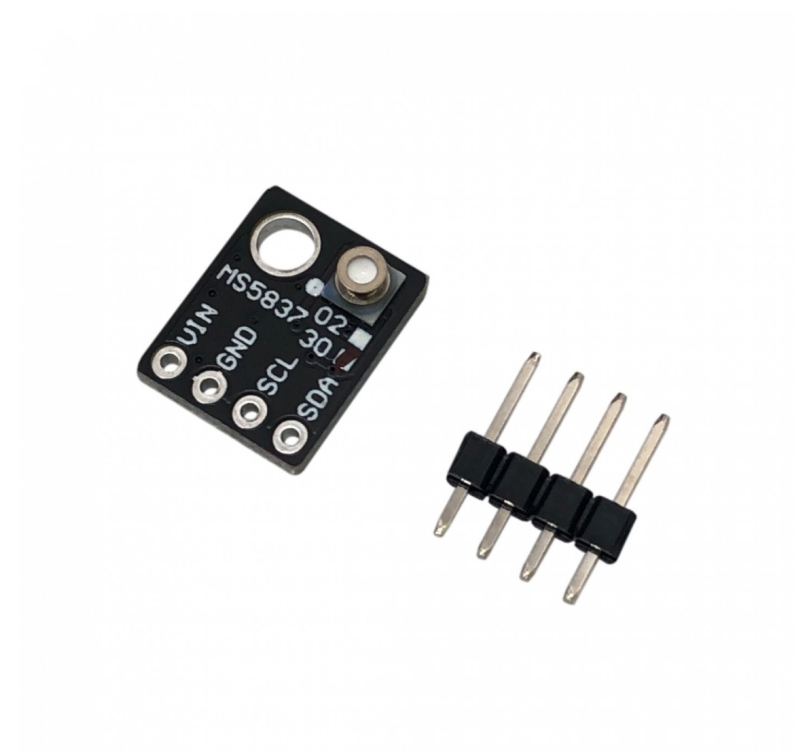

GY-MS5837-30BA Pressure and Temperature Sensor Module

$17.99
Quantity
Pickup available at Robot Pi Shop

A very compact barometer and temperature sensor in one. The sensor chip is designed to perform underwater measurements and is therefore waterproof on top (note: the PCB itself is not water resistant). The built-in level converter makes it suitable for use with both 3.3V and 5V development boards.

See the following page for an Arduino IDE library: MS5837

Specifications

General
Brand GY
Manufacturer model/SKU GY-MS5837-30BA
Features Temperature sensor
Pressure sensor (gas/liquid)
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 13
Dimension Y [mm] 11
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x76
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 8.2
Temperature sensor
Sensor (chip) MS5837-30BA
Minimum measuring range [°C] -20
Maximum measuring range [°C] 85
Smallest resolution [°C] 0.0022
Maximum resolution [bit] 24
Accuracy [±°C] 2.0
Pressure sensor
Sensor (chip) MS5837-30BA
Suitable medium Air
Water
(note: see note in product description)
Minimum measuring range [hPa] 0
Maximum measuring range [hPa] 30000
Smallest resolution [hPa] 0.2
Maximum resolution [bit] 24
Accuracy [±hPa] 50
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Sensor module
1x Male pin header 4p
