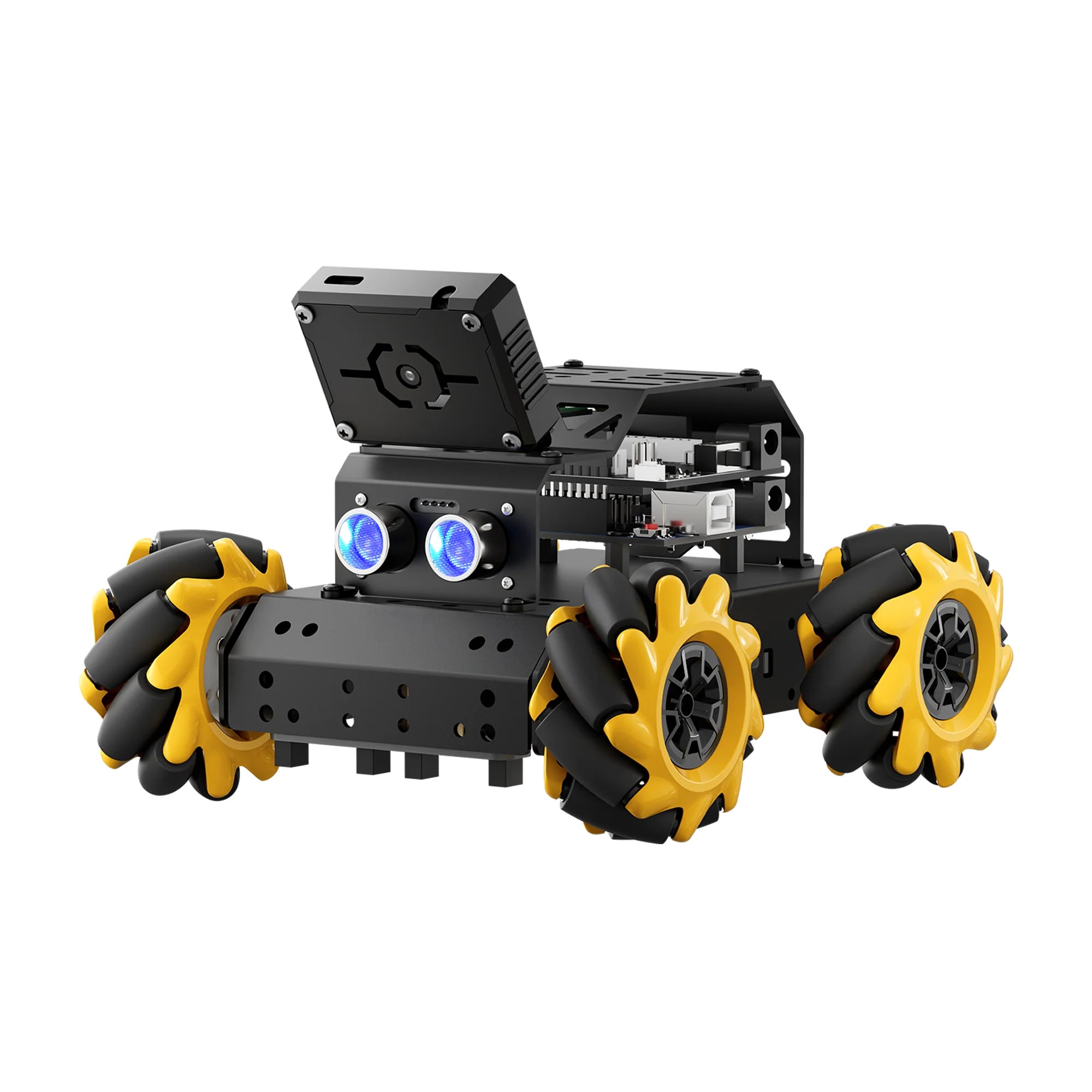

Hiwonder miniAuto is an entry-level AI vision robot car. It features 360-degree omnidirectional movement with mecanum wheels. miniAuto is also an arduino robotic car that features a main control unit fully compatible with the Arduino UNO R3 and its programming platform. miniAuto comes equipped with high-performance hardware, including the ESP32-S3 WiFi vision module, an ultrasonic sensor, a 4-channel line follower, and a Bluetooth module. Hiwonder miniAuto includes several reserved expansion ports and supports gripper upgrades, enabling users to easily engage in secondary development.
App Control
miniAuto features a built-in Bluetooth 4.0 module. By connecting to miniAuto's Bluetooth, the remote control robot car can be controlled via the app.
Arduino Compatibility
Based on the Arduino platform, the miniAuto can be programmed directly using the official Arduino IDE. As an open-source platform, miniAuto enables users to quickly develop and debug their projects.
Wireless Glove Control
The Wireless Glove is equipped with a built-in Bluetooth 4.0 module, enabling real-time control of miniAuto via wireless Bluetooth. The Wireless Glove allows for custom settings through programming. It also features an integrated IMU sensor, capable of detecting wrist joint rotations.
360° Omnidirectional Movement
The 360° omnidirectional Mecanum wheel allows for various motion modes and flexible adaptation to complex terrains and routes.
Glowy Ultrasonic Sensor
Equipped with a glowy ultrasonic sensor, miniAuto AI robot measures distance and provides real-time feedback with colored light.
4-Channel Line Follower
miniAuto is equipped with 4 infrared sensors that accurately detect line changes, enabling precise line-following functionality.
Built-in Bluetooth Module
The expansion board features a Bluetooth port that is compatible with Bluetooth 4.0 modules, allowing for easy connection and control of the robot.
Compatible with Arduino Control System
Hiwonder miniAuto's controller combines the Arduino UNO R3 main controller with an expansion board. miniAuto robot car is fully compatible with Arduino, supports 4-channel motor control, and can be expanded with various sensors and a Bluetooth module, providing robust functionality for implementing diverse creative projects.
Ranging and Obstacle Avoidance Based on Glowy Ultrasonic Sensor
Ultrasonic Ranging
Ultrasonic Obstacle Avoidance
Gripper Expansion for Unlimited Creativity
miniAuto arduino robot kit comes with a gripper, an S3 vision module, an ultrasonic sensor, and other sensors. It enables various creative applications, including remote-controlled transport, line-following transport, vision-based transport, and more.
Line Following
With the ultrasonic sensor, Hiwonder miniAuto can detect obstacles while following lines and transport them to a designated area.
Vision Transport
With the ESP32-S3 vision module, miniAuto can accurately identify blocks of a specified color, enabling it to autonomously grip and transport them.
Size
176*164*138mm
Weight
About 710g
Material
Metal bracket
Camera
2-magepixel
Power supply
2 * 3.7V 18650 battery (1800mAh)
Main control system
Arduino UNO R3 (ATmega328P)
Software
iOS/ Android App
Communication
Bluetooth
Motor type
HY3277-130 TT motor
Control method
App control/ Wireless glove control (sold separately)
Package size
30*17*12cm
Package weight
About 1.1kg
Product Parameters
Dimensional Diagram
miniAuto Standard Kit Packing List
miniAuto Advanced Kit Packing List
Hiwonder miniAuto AI Vision Robot
Advanced Kit
