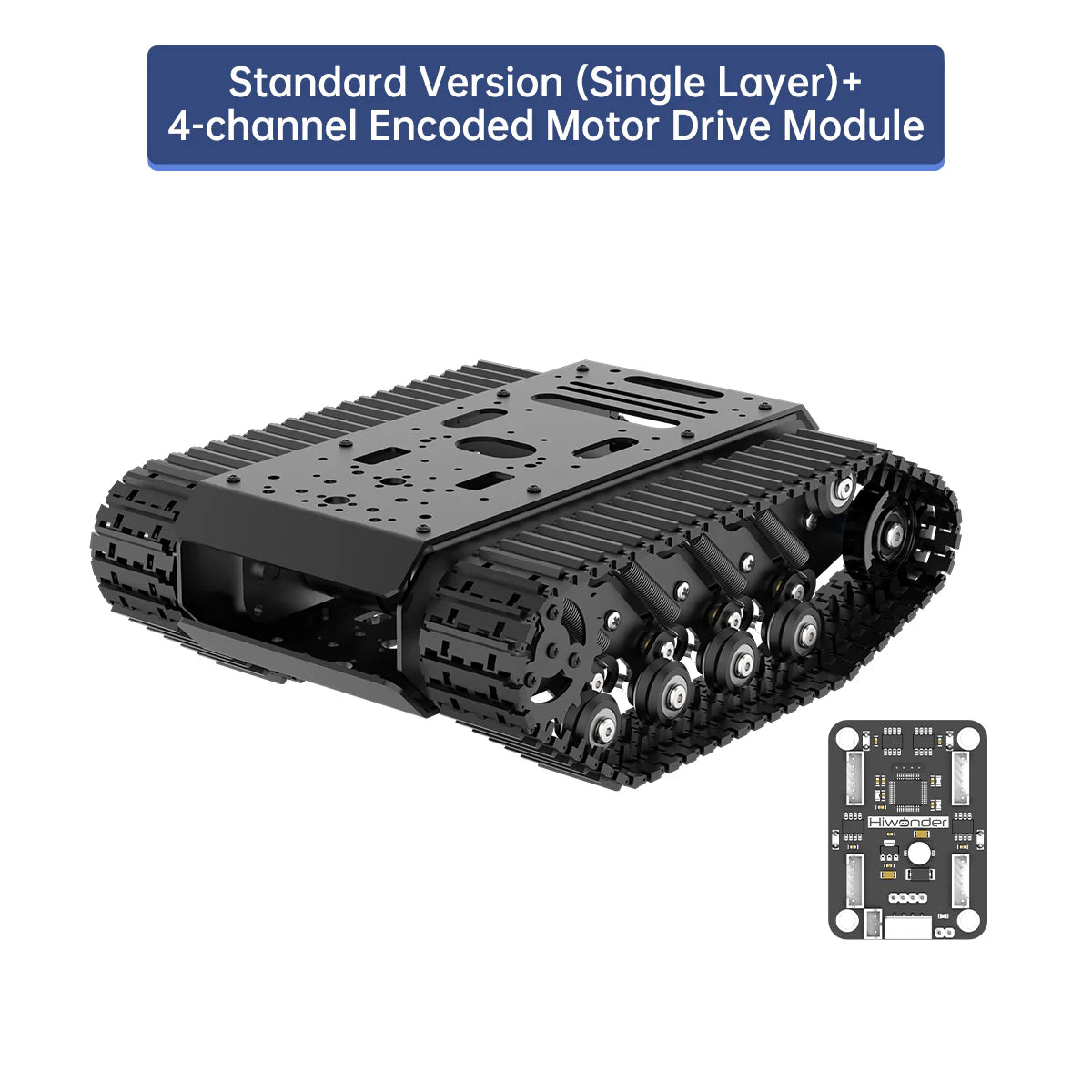

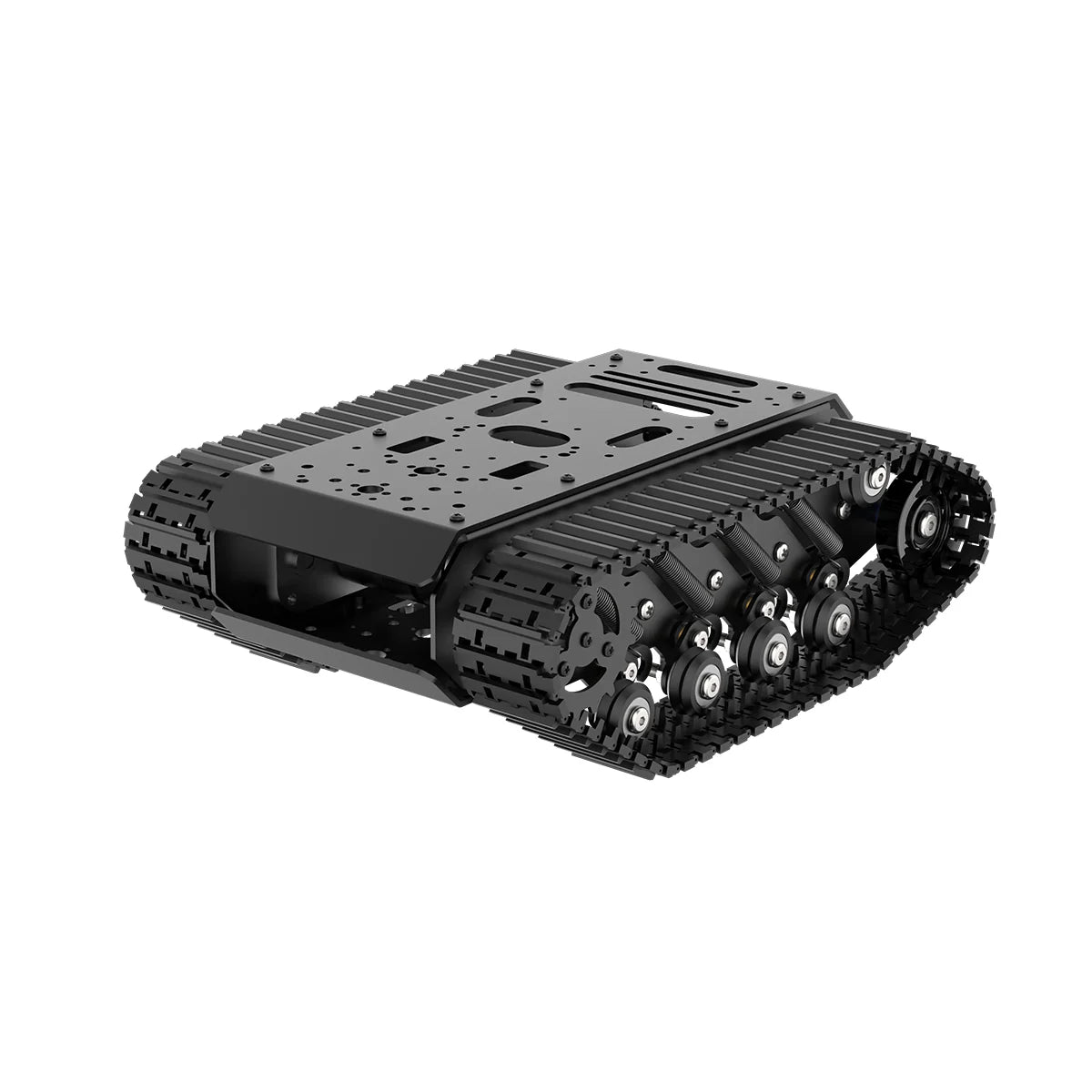

Hiwonder suspended shock absorbing tracked chassis is designed for all-terrain smart car DIY projects. It adopts 8-channel high-elasticity carbon steel tension spring, and high-durability micro bearings, ensuring remarkable shock-absorbing capabilities and optimal performance across all terrains. Furthermore, the tracked chassis is built with a full metal construction and provides ample expansion holes, allowing easy integration of depth cameras, controllers, sensors, and other components. This design facilitates user-friendly development and expansion possibilities!

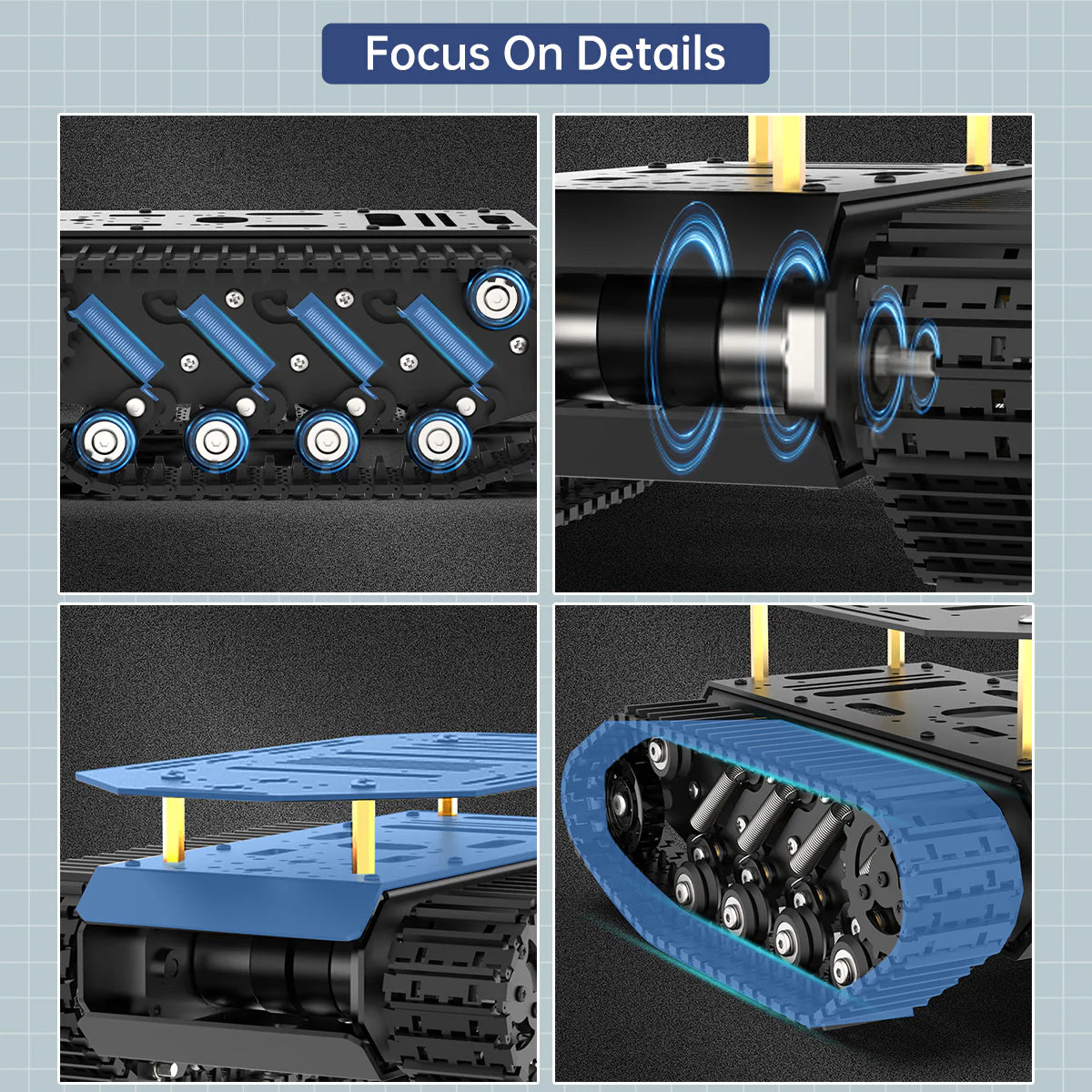

Focus On Details

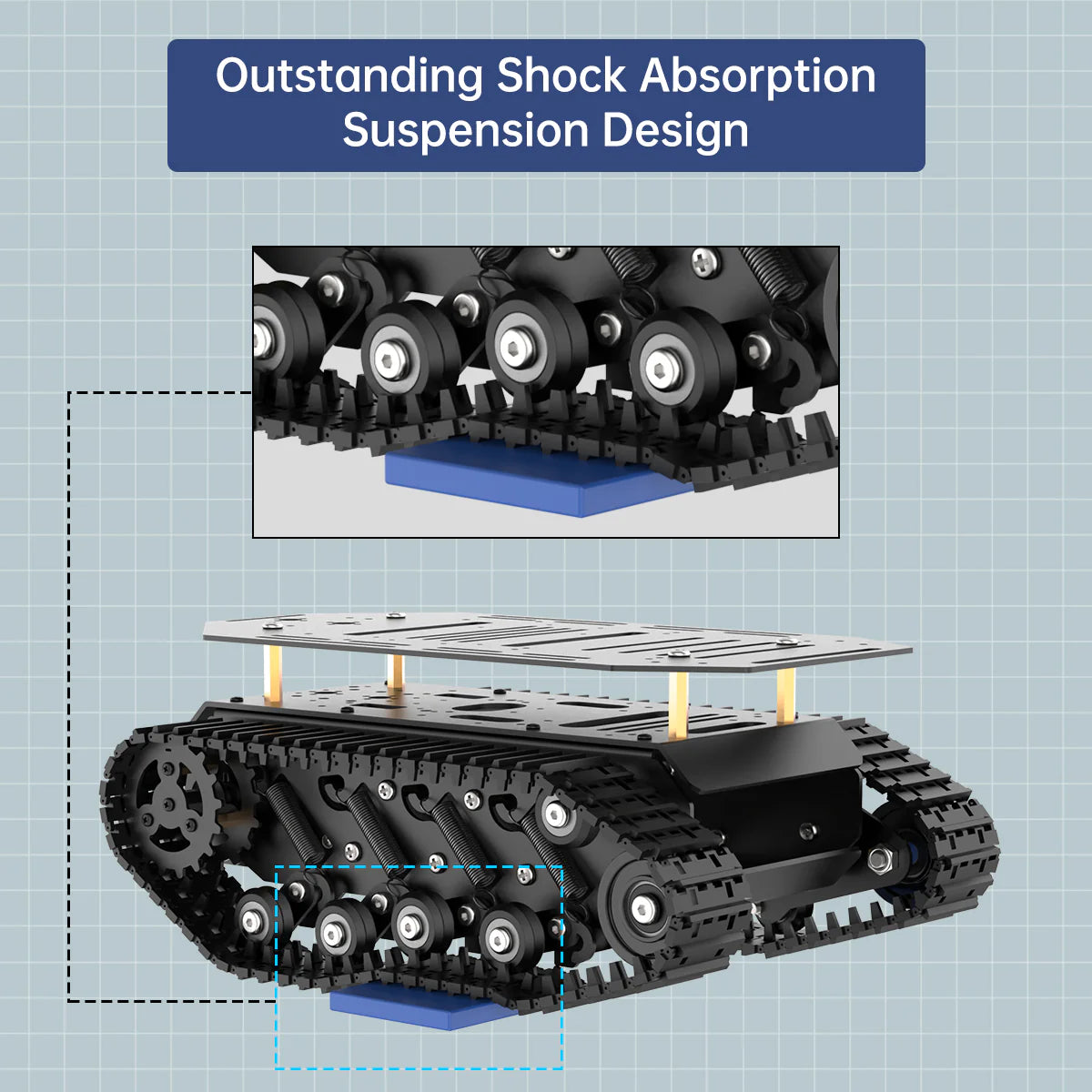

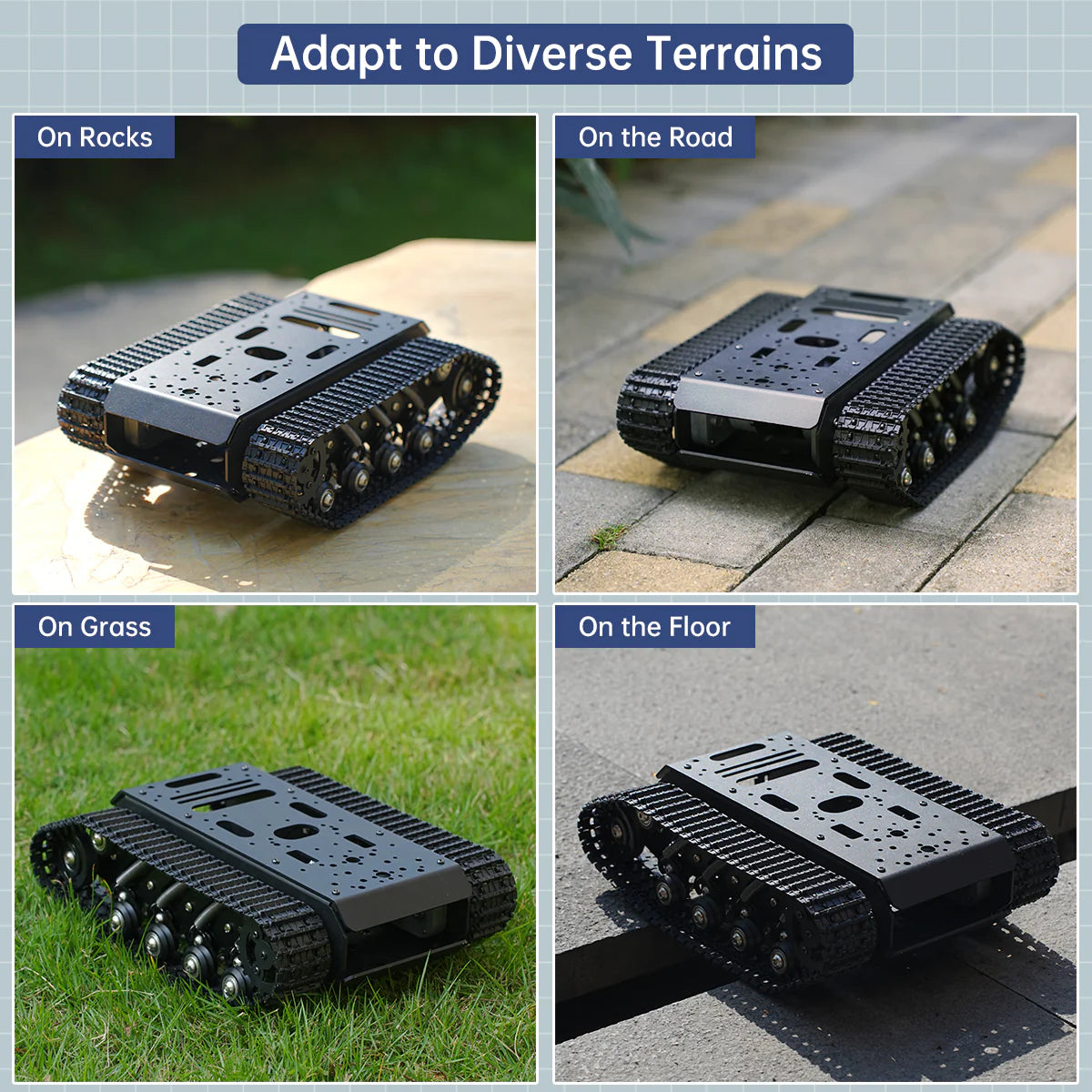

Outstanding Shock Absorption Suspension Design
It incorporates an 8-channel high-elasticity carbon steel tension spring and is equipped with micro bearings, ensuring agile maneuverability across diverse terrains.
High-Elasticity Carbon Steel Tension Spring High-Durability Micro Bearings
The track chassis is not only equipped with an 8-channel high-elasticity carbon steel tension spring, but also the incorporation of high-durability micro bearings enhances the chassis's exceptional shock absorption capability.
High-Performance DC Geared Motor
The chassis utilizes high-performance DC geared motors with a high-precision encoder, a rated voltage of 12V, delivering robust force, high precision, and resistance to interference.
Aluminium Alloy Body
The main body is crafted from aluminum alloy and undergoes an anodized surface treatment, resulting in an exquisite appearance. The top layer can be easily removed, facilitating DIY development.

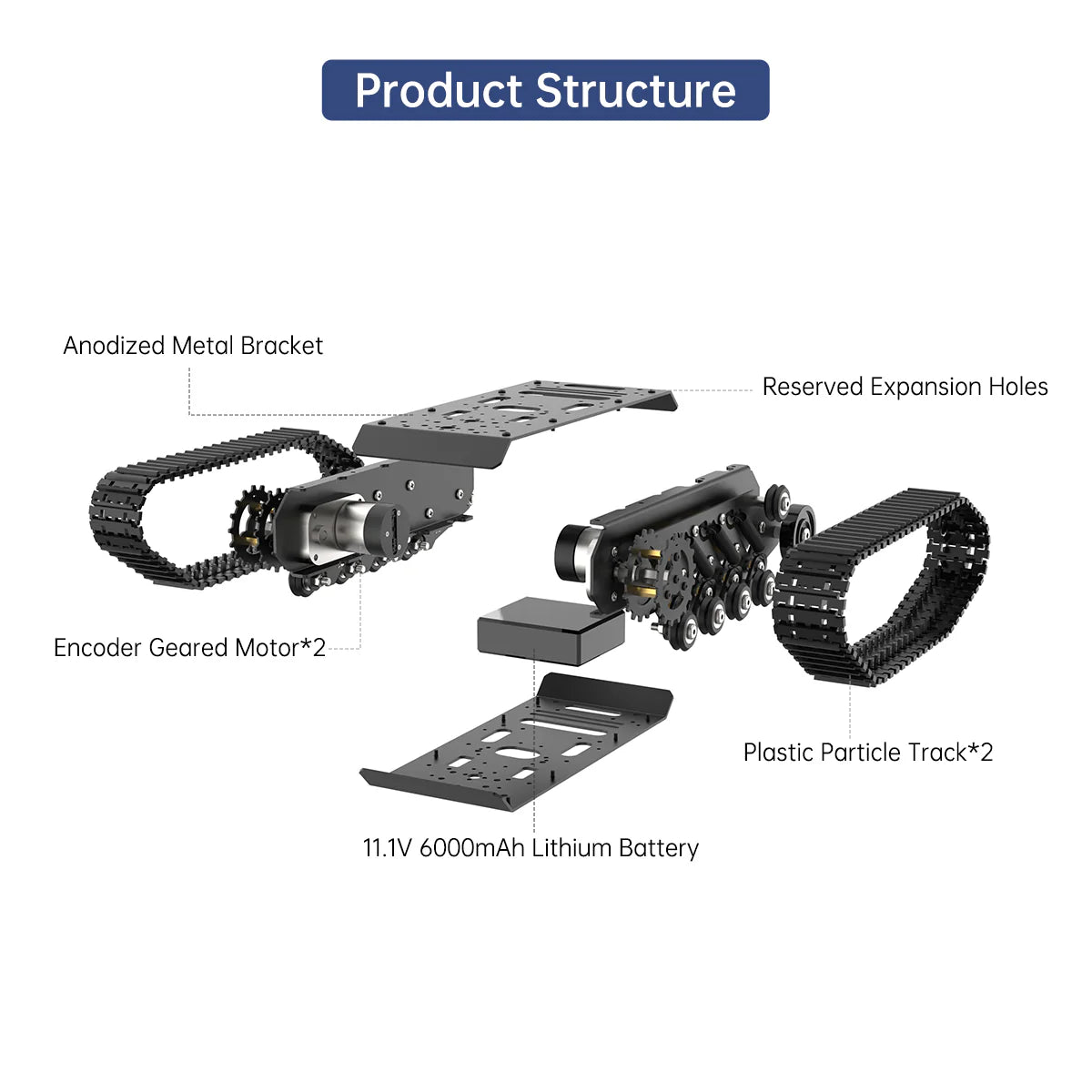

Dual-Layer Structure Ample Expansion Holes
The chassis features a dual-layer structure. The bottom layer includes designated space for the battery, along with numerous M3 and M4 holes for the attachment of various accessories, such as Raspberry Pi, Jetson Nano, microcontrollers, depth cameras, and sensors.
High-Quality Plastic Particle Track
The chassis incorporates high-quality plastic particles, and its dense bulged treads enhance friction, enabling smooth navigation across complex terrains.
Features
The chassis is equipped with high-performance DC geared motor, high-quality plastic particle track, high-elasticity carbon steel tension spring and high-durability micro bearings, ensuring agile maneuverability across diverse terrains.
The chassis adopts an all-metal aluminum alloy structure with anodized surface, which is beautiful and exquisite.
The suspended shock absorbing tracked chassis can expand electronic systems such as STM32 controller to achieve more creativity.
Control Connection Diagram
Parameters
Motor type
JGB3865 - 520R45 -12
Post-reduction speed
150+10rpm
Rated voltage
12V
Rated torque
0.15N.m
Voltage range
7-13V
Gear ratio
45:1
Port type
PH2.0-6PIN
Pre-reduction speed
6500rpm
Stall current
1.5A
Rated current
0.1A
Stall torque
0.5N.m
Encoder type
Hall encoder
Output axis
6mm-diameter D-shape eccentric shaft
Motor type
Permanent magnet brushed

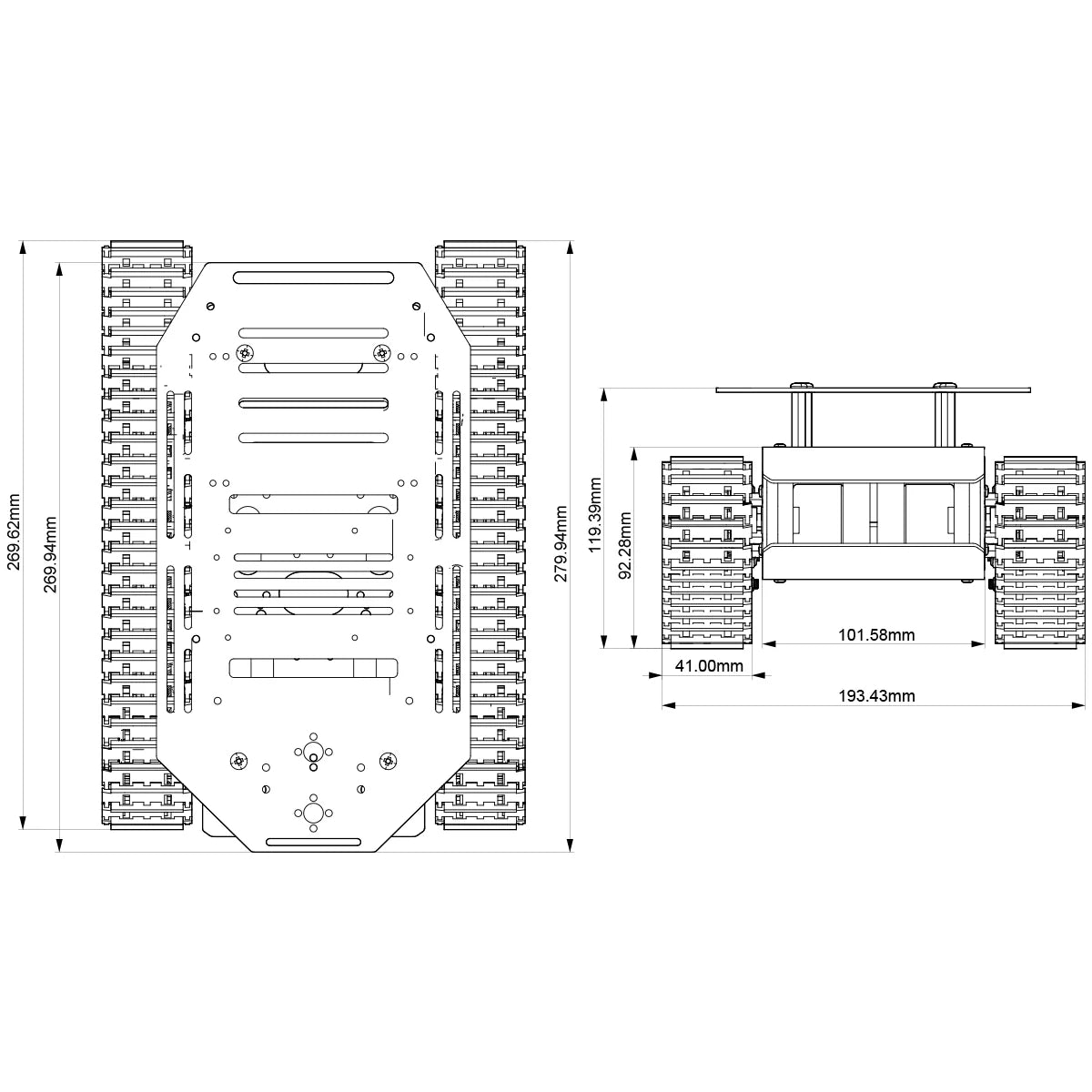

Parameters
Material
Aluminum alloy
Thickness
2mm
Width
143mm
Length
270mm
Weight
165g
Color
Black
Parameters
Battery model
11.1V6000mAh lithium battery
Plug
DC5.5*2.5 female/ SM-2P male
Battery capacity
6000mAh
Battery voltage
11.1V
Battery size
86*60*21mm
Charger
12.6V
