IP65 125KHz RFID Contactless Smart Card Reader

$39.99

Shipping calculated at checkout.

Quantity

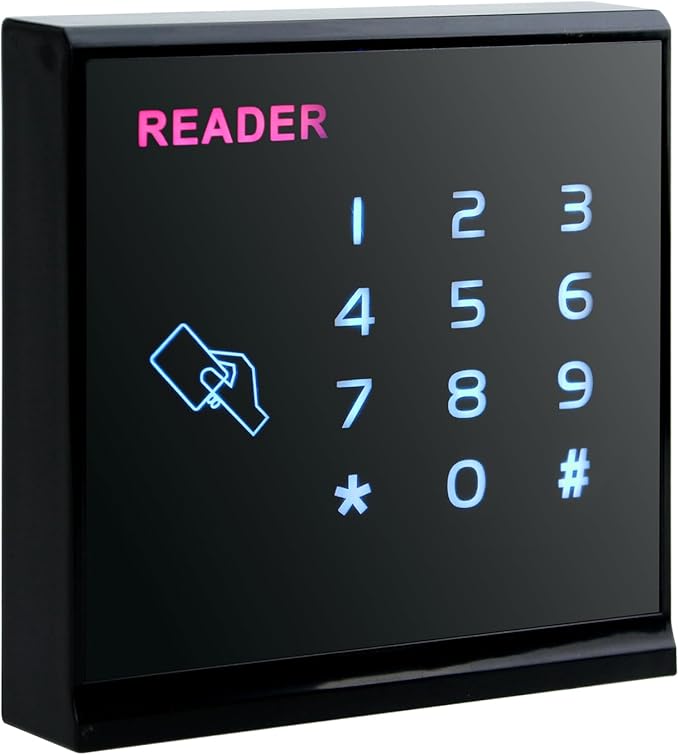

IP65 125kHz RFID Access Control Reader with Touch Keypad – Wiegand 26/34

The IP65 125kHz RFID Access Control Reader is a contactless card reader with an illuminated touch keypad, designed for secure door access and identification systems.

Featuring a waterproof and dust-resistant housing, 125kHz RFID technology, and Wiegand 26/34 communication, it is suitable for residential buildings, offices, warehouses, and commercial access control applications.

Key Features

  • 125kHz RFID Card Reader
  • Illuminated Touch Keypad for PIN entry
  • IP65 Protection: Dust-resistant and protected against water jets
  • Reading Distance: Approximately 5–15cm
  • Wiegand 26/34 Output
  • Operating Voltage: 9–16V DC
  • Low Power Consumption: Less than 50mA
  • Card Reading Speed: Less than 0.2 Seconds
  • Two-Color LED Indicator: Red for standby and green for successful card reading
  • Durable ABS Housing
  • Suitable for Indoor and Outdoor Installation

Technical Specifications

Parameter Specification
Product Type RFID Access Control Card Reader
RFID Frequency 125kHz
Protection Rating IP65
Operating Voltage 9–16V DC
Operating Current Less than 50mA
Card Reading Distance 5–15cm
Card Reading Speed Less than 0.2 Seconds
Communication Interface Wiegand 26/34
Operating Temperature -30°C to +85°C
Keypad Illuminated Touch Keypad
Indicator Red / Green LED
Housing Material ABS Plastic
Card Compatibility Compatible 125kHz RFID ID Cards

Applications

  • Door Access Control Systems
  • Residential Buildings
  • Office Security
  • Warehouse Access
  • Employee Identification
  • Commercial Buildings
  • RFID Security Systems

Installation & Compatibility

The reader connects to a compatible access control controller using the Wiegand 26/34 interface.

Typical connections include:

  • Power Supply (DC 9–16V)
  • Ground (GND)
  • Wiegand Data 0 (D0)
  • Wiegand Data 1 (D1)
  • LED and Buzzer Control Connections (Where Supported)

Important Notes

  • Requires a compatible Wiegand access control controller.
  • Designed for compatible 125kHz RFID cards.
  • Does not directly control an electric door lock without a suitable controller.
  • The IP65 rating applies when the device is installed correctly.
  • Confirm the wiring diagram before installation.

Package Includes

1 × IP65 125kHz RFID Access Control Reader with Touch Keypad
