JQX-13F(D)/2Z Electromagnetic Intermediate Relay

$4.99

Shipping calculated at checkout.

Quantity

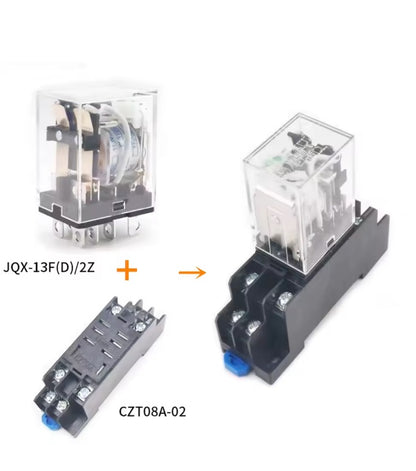

JQX-13F(D)/2Z Electromagnetic Relay – 24V DC, 10A, 8-Pin DPDT

The JQX-13F(D)/2Z Electromagnetic Relay is an industrial general-purpose relay designed for electrical switching, automation, and control applications.

Featuring a 24V DC coil, 8-pin configuration, and two changeover contacts (DPDT), the relay allows low-power control circuits to switch higher-power electrical loads.

Its transparent protective housing and built-in LED indicator make it suitable for industrial control panels, machinery, PLC systems, and automation projects.

Key Features

  • Model: JQX-13F(D)/2Z
  • Relay Type: Electromagnetic Intermediate Relay
  • Coil Voltage: 24V DC
  • Contact Configuration: DPDT (2 Form C)
  • Number of Pins: 8
  • Rated Contact Current: Up to 10A
  • Contact Voltage Rating: Up to 250V AC / 125V DC (Subject to Load Rating)
  • Built-In LED Status Indicator
  • Transparent Protective Housing
  • Plug-In Relay Design
  • Compatible with Suitable 8-Pin Relay Sockets

Technical Specifications

Parameter Specification
Model JQX-13F(D)/2Z
Product Type Electromagnetic Relay
Coil Voltage 24V DC
Contact Configuration DPDT (2 Form C)
Number of Contacts 2 Changeover
Number of Pins 8
Rated Contact Current Up to 10A
Maximum Contact Voltage 250V AC / 125V DC
LED Indicator Yes
Electrical Life Approximately 100,000 Operations
Mechanical Life Approximately 10,000,000 Operations
Dimensions 27.5 × 21.5 × 35.5mm
Mounting Plug-In Socket

Contact Configuration

The relay contains two independent changeover contact sets, each with:

  • COM: Common Terminal
  • NO: Normally Open Contact
  • NC: Normally Closed Contact

When the 24V DC coil is energized, the relay changes the state of both contact sets.

Applications

  • Industrial Automation
  • PLC Control Systems
  • Electrical Control Panels
  • Motor Control Circuits
  • Machinery and Equipment
  • Switching and Interlocking Circuits
  • Building Automation
  • Electronic Control Projects

Important Notes

  • The relay requires a 24V DC supply for its coil.
  • The 10A rating applies only under the manufacturer's specified load conditions.
  • DC switching capacity may be significantly lower than AC switching capacity.
  • Use a suitable relay driver circuit when controlling the coil from Arduino, ESP32, Raspberry Pi, or PLC transistor outputs.
  • A flyback diode or suitable suppression circuit is recommended for coil protection, taking account of the relay's indicator circuitry and polarity.
  • Verify the terminal arrangement and coil polarity before installation.
  • A compatible 8-pin socket may be required for mounting.

Package Includes

1 × JQX-13F(D)/2Z Electromagnetic Relay – 24V DC, 8-Pin

Relay socket is included only if specified in the selected product package.
