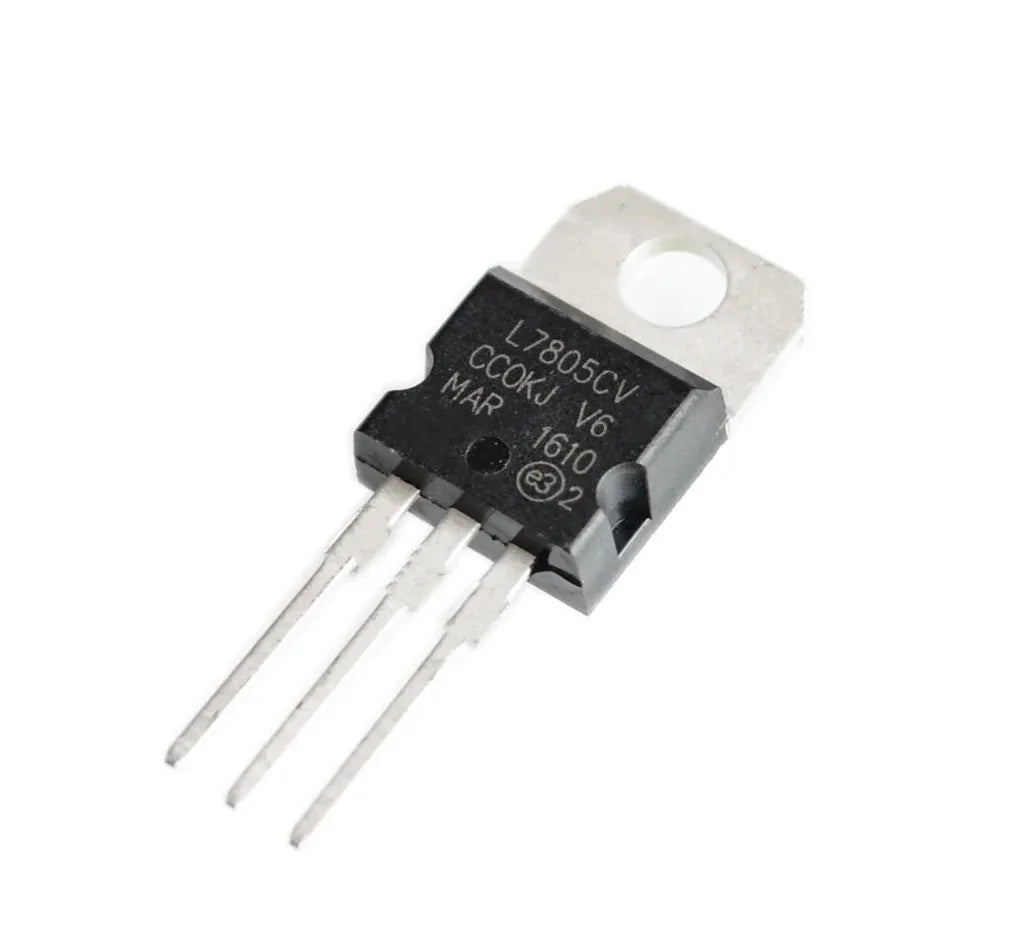

L7805CV 5V Positive Voltage Regulator IC – 1.5A TO-220
The L7805CV Positive Voltage Regulator IC is a three-terminal linear voltage regulator designed to provide a stable 5V DC output from a higher DC input voltage.
Part of the popular 78xx voltage regulator family, the L7805CV is widely used in electronic power supplies, microcontroller circuits, embedded systems, robotics, and DIY electronics projects.
Featuring built-in thermal overload protection, short-circuit protection, and safe operating area protection, the L7805CV offers a simple and reliable solution for generating a regulated 5V power rail.
Its TO-220 package allows a suitable heatsink to be installed for applications requiring higher output current.
Key Features
-
Fixed 5V DC regulated output
-
Up to 1.5A output current, subject to adequate cooling
- Positive linear voltage regulator
- Wide input voltage capability
- Three-terminal design
- Built-in thermal overload protection
- Internal short-circuit current limiting
- Output transistor safe operating area protection
- Low external component count
- TO-220 package for heatsink mounting
- Suitable for electronic power supplies and embedded systems
Technical Specifications
| Parameter |
Specification |
| Product Name |
L7805CV Voltage Regulator |
| Part Number |
L7805CV |
| Regulator Type |
Positive Linear Voltage Regulator |
| Regulator Family |
78xx Series |
| Output Voltage |
5V DC Fixed |
| Maximum Output Current |
1.5A, with adequate thermal management |
| Maximum Input Voltage |
35V DC |
| Recommended Input Voltage |
Approximately 7V–12V for common applications |
| Typical Dropout Voltage |
Approximately 2V, load dependent |
| Package Type |
TO-220 |
| Number of Pins |
3 |
| Output Polarity |
Positive |
| Thermal Protection |
Yes |
| Short-Circuit Protection |
Yes |
| Current Limiting |
Internal |
| Heatsink Support |
Yes |
| Cooling Requirement |
Depends on input voltage, load current, and ambient temperature |
Note: The 1.5A rating is not guaranteed under all operating conditions. Actual available current depends on input voltage, power dissipation, heatsinking, and the specific manufacturer's datasheet.
Pin Configuration
When viewing the front of a standard TO-220 L7805CV package with the printed face toward you and the leads pointing downward:
| Pin |
Name |
Function |
| 1 |
INPUT |
Positive DC Input Voltage |
| 2 |
GND |
Ground |
| 3 |
OUTPUT |
Regulated +5V DC Output |
The metal mounting tab is typically connected to ground for this device family.
Verify the exact manufacturer's datasheet before installation.
How It Works
The L7805CV uses linear voltage regulation to maintain a fixed 5V output when supplied with a sufficiently high input voltage.
For example:
- 9V input → 5V regulated output
- 12V input → 5V regulated output
- 15V input → 5V regulated output
The input voltage must remain high enough for the regulator to maintain regulation.
Unlike a switching buck converter, the L7805CV dissipates the excess voltage as heat.
Power Dissipation and Heat Calculation
The approximate power dissipated by the regulator is:
Power Dissipation (W) = (Input Voltage − 5V) × Load Current (A)
Examples
| Input Voltage |
Output Current |
Approximate Heat Dissipation |
| 9V |
0.2A |
0.8W |
| 9V |
0.5A |
2W |
| 12V |
0.5A |
3.5W |
| 12V |
1A |
7W |
| 15V |
1A |
10W |
Important: At 12V input and 1A output, approximately 7W is dissipated as heat. A suitable heatsink and thermal design are essential. Without adequate cooling, the regulator may overheat and enter thermal shutdown.
For applications with a large difference between input and output voltage, a switching buck converter is generally more efficient.
Typical Connection
| L7805CV Pin |
Connection |
| INPUT |
Positive DC Supply |
| GND |
Common Ground |
| OUTPUT |
Regulated +5V Load |
Recommended External Capacitors
For a common L7805CV application, use the capacitor values recommended in the manufacturer's datasheet.
Typical values include:
| Component |
Typical Value |
Purpose |
| Input Bypass Capacitor |
0.33µF |
Improves input stability |
| Output Bypass Capacitor |
0.1µF |
Improves output transient response |
Capacitors should be placed close to the regulator terminals. Additional bulk capacitance may be useful depending on wiring length and load characteristics.
Applications
- Regulated 5V DC Power Supplies
- Arduino and Microcontroller Circuits
- Embedded Electronics
- Robotics Projects
- Sensor Power Supplies
- Logic Circuit Power Regulation
- Electronic Prototyping
- DIY Power Supply Circuits
- Educational Electronics
- Industrial Control Circuit Prototypes
- Voltage Regulation Experiments
- Electronic Repair and Replacement
Important Notes
-
The L7805CV provides a fixed 5V output, not an adjustable voltage output.
- The regulator is designed to reduce a higher DC input voltage to 5V.
- It cannot increase a lower input voltage to 5V.
- The maximum input voltage rating is not a recommended continuous operating voltage for every load condition.
- The regulator requires sufficient input-to-output voltage headroom to maintain regulation.
- Output current is limited by thermal conditions and the device's internal protection circuitry.
- The TO-220 package can become very hot during operation.
- A heatsink is recommended when power dissipation is significant.
- The regulator is less efficient than a switching converter when the input voltage is substantially higher than 5V.
- The device does not provide electrical isolation.
- It should not be connected directly to AC mains voltage.
- Use suitable external capacitors and observe correct pin orientation.
- For powering high-current 5V devices, consider a properly rated DC-DC buck converter instead.
Package Includes
1 × L7805CV 5V Positive Voltage Regulator IC – TO-220
