LCD03 Smart Battery Display

$19.99

Shipping calculated at checkout.

Quantity

JBD-LCD03 Smart Battery Monitor – 1.8″ Color TFT Display, UART/RS485 for Lithium Battery BMS

The JBD-LCD03 Smart Battery Display is a compact digital monitoring screen designed for compatible JBD smart battery management systems (BMS) used in lithium battery packs.

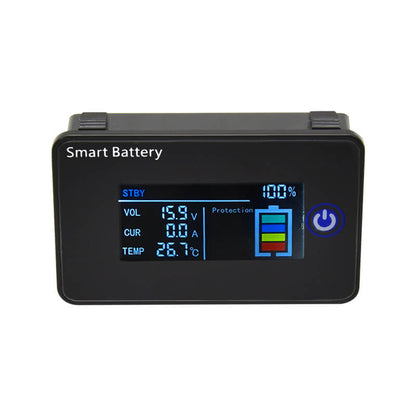

Featuring a 1.8-inch TFT color display, the LCD03 allows users to view battery information such as voltage, current, state of charge (SOC), and temperature directly from a compatible BMS.

The display is designed for lithium battery systems and supports UART or RS485 communication, depending on the selected hardware version.

With its compact design, easy-to-read color interface, and convenient battery monitoring functions, the JBD-LCD03 is suitable for lithium battery packs, energy storage systems, electric mobility applications, portable power systems, and battery monitoring projects.

Key Features

  • Model: JBD-LCD03 / LCD03
  • Product Type: Smart Battery Monitoring Display
  • Display Size: 1.8 Inches
  • Display Technology: TFT Color LCD
  • Display Color Depth: 262K Colors
  • Operating Voltage: 10–90V DC, as specified for the product
  • Battery Compatibility: Designed for 3S–24S Lithium Battery Systems
  • Communication Interface: UART or RS485, Depending on Version
  • Battery Voltage Monitoring
  • Battery Current Monitoring
  • Battery State of Charge (SOC) Display
  • Battery Temperature Display
  • Graphical Battery Level Indicator
  • Compact Installation Design
  • Suitable for Compatible JBD Smart BMS Systems

Technical Specifications

Parameter Specification
Model JBD-LCD03
Product Name Smart Battery Display
Display Type TFT Color LCD
Display Size 1.8 Inches
Display Color Depth 262K Colors
Operating Voltage 10–90V DC
Supported Battery Configuration 3S–24S Lithium Battery Packs, Subject to BMS Compatibility
Battery Chemistry Depends on Connected BMS
Communication Interface UART or RS485
Interface Selection Hardware Variant Dependent
Battery Voltage Display Yes, with Compatible BMS
Battery Current Display Yes, with Compatible BMS
State of Charge Display Yes, with Compatible BMS
Battery Temperature Display Yes, with Compatible BMS
Battery Level Indicator Graphical
Data Source Compatible Smart BMS
Standalone Battery Measurement No
Installation Type Battery System / Equipment Panel

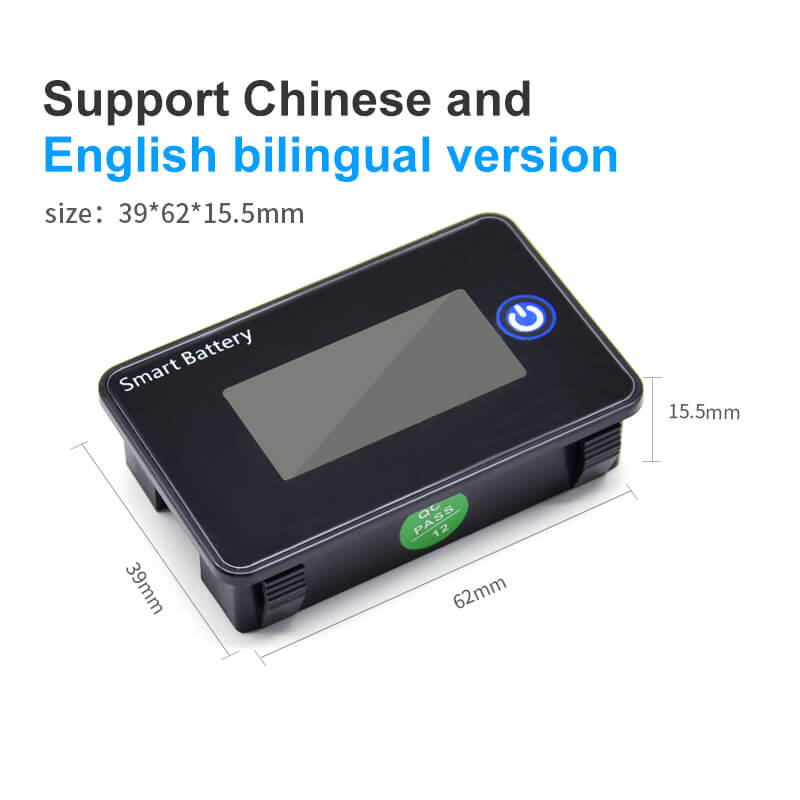

Language Support Chinese and English, According to Product Illustration
Dimensions Verify Supplied Version

Important: The JBD-LCD03 is a battery information display, not a standalone battery monitoring sensor. Its displayed values are obtained from a compatible smart BMS.

Battery Monitoring Functions

The JBD-LCD03 provides a convenient visual interface for monitoring battery system information.

Battery Voltage

Displays the battery voltage reported by the connected BMS.

This helps users monitor the electrical condition of the battery pack.

Battery Current

Displays charging or discharging current information supplied by the BMS.

The displayed current can help users understand battery operating conditions.

State of Charge (SOC)

Shows the estimated remaining battery charge as a percentage.

The accuracy of this value depends on the BMS measurement and SOC estimation method.

Battery Temperature

Displays temperature information received from the BMS, where supported.

This allows users to monitor temperature readings without connecting a separate external display.

Battery Level Indicator

A graphical battery icon provides a quick visual representation of the estimated remaining charge.

UART and RS485 Communication

The JBD-LCD03 is available with different communication interface options.

UART Version

The UART version communicates with a compatible JBD smart BMS using a serial communication interface.

It is suitable for battery management systems equipped with the corresponding supported UART display connection.

RS485 Version

The RS485 version communicates with a compatible BMS through an RS485 interface.

RS485 is commonly used in industrial and battery monitoring systems because of its differential signaling and suitability for electrically noisy environments.

Interface Comparison

Feature UART Version RS485 Version
Communication Serial UART Differential RS485
Typical Connection Compatible BMS UART Port Compatible BMS RS485 Port
External Transceiver Depends on System Usually Integrated into RS485 Equipment
Suitable For Direct Compatible BMS Connection Compatible RS485 Battery Systems
Interchangeable No No

Important: UART and RS485 are different electrical interfaces. They cannot be connected interchangeably without appropriate interface hardware and protocol compatibility.

The display version should be selected according to the communication interface supported by the battery management system.

Battery Compatibility

The LCD03 is designed for lithium battery systems using compatible JBD smart BMS hardware.

The product information specifies support for battery configurations from 3S to 24S, subject to the connected BMS and display version.

Common Battery Applications

  • Lithium-Ion Battery Packs
  • Lithium Iron Phosphate (LiFePO4) Battery Systems
  • Electric Bicycle Battery Packs
  • Electric Scooter Battery Systems
  • Portable Energy Storage
  • Battery-Powered Equipment
  • Custom Lithium Battery Systems

Compatibility depends on the BMS model, firmware, communication protocol, and battery configuration.

The stated 10–90V supply range must also be respected.

Installation and Connection

The LCD03 is intended to communicate with a compatible battery management system.

Typical System Components

  • Lithium Battery Pack
  • Compatible JBD Smart BMS
  • JBD-LCD03 Display
  • Correct UART or RS485 Connection Cable
  • Suitable Power Connection, According to Display Version

General Installation Procedure

  1. Identify the model and communication interface of the installed JBD BMS.
  2. Confirm whether the LCD03 version uses UART or RS485.
  3. Verify the connector pinout and supply voltage requirements.
  4. Connect the display using the correct cable and wiring arrangement.
  5. Power the battery system according to the manufacturer's instructions.
  6. Confirm that battery information appears on the display.

Important: The exact connector pinout must be verified before wiring. Incorrect connections may damage the display or BMS.

Applications

  • Lithium Battery Monitoring
  • JBD Smart BMS Systems
  • Electric Bicycles
  • Electric Scooters
  • Battery Energy Storage Systems
  • Portable Power Stations
  • Battery-Powered Equipment
  • DIY Lithium Battery Packs
  • Electric Mobility Projects
  • Battery Maintenance and Diagnostics
  • Industrial Battery Systems
  • Educational Battery Management Projects

Important Notes

  • The JBD-LCD03 is a battery monitoring display, not a battery management system.
  • A compatible smart BMS is required to provide measurement data.
  • The display does not independently measure battery voltage, current, or temperature.
  • The display is not a battery charger or charge controller.
  • UART and RS485 versions are not electrically interchangeable.
  • Confirm the selected communication interface before purchasing.
  • The product information specifies a 10–90V DC operating range.
  • The supported 3S–24S configuration does not guarantee compatibility with every battery chemistry, BMS model, or pack voltage.
  • Battery data accuracy depends on the connected BMS.
  • The LCD03 should not be assumed compatible with third-party BMS devices solely because they provide UART or RS485.
  • The UART interface may share a connection with the Bluetooth interface on certain compatible JBD BMS configurations; simultaneous operation must be verified.
  • The exact communication protocol, cable pinout, and connector type depend on the hardware version.
  • Do not connect the display directly to battery terminals unless the manufacturer's wiring instructions explicitly permit it.
  • Lithium battery systems must include appropriate electrical protection and a correctly configured BMS.
  • Disconnect power before installation or wiring modifications.

Package Includes

1 × JBD-LCD03 Smart Battery Display
