LCR-T7 Transistor Tester

$24.99

Shipping calculated at checkout.

Quantity

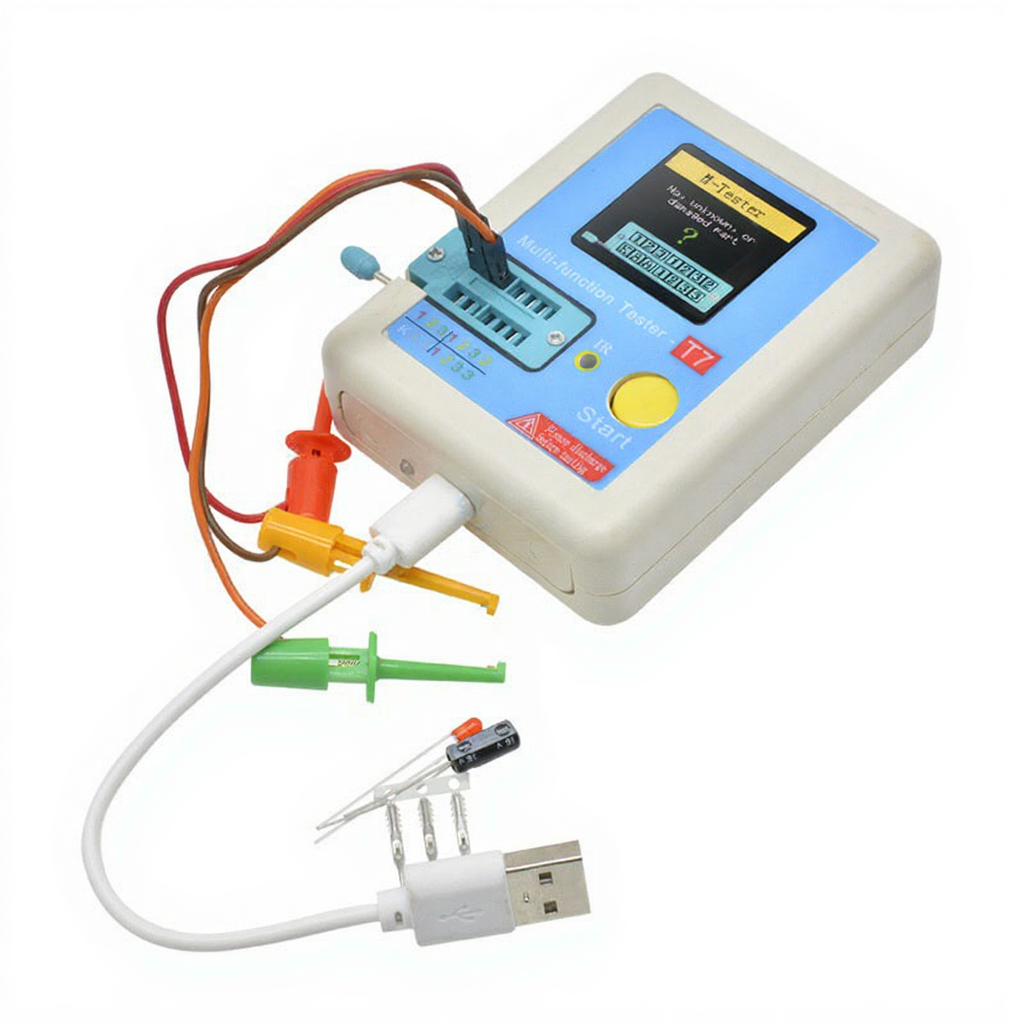

LCR-T7 Multifunction Transistor Tester – TFT Display, ESR Meter & Electronic Component Analyzer

The LCR-T7 Multifunction Transistor Tester is a compact, rechargeable electronic component testing instrument designed to identify and measure a wide range of semiconductor and passive electronic components.

Featuring a color TFT display, automatic component identification, and a ZIF (Zero Insertion Force) test socket, the LCR-T7 allows users to quickly test transistors, resistors, capacitors, inductors, diodes, MOSFETs, and other supported electronic components.

The tester automatically identifies many component types, detects transistor pin configurations, and displays relevant electrical parameters, making it a practical tool for electronics technicians, students, engineers, repair workshops, and DIY electronics enthusiasts.

Powered by a built-in rechargeable lithium battery, the LCR-T7 offers convenient portable operation for electronic testing and troubleshooting.

Key Features

  • Model: LCR-T7
  • Multifunction electronic component tester
  • Automatic component identification
  • Color TFT display
  • Tests NPN and PNP bipolar transistors
  • Tests N-channel and P-channel MOSFETs
  • Supports JFET identification on compatible versions
  • Measures resistance and capacitance
  • Measures inductance within supported ranges
  • Tests standard diodes and LEDs
  • Identifies transistor pin configurations
  • Measures transistor DC current gain (hFE)
  • Measures transistor base-emitter voltage (VBE)
  • Measures MOSFET gate threshold voltage on supported devices
  • Measures capacitor equivalent series resistance (ESR) where supported
  • Automatic test function
  • ZIF component testing socket
  • External test leads for convenient connections
  • Built-in rechargeable lithium battery
  • Compact and portable design

Technical Specifications

Parameter Specification
Product Name LCR-T7 Multifunction Transistor Tester
Model LCR-T7
Instrument Type Electronic Component Analyzer
Display Color TFT
Component Identification Automatic
Resistance Measurement Supported
Capacitance Measurement Supported
Inductance Measurement Supported
Diode Testing Supported
LED Testing Supported
NPN / PNP Transistor Testing Supported
MOSFET Testing Supported
JFET Testing Supported on Compatible Versions
Thyristor Testing Supported for Certain Devices
Transistor hFE Measurement Supported
Transistor Pin Identification Supported
Capacitor ESR Measurement Supported on Compatible Versions
Test Socket ZIF Socket
External Test Connections Test Leads
Power Supply Built-in Rechargeable Lithium Battery
Charging Interface USB, Connector Type Variant Dependent
Approximate Dimensions 90 × 70 × 24mm
Operation Automatic Test
Measurement Ranges Depend on Hardware and Firmware Version

Note: Exact measurement ranges, accuracy, and supported component types vary between LCR-T7 hardware and firmware versions.

Supported Electronic Components

1. Bipolar Junction Transistors (BJT)

The LCR-T7 can identify and test common NPN and PNP transistors.

Typical information displayed includes:

  • Transistor type
  • Base, collector, and emitter pin identification
  • DC current gain (hFE)
  • Base-emitter voltage (VBE)

This is useful for checking transistor functionality and identifying unknown transistor pinouts.

2. MOSFET Transistors

The tester can identify supported N-channel and P-channel MOSFETs.

Depending on the device and firmware, the display may show:

  • MOSFET type
  • Gate, drain, and source pin identification
  • Gate threshold voltage
  • Additional electrical parameters supported by the tester

The tester is intended for low-power component identification and is not a substitute for full power MOSFET characterization.

3. Resistors

The LCR-T7 can measure resistance values and identify resistive components.

Typical uses include:

  • Checking resistor values
  • Identifying unmarked resistors
  • Testing basic circuit components
  • Comparing measured and nominal resistance values

4. Capacitors

The tester can measure capacitance and, on supported versions, additional capacitor parameters such as equivalent series resistance.

This is useful for:

  • Checking capacitor values
  • Identifying unknown capacitors
  • Basic capacitor troubleshooting
  • Educational component testing

Important: Capacitors must be fully discharged before testing.

5. Inductors

The LCR-T7 can measure inductance within its supported measurement range.

Applications include testing small inductors, coils, and electronic components used in filtering and power circuits.

Measurement reliability depends on inductance value, winding resistance, and the instrument's supported range.

6. Diodes and LEDs

The tester can identify common semiconductor diodes and LEDs.

Depending on the component, it may display:

  • Diode polarity
  • Forward voltage
  • Device configuration

Some LEDs may illuminate briefly during testing.

7. Thyristors and Other Semiconductors

Certain thyristors, triacs, and other semiconductor devices may be recognized when their electrical characteristics fall within the tester's supported limits.

Not every semiconductor can be reliably identified or tested.

Automatic Component Identification

The LCR-T7 simplifies component testing through automatic detection.

How It Works

  1. Insert the electronic component into the ZIF socket or connect it using suitable test leads.
  2. Secure the component connections.
  3. Press the test button.
  4. The tester analyzes the connected component.
  5. The TFT display shows the detected component type and available measurement values.

For supported three-terminal devices, the tester can automatically determine the pin arrangement.

This eliminates much of the manual setup required when using separate measurement instruments.

ZIF Test Socket

The integrated ZIF socket allows components to be inserted and removed without applying excessive mechanical force.

Advantages

  • Convenient testing of through-hole components
  • Quick component replacement
  • Reduced risk of bending component leads
  • Suitable for repeated component testing
  • Easy connection of resistors, capacitors, diodes, and transistors

External test leads can be used when a component cannot be inserted directly into the socket.

Color TFT Display

The LCR-T7 includes a color display designed to present measurement results clearly.

Depending on the detected component, the display can show:

  • Component type
  • Electrical measurement values
  • Semiconductor symbols
  • Pin configuration
  • Transistor parameters
  • Battery status

The graphical interface helps users interpret component measurements without manually identifying every terminal.

Rechargeable Battery

The tester features a built-in rechargeable lithium battery for portable operation.

This makes it suitable for electronics workbenches, classrooms, repair environments, and field troubleshooting.

Recharge the tester using a suitable USB power source and the correct cable for the supplied version.

Applications

  • Electronic Component Identification
  • Transistor Testing
  • MOSFET Identification
  • Resistor Measurement
  • Capacitor Testing
  • Inductor Measurement
  • Diode and LED Testing
  • Electronics Repair
  • PCB Troubleshooting
  • Electronics Education
  • University Laboratories
  • STEM Training
  • Arduino and Robotics Workshops
  • DIY Electronic Prototyping
  • Component Sorting and Verification

Important Notes

  • The LCR-T7 is intended for testing disconnected, unpowered electronic components.
  • Do not connect the tester directly to live electrical circuits.
  • Always discharge capacitors before testing.
  • Do not connect charged batteries or external voltage sources to the component test terminals.
  • The tester is not a general-purpose voltmeter for live circuit measurements.
  • Component identification depends on the electrical characteristics of the connected device.
  • Certain semiconductor devices may not be recognized correctly.
  • Measurement accuracy and supported ranges depend on the hardware and firmware version.
  • In-circuit measurements may be affected by surrounding components and should generally be avoided.
  • ESR measurements are intended for basic component evaluation and do not replace professional impedance analysis.
  • The tester is not a substitute for an oscilloscope, precision LCR meter, or professional semiconductor parameter analyzer.
  • Use the correct charging cable and power source.
  • Keep the tester away from excessive moisture, dust, and mechanical impact.

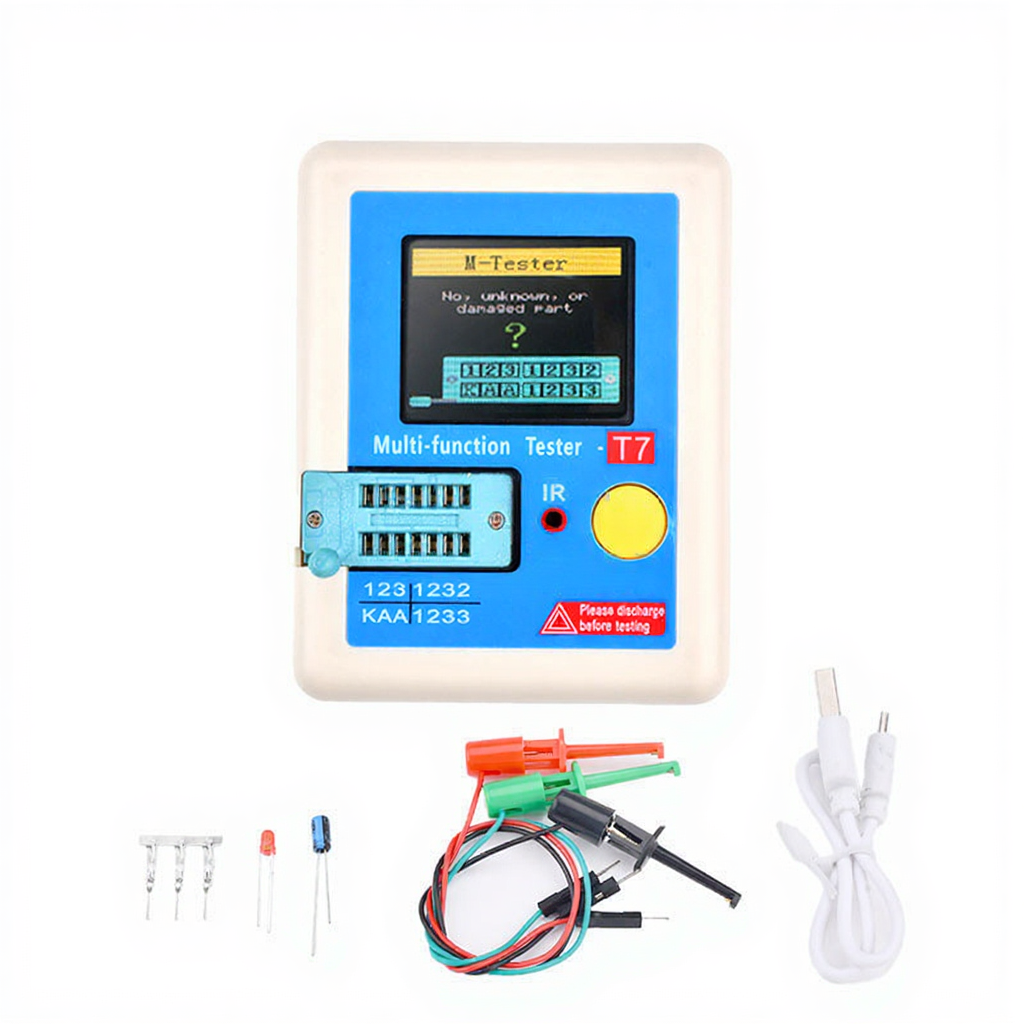

Package Includes

  • 1 × LCR-T7 Multifunction Transistor Tester
  • 1 × Set of Component Test Leads / Clips
  • 1 × USB Charging Cable
