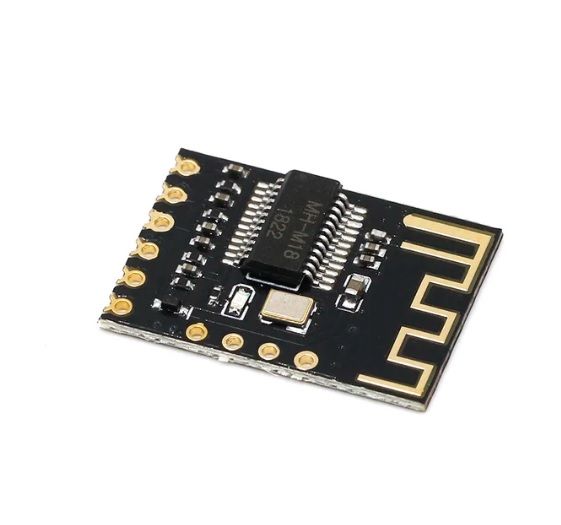

M18 MP3 Decoder Bluetooth Module

$1.99
Quantity

MH-M18

Pins:

  • KEY : Button control terminal (4 button functions, additional resistance required)
  • MUTE: Mute control terminal (output high level 3.3V when muting, output low level during playback)
  • VCC: Positive 5V power supply (Lithium battery 3.7V power supply requires short circuit diode)
  • GND: negative power supply
  • L: Left channel output
  • R: Right channel output

Features:

  • Control terminal: used to control the power amplifier board. When muting, MUTE outputs a high level of 3.3V, and outputs a low level during playback.
  • KEY button control: This function requires additional connection of resistors and buttons.
  • Volume power off function: The default output is 100% volume. Press the button to control the volume increase and decrease. If the control volume is less than 15%, the volume output will be 15% after re-powering; if the control volume is greater than 15%, the original volume will remain unchanged after power-on.
