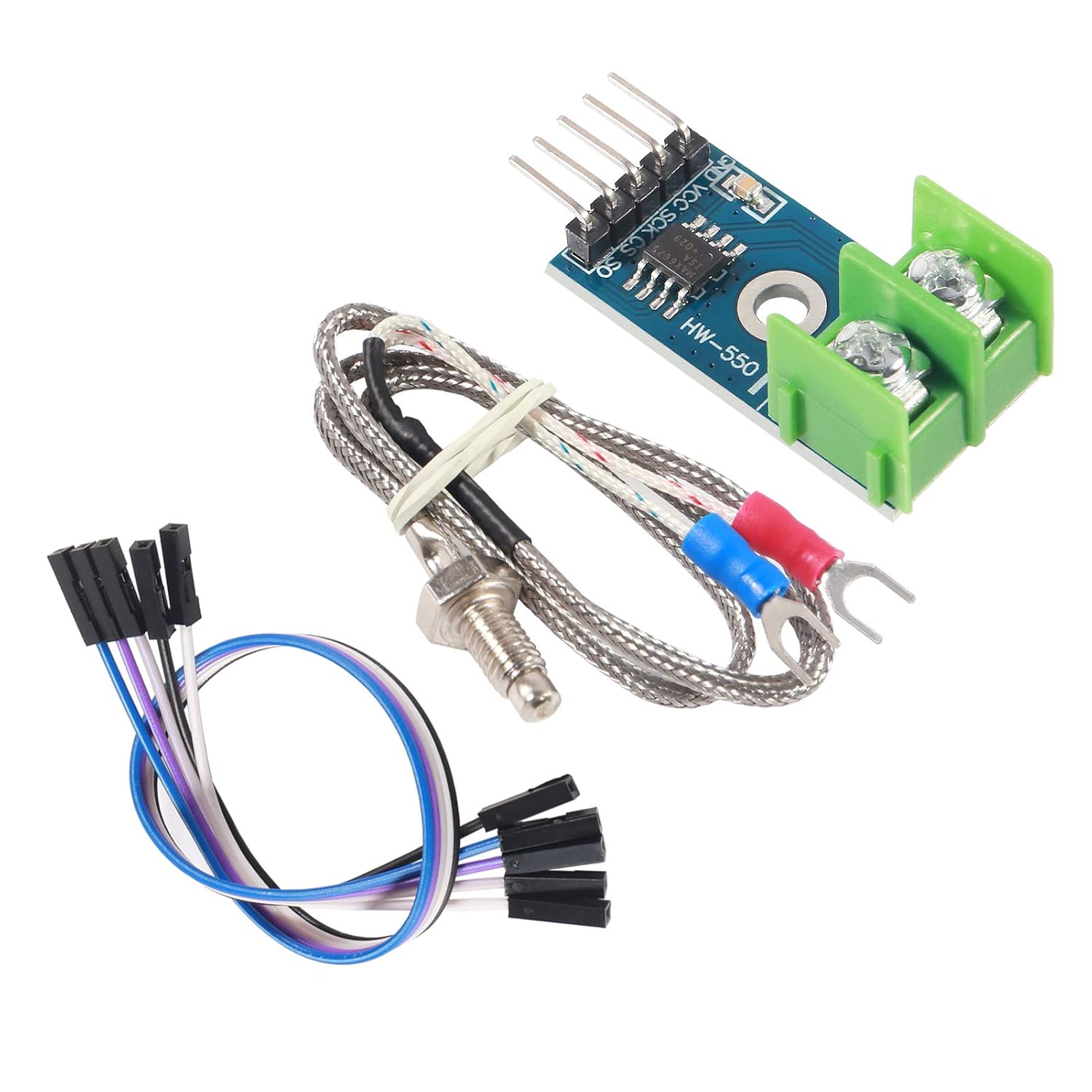

MAX6675 Module with K Type Thermocouple Sensor

$4.99
Quantity
Pickup available at Robot Pi Shop
Specifications:
  • Working voltage: DC 5V
  • Operating Current: 50mA
  • The temperature measuring range: -200°C - 1300 °C [Test procedure for 0-1023 °C]
  • The temperature measurement accuracy: ± 1.5 °C
  • The temperature resolution: 0.25 °C
  • The output mode: SPI digital signal
  • With a fixed mounting holes for easy fixed installation.
  • Storage temperature: -50 ~ 150 °C
  • Module size: 25mm * 15mm * 13mm
1 Set MAX6675 Package Included:
1* MAX6675 Module
1* K Type Thermocouple Thermocouple Sensor
1* 4PIN DuPont line
