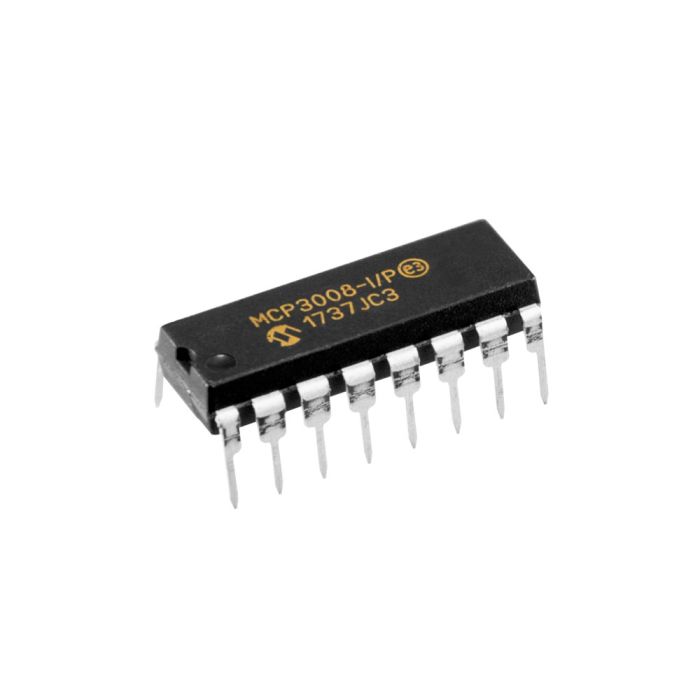

MCP3008 10-Bit 8-Channel Analog-to-Digital Converter IC – SPI Interface (DIP-16)
The MCP3008 is a low-power, 10-bit Analog-to-Digital Converter (ADC) integrated circuit designed to convert analog voltage signals into digital data for microcontrollers and single-board computers.
Featuring eight analog input channels, an SPI serial interface, and a successive approximation register (SAR) architecture, the MCP3008 provides reliable analog signal acquisition for sensors, measurement equipment, and embedded electronics projects.
Operating from 2.7V to 5.5V, the MCP3008 is particularly useful for Raspberry Pi applications, allowing analog sensors, potentiometers, and other analog-output devices to be connected to boards that do not have built-in analog inputs.
The DIP-16 package makes the IC suitable for breadboards, prototyping, and custom PCB designs.
Key Features
-
10-Bit ADC Resolution: Converts analog input signals into digital values from 0 to 1023.
-
8 Analog Input Channels: Supports multiple analog sensors and input signals.
-
Flexible Input Configuration: Supports eight single-ended inputs or four pseudo-differential input pairs.
-
SPI Communication: Compatible with SPI-enabled microcontrollers and development boards.
-
High Sampling Speed: Supports up to 200,000 samples per second at 5V.
-
Wide Operating Voltage: Operates from 2.7V to 5.5V DC.
-
Low Power Consumption: Suitable for battery-powered and embedded applications.
-
Sample-and-Hold Circuit: Integrated sample-and-hold functionality for analog signal conversion.
-
Configurable Voltage Reference: Allows ADC measurement scaling using an external reference voltage.
-
DIP-16 Package: Suitable for breadboards, prototyping, and through-hole PCB assembly.
Technical Specifications
| Parameter |
Specification |
| Manufacturer Part Number |
MCP3008 |
| Component Type |
Analog-to-Digital Converter (ADC) |
| ADC Architecture |
Successive Approximation Register (SAR) |
| Resolution |
10-bit |
| Analog Input Channels |
8 Single-Ended or 4 Pseudo-Differential Pairs |
| Operating Voltage |
2.7V–5.5V DC |
| Maximum Sampling Rate at 5V |
200kSPS |
| Maximum Sampling Rate at 2.7V |
75kSPS |
| Communication Interface |
SPI |
| Supported SPI Modes |
Mode 0 and Mode 1 |
| Digital Output Range |
0–1023 |
| Reference Voltage |
External VREF Input |
| Analog Input Range |
0V to VREF for Single-Ended Measurements |
| Typical Standby Current |
5nA |
| Typical Active Current |
Approximately 425µA at 5V |
| Differential Nonlinearity (DNL) |
±1 LSB Maximum |
| Integral Nonlinearity (INL) |
±1 LSB Maximum |
| Operating Temperature |
-40°C to +85°C (industrial-grade versions) |
| Package Type |
DIP-16 |
| Mounting Type |
Through-Hole |
| Number of Pins |
16 |
Pin Configuration
| Pin |
Name |
Description |
| 1 |
CH0 |
Analog Input Channel 0 |
| 2 |
CH1 |
Analog Input Channel 1 |
| 3 |
CH2 |
Analog Input Channel 2 |
| 4 |
CH3 |
Analog Input Channel 3 |
| 5 |
CH4 |
Analog Input Channel 4 |
| 6 |
CH5 |
Analog Input Channel 5 |
| 7 |
CH6 |
Analog Input Channel 6 |
| 8 |
CH7 |
Analog Input Channel 7 |
| 9 |
DGND |
Digital Ground |
| 10 |
CS/SHDN |
Chip Select / Shutdown |
| 11 |
DIN |
SPI Data Input (MOSI) |
| 12 |
DOUT |
SPI Data Output (MISO) |
| 13 |
CLK |
SPI Clock Input |
| 14 |
AGND |
Analog Ground |
| 15 |
VREF |
Reference Voltage Input |
| 16 |
VDD |
Power Supply |
Raspberry Pi Connection Example
The MCP3008 can be connected to a Raspberry Pi through its SPI interface to read analog sensors.
| MCP3008 Pin |
Raspberry Pi GPIO |
| VDD (16) |
3.3V |
| VREF (15) |
3.3V |
| AGND (14) |
GND |
| DGND (9) |
GND |
| CLK (13) |
GPIO11 (SPI SCLK) |
| DOUT (12) |
GPIO9 (SPI MISO) |
| DIN (11) |
GPIO10 (SPI MOSI) |
| CS/SHDN (10) |
GPIO8 (SPI CE0) |
| CH0 (1) |
Analog Sensor Output |
Connection Instructions:
- Connect the MCP3008 power supply and reference voltage to the Raspberry Pi's 3.3V supply.
- Connect AGND and DGND to the Raspberry Pi ground.
- Connect the SPI pins according to the wiring table.
- Connect an analog sensor output to one of the MCP3008 input channels.
- Enable SPI in the Raspberry Pi configuration.
- Use a compatible Python library, such as Adafruit CircuitPython MCP3xxx, to read analog values.
- Convert the ADC reading into voltage or the required sensor measurement.
ADC Voltage Calculation:
For a single-ended input:
Voltage = (ADC Reading × VREF) / 1024
For example, with a 3.3V reference and an ADC reading of 512:
Voltage = (512 × 3.3) / 1024 = 1.65V
Arduino Connection Example
| MCP3008 Pin |
Arduino UNO |
| VDD |
5V |
| VREF |
5V |
| AGND |
GND |
| DGND |
GND |
| CLK |
D13 |
| DOUT |
D12 |
| DIN |
D11 |
| CS/SHDN |
D10 |
| CH0 |
Analog Sensor Output |
The MCP3008 can be used with Arduino to expand the number of analog input channels available to a project.
Applications
- Raspberry Pi analog sensor interfacing
- Arduino and ESP32 projects
- Analog sensor data acquisition
- Potentiometer and joystick reading
- Voltage monitoring circuits
- Environmental monitoring systems
- Robotics and automation projects
- Battery voltage measurement with suitable input conditioning
- Industrial sensor monitoring
- Multi-channel data logging
- Educational electronics projects
- Custom embedded control systems
Important Notes
- The MCP3008 is an integrated circuit, not a complete breakout module.
- External wiring and supporting components are required for operation.
- The ADC supports analog input voltages within the permitted range defined by VREF and VDD.
- Do not apply negative voltages or voltages exceeding the device's electrical limits.
- For Raspberry Pi applications, operate the MCP3008 at 3.3V to maintain GPIO compatibility.
- When powered at 5V, the SPI outputs may not be directly compatible with 3.3V microcontrollers.
- The MCP3008 provides 10-bit resolution, corresponding to 1024 digital levels.
- The reference voltage directly affects the ADC measurement range and accuracy.
- The device does not measure negative voltages directly in standard single-ended mode.
- The analog inputs are multiplexed and are not sampled simultaneously.
- For accurate measurements, use appropriate power supply decoupling, grounding, and signal conditioning.
- The MCP3008 is not a direct replacement for higher-resolution ADCs when 12-bit, 16-bit, or greater resolution is required.
