FEATURES:

• Modle: SS12D00G
• Contact Type: SPDT on-off

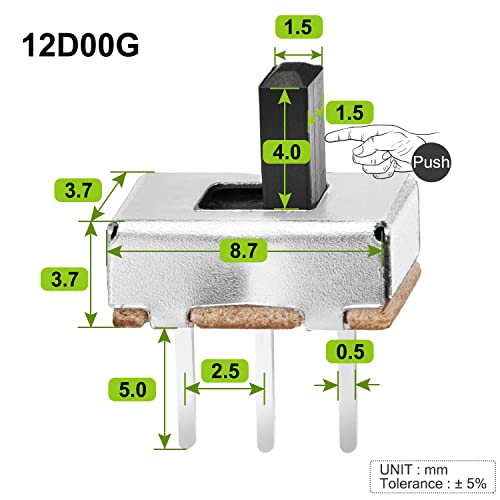

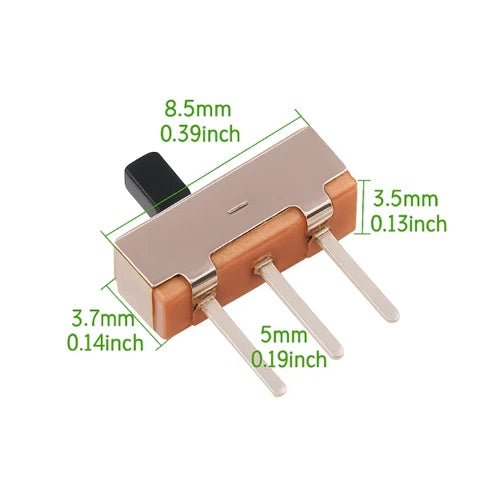

• Size: 8.7 x 3.7 x 12.7mm (L x W x H)
• Pin Pitch: 0.1" / 2.54mm
• Terminal Quantity: 3 pins
• Terminal Length: 5mm
• Knob Length: 4mm
• Connector Type: Vertical Through Hole
• Mounting Type: Panel Mount
• Color: Black, Sliver.

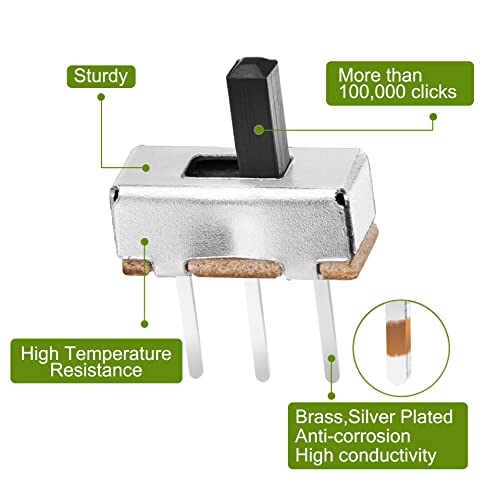

• Material: Plastic, Brass, Sliver
• Plated: Anti-corrosion and high conductivity
• Voltage: DC 50V
• Rated Current: 0.5A
• Mechanical Life: More than 100,000 clicks
• High Temperature Resistance: -13℉ ~ 176℉.
• APPLICATION – Used for pcb project, arduino, solderless breadboard, electronic circuits, electronics board, microphone, audio, video, electric circuit, position solder, etc.

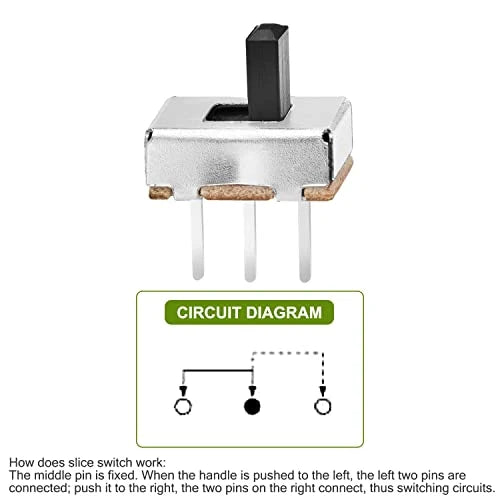

• HOW DO TACTILE SWITCH WORK - The middle pin is fixed. When the handle is pushed to the left, the left two pins are connected, push it to the right, the two pins on the right connect, thus switching circuits.
