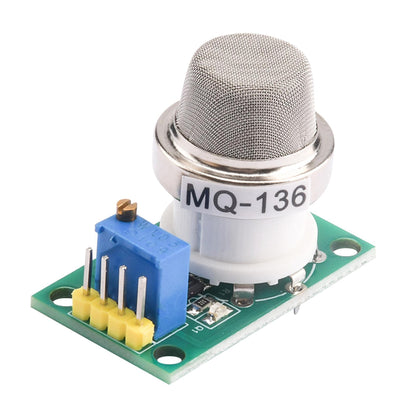

MQ136 Hydrogen Sulfide Gas Sensor

$21.99

Shipping calculated at checkout.

Quantity

The MQ136 Hydrogen Sulfide (H₂S) Gas Sensor Module is a semiconductor gas sensor designed to detect hydrogen sulfide gas in the surrounding air. It uses a metal oxide sensing element whose electrical resistance changes when exposed to H₂S.

Hydrogen sulfide is a toxic gas commonly associated with wastewater systems, sewage treatment, industrial processes, and the decomposition of organic materials.

The MQ136 module features analog and digital outputs, an adjustable detection threshold, and onboard indicator circuitry. Its compact PCB design makes it suitable for Arduino, ESP32, Raspberry Pi, and other microcontroller-based monitoring projects.

The module is intended for educational experiments, environmental sensing prototypes, laboratory research, and embedded gas detection applications.

Key Features

  • Hydrogen Sulfide Detection: Designed primarily for detecting H₂S gas.
  • Semiconductor Technology: Uses a metal oxide gas-sensitive element.
  • Analog Output (AO): Provides a variable voltage related to sensor resistance and gas concentration.
  • Digital Output (DO): Provides a HIGH/LOW signal based on an adjustable threshold.
  • Adjustable Detection Threshold: Onboard potentiometer allows digital trigger adjustment.
  • 5V DC Operation: Suitable for common microcontroller development systems.
  • Fast Sensor Response: Responds to changes in hydrogen sulfide concentration.
  • Onboard Indicator Circuitry: Supports power and detection status indication.
  • Compact PCB Design: Easy to integrate into electronic prototypes.
  • Mounting Holes: Allows installation in project enclosures.
  • Microcontroller Compatibility: Can interface with Arduino, ESP32, and Raspberry Pi using appropriate circuitry.

Technical Specifications

Specification Details
Model MQ136
Sensor Type Hydrogen Sulfide Gas Sensor
Target Gas Hydrogen Sulfide (H₂S)
Sensor Technology Metal Oxide Semiconductor (MOS)
Typical Detection Range 1–200 ppm H₂S, depending on sensor variant
Module Operating Voltage 5V DC
Reported Module Current Approximately 150 mA
Analog Output Variable Voltage
Digital Output HIGH/LOW Logic
Digital Output Levels Approximately 0V or 5V
Detection Threshold Adjustable Potentiometer
Sensor Heating Internal Heating Element
Preheating Required Before Stable Measurements
Interface Analog and Digital
Connection 4-Pin Interface
PCB Mounting Mounting Holes Provided

Pin Configuration

Pin Description
VCC 5V DC Power Supply
GND Ground
AO Analog Sensor Output
DO Digital Threshold Output

Arduino UNO Connection Example

MQ136 Pin Arduino UNO
VCC 5V
GND GND
AO A0
DO D2 (Optional)

Arduino can read the analog output to monitor relative changes in hydrogen sulfide concentration or use the digital output to detect when the adjustable threshold is reached.

Note: Accurate gas concentration measurements require calibration and appropriate signal processing.

ESP32 Connection Example

MQ136 Pin ESP32
VCC 5V
GND GND
AO GPIO34 Through Voltage Divider
DO Digital GPIO Through Level Shifter

Important: ESP32 GPIO pins operate at 3.3V. The MQ136 module may produce output signals up to 5V, so appropriate voltage-level protection is required.

Raspberry Pi Compatibility

The MQ136 can be connected to Raspberry Pi boards using additional interface components.

  • Analog Reading: Requires an external ADC such as ADS1115 or MCP3008.
  • Digital Reading: Requires suitable voltage-level shifting if the digital output exceeds 3.3V.
  • Power Supply: Requires a suitable 5V DC supply.

Applications

  • Hydrogen sulfide sensing experiments
  • Wastewater monitoring research
  • Sewage gas detection prototypes
  • Environmental monitoring projects
  • Laboratory H₂S sensing experiments
  • Arduino gas detection systems
  • ESP32 IoT monitoring applications
  • Raspberry Pi sensor projects
  • Educational electronics experiments
  • Industrial gas monitoring research
  • Embedded gas sensing systems
  • Air quality monitoring prototypes

Important Notes

  • The MQ136 is designed primarily for hydrogen sulfide (H₂S) detection.
  • The sensor may respond to other gases and cannot reliably identify individual gases in a mixed environment.
  • The analog output does not directly represent H₂S concentration in ppm. Calibration is required.
  • The onboard potentiometer adjusts the digital switching threshold, not the sensor's underlying sensitivity.
  • Initial preheating and sensor conditioning are necessary before stable measurements can be obtained.
  • The approximately 20-second warm-up sometimes listed for breakout modules does not replace full sensor conditioning.
  • Temperature, humidity, and other environmental conditions may affect sensor readings.
  • The internal heating element becomes warm during operation.
  • Do not connect 5V output signals directly to 3.3V-only microcontroller GPIO pins.
  • Hydrogen sulfide is highly toxic. Exposure must not be assessed using an uncalibrated hobby sensor.
  • This module is not a certified hydrogen sulfide safety detector and must not replace approved industrial gas monitoring or personal protective equipment.

Package Includes

  • 1 × MQ136 Hydrogen Sulfide Gas Sensor Module
