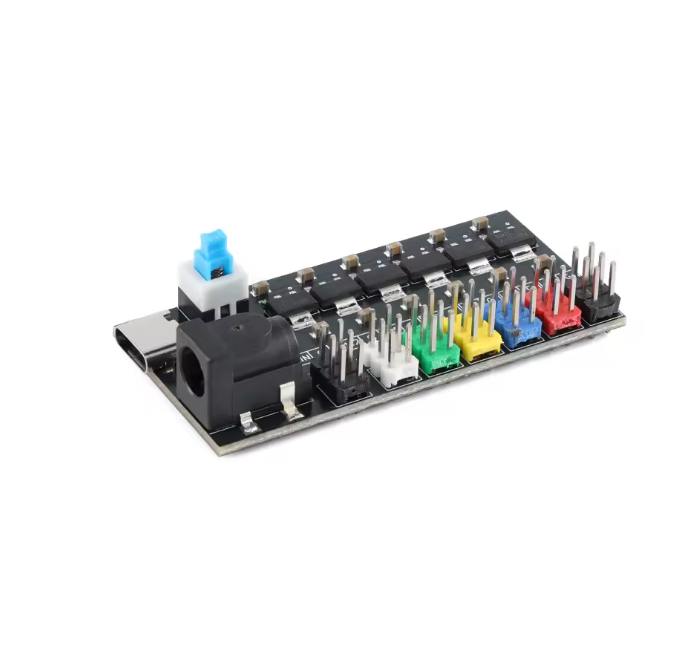

General:

• Product Type: Multi-output Voltage Regulator Board
• Regulator IC: AMS1117 Series
• Number of Outputs: 6 Independent Channels
• Max Output Current: 800mA per channel
• Regulation Type: Linear Voltage Regulation

Input:

• Input Voltage (DC): 6V – 12V recommended
• Input Ports:
  • USB Type-C
  • DC Barrel Jack (5.5 × 2.1mm)
• Power Switch: Onboard toggle switch

Output Voltages (Fixed):

Each channel provides a dedicated regulated voltage:

• 1.2V
• 1.5V
• 1.8V
• 2.5V
• 3.3V
• 5.0V

Output Interface:

• Pin Headers: 2.54mm standard pins
• Color-Coded Outputs for easy identification
• GND Pins: Common ground across all channels

Performance:

• Max Current per Channel: 800mA (with proper cooling)
• Dropout Voltage: ~1.1V (typical for AMS1117)
• Efficiency: Depends on input-output voltage difference (linear regulator)
• Heat Dissipation: Requires airflow under high load

Features:

• Multiple fixed voltages from a single board
• Stable and low-noise output (ideal for electronics & prototyping)
• Easy plug-and-play with standard headers
• Compact design for breadboard / lab use
• Overcurrent and thermal protection (via AMS1117)

Physical:

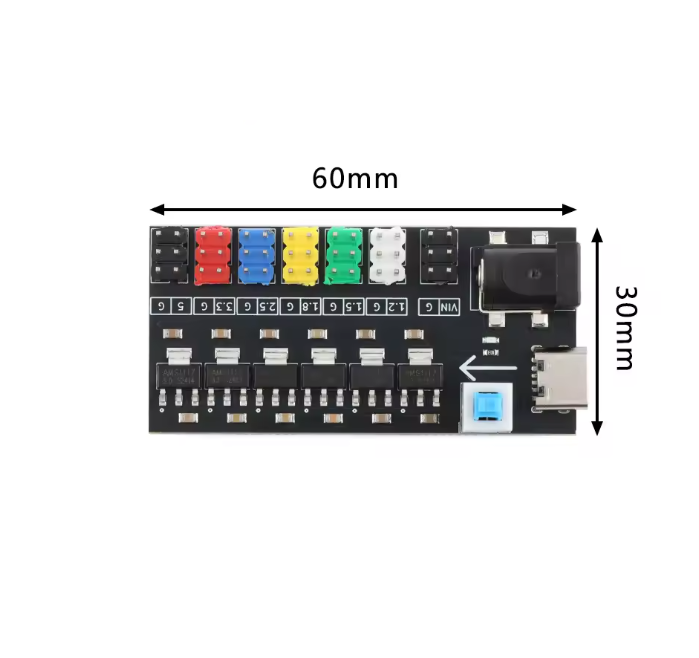

• Form Factor: Compact PCB module
• Mounting: Through-hole / bench use
• Connectors: Type-C + DC Jack + Pin headers

Applications:

• Arduino / ESP32 / Raspberry Pi projects
• Sensor and module power distribution
• Prototyping labs
• DIY electronics
• Multi-voltage testing setups

Important Notes:

• Linear regulators generate heat → avoid high current on multiple channels simultaneously
• Input voltage must be higher than output by ~1.5V for stable regulation
• Not suitable for high-efficiency power applications (use buck converters if needed)
