Orange Pi 4 LTS

$0.00
Quantity

Orange Pi Description

Orange Pi 4 LTS uses Rockchip RK3399 chip and has 3GB or 4GB LPDDR4 memory, optional 16GB EMMC Flash. It is designed for anyone who wants to use technology to create and innovate. It's a very simple, fun, and useful tool that you can use to shape the world around you. Compared to the Original orange PI 4, it has a dual-core Arm Cortex-A72 clocked at up to 1.8GHz and also integrates a quad-core Arm Cortex-A53 clocked at 1.4GHz. You can use it to build: a computer, a TV box, a game console, a car device, an intelligent robot, a music player, and a home theater.

Feature

  • Rockchip RK3399 (28nm HKMG Process)

  • Based on the large and small size of big.LITTLE core architecture: Dual-core Cortex-A72 (large core)+ Quad-core Cortex-A53(small core)

  • 6-core ARMR64-bit processor ,main frequency speeds up to 1.8GHz

  •  4GB LPDDR4+16GB EMMC Flash

  •  2*USB2.0, 1*USB3.0, Ethernet, USB3.0 Type-C, HD, Audio, 2*camera, Mic, 26pin headers, 24pin Mini PCIE

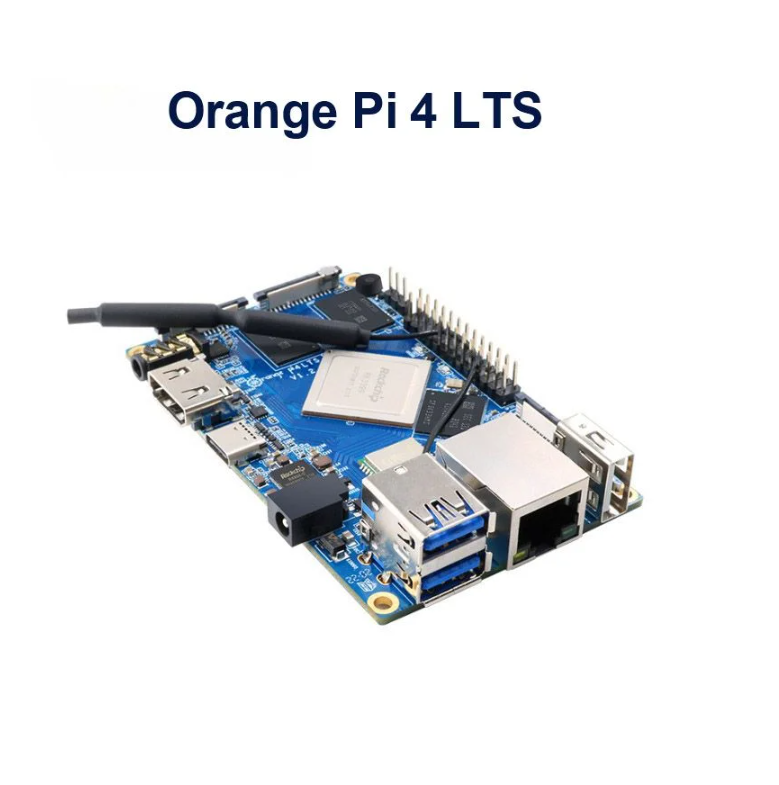

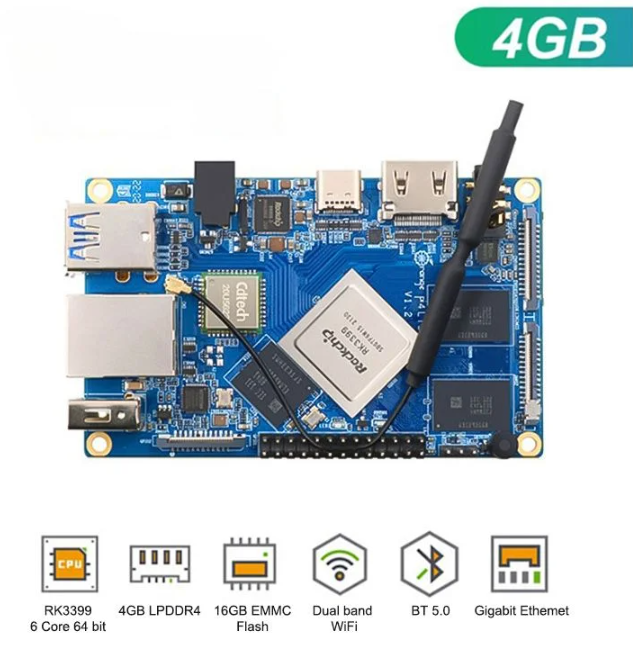

top and bottom view ofadvanced orange pi 4

front and back side of advanced orange Pi 4

Specification

  • SOC: Rockchip RK3399 (28nm HKMG Process)

  • CPU Based on the large and small size of big.LITTLE core architecture: Dual-core Cortex-A72 (large core)+ Quad-core Cortex-A53(small core)

    6-core ARMR64-bit processor, main frequency speeds up to 1.8GHz

  • GPU: High-performance multi-core Mali-T860 GPU; Supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11; Support for AFBC

  • PMU: RK808 PMU

  • Memory: 4GB LPDDR4

  • Onboard Storage 16GB EMMC Flash (option), MicroSD (TF) Card Slot

  • Onboard EthernetSupport 10/100M/1000M ethernet (YT8531C)

  • Video Output Output: 3.5mm Jack and HD 2.Oa

    input: MIC

  • Audio Output: HD 2.0, Supports 4K@60fps output; 1x DP 1.2(Display Port), Supports 4K@60fps output; Supports Dual MIPl-DSI ( 4 lines per channel )

  • Camera: 2 × MIPI-CSl Camera connector (MIPI_RXO、MIPI_TX1/RX1)

  • USB: 2 * USB2.0 +1*USB3.0+ 1 * USB3.0 Type-C

  • Debug UART :3 Pin

  • GPIO: 26 Pin

  • PCIe:24 Pin mini PCIE port

  • Key: Upgrade Key & Reset Key

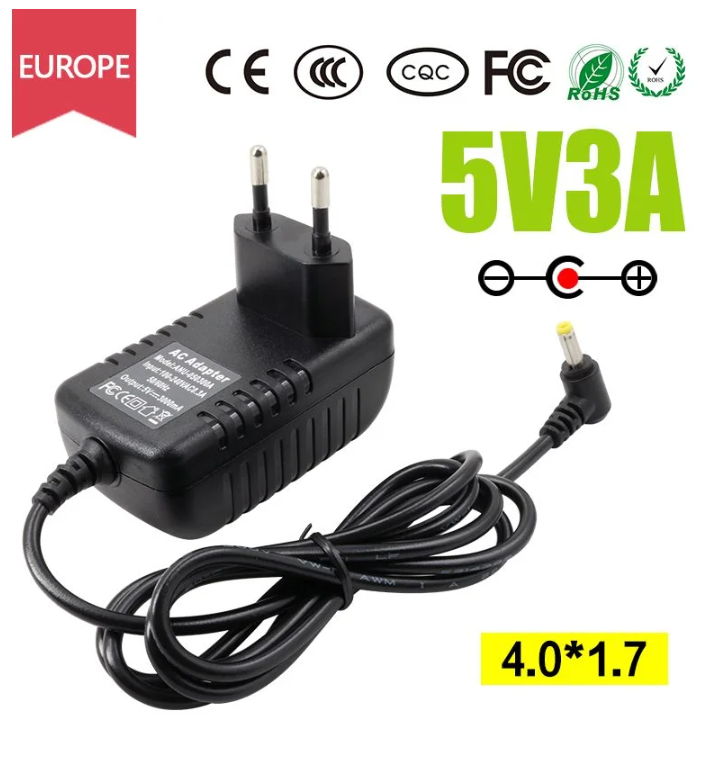

  • Power Supply: DC 5V/3A, TYPE-C 5V/3A

  • LED: Power led & Status led

  • Supported OS: Android, Ubuntu, Debian

  • Product Size 56X91mm

  • Net Weight: 49g

Package list

  • 1*Orange PI 4 LTS
