Pixel Stair Lighting Controller

$39.99

Shipping calculated at checkout.

Quantity

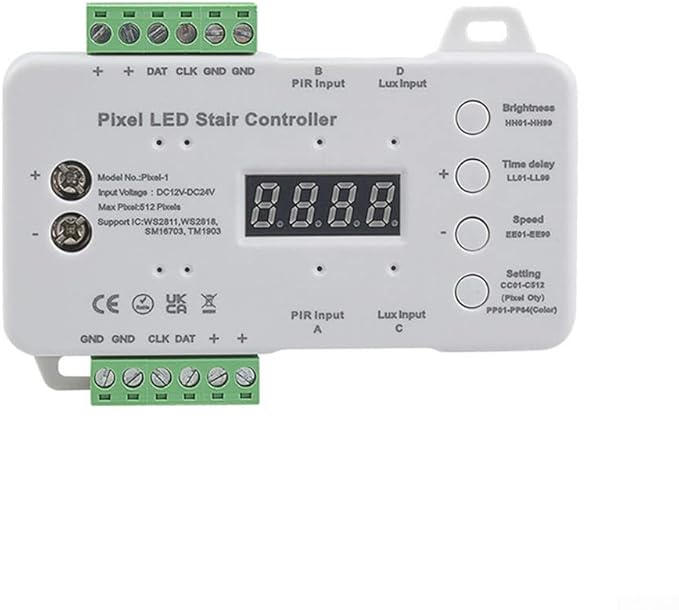

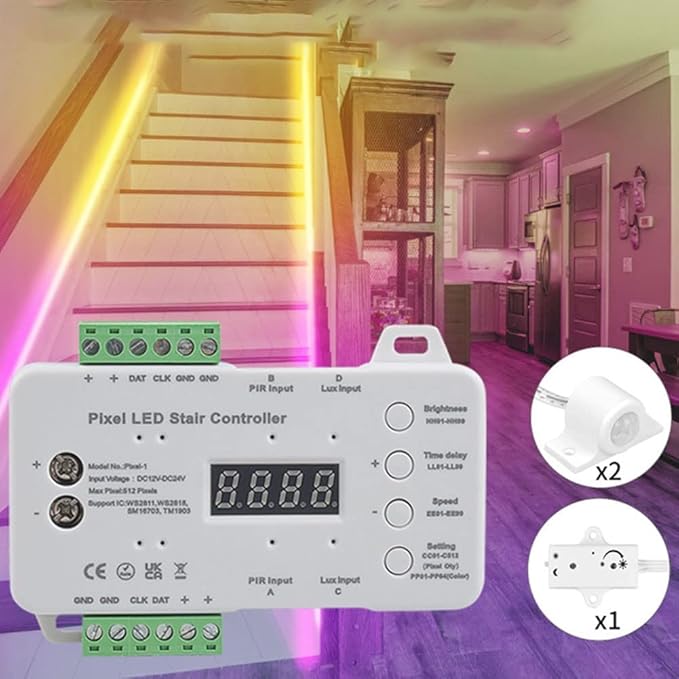

The Pixel Stair Lighting Controller (Pixel-1) is an intelligent LED lighting controller designed to create automatic, motion-activated staircase lighting effects using addressable LED strips.

Equipped with two PIR motion sensors and a daylight sensor, the controller automatically activates staircase lighting when movement is detected and can prevent unnecessary operation when sufficient ambient light is available.

Supporting WS2811, WS2818, SM16703, and TM1903 addressable LED ICs, the controller provides multiple lighting effects with adjustable color, speed, and brightness.

With support for up to 512 addressable pixels, it is suitable for residential staircases, decorative lighting, smart homes, and architectural LED installations.

Key Features

  • Automatic Motion Detection: Activates staircase lighting when movement is detected.
  • Dual PIR Sensors: Supports motion detection from both ends of a staircase.
  • Daylight Sensor: Prevents unnecessary lighting activation when sufficient ambient light is detected.
  • 12V–24V DC Input: Suitable for compatible low-voltage LED lighting systems.
  • Addressable LED Control: Supports compatible RGB pixel LED strips.
  • Multiple Lighting Effects: Four working modes with adjustable lighting patterns.
  • Adjustable Brightness: Brightness control from 1 to 100 levels.
  • Adjustable Speed: Customize the speed of staircase lighting animations.
  • Color Adjustment: Configure lighting colors and effects.
  • Up to 512 Pixels: Supports a maximum of 512 individually addressable pixels.
  • Compact Controller: Designed for installation in staircase lighting and decorative LED systems.

Technical Specifications

Parameter Specification
Product Name Pixel Stair Lighting Controller
Model Number Pixel-1
Input Voltage 12–24V DC
Maximum Pixel Quantity 512 Pixels
Supported LED ICs WS2811, WS2818, SM16703, TM1903
Lighting Type Addressable RGB and Compatible Single-Color Pixel LED Strips
Working Modes 4 Modes
Brightness Adjustment 1–100 Levels
Speed Adjustment Adjustable
Color Adjustment Supported
Motion Detection Dual PIR Motion Sensors
Ambient Light Detection External Daylight Sensor
Controller Material PC Plastic
Controller Color White

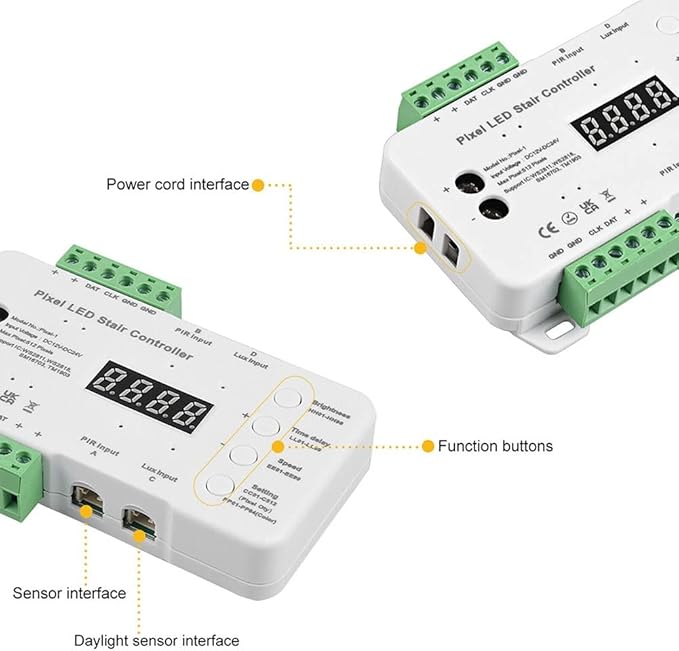

Connection and Operation

1. Power Supply

Connect a compatible 12V–24V DC power supply to the controller's designated power input terminals.

2. LED Strip Connection

Connect a compatible addressable LED strip to the controller's LED output terminals, following the indicated wiring and signal direction.

3. PIR Motion Sensors

Install the two PIR sensors at opposite ends of the staircase:

  • Lower PIR Sensor: Detects movement approaching from the bottom.
  • Upper PIR Sensor: Detects movement approaching from the top.

4. Daylight Sensor

Position the daylight sensor where it can detect ambient lighting conditions without being directly illuminated by the staircase LEDs.

5. Lighting Configuration

Use the controller's onboard controls to configure:

  • Lighting mode
  • Color selection
  • Animation speed
  • Brightness level
  • Pixel quantity

Applications

  • Automatic LED Staircase Lighting
  • Smart Home Stair Lighting
  • Motion-Activated LED Installations
  • Residential Staircase Illumination
  • Hotel and Commercial Staircase Lighting
  • Decorative RGB LED Projects
  • Architectural Lighting
  • Corridor and Entrance Lighting
  • Indoor LED Animation Systems

Important Notes

  • Power Supply: Use a regulated 12V–24V DC power supply appropriate for the controller and connected LED strip.
  • LED Compatibility: Verify that the LED strip uses a supported addressable IC and compatible voltage.
  • Maximum Capacity: The controller supports up to 512 addressable pixels, not necessarily 512 individual LED packages.
  • PIR Installation: Position the two motion sensors to detect movement at the intended entry points.
  • Daylight Sensor: Proper placement is important for reliable ambient-light detection.
  • Power Requirements: Size the power supply according to the total LED strip power consumption.
  • Long LED Installations: Additional power injection may be required to prevent voltage drop.
  • Indoor Installation: Protect the controller and connections from moisture unless a suitable enclosure is used.
  • LED Strip and Power Supply: These are not confirmed as included with the controller kit.

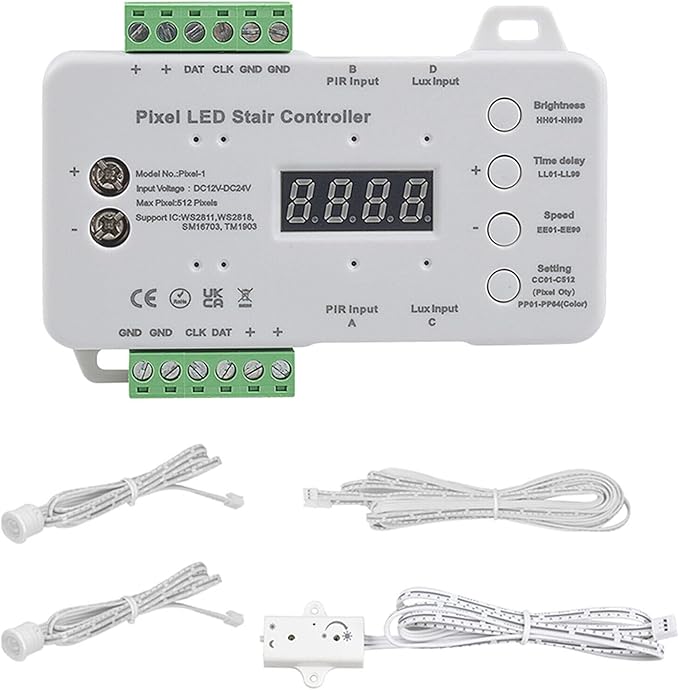

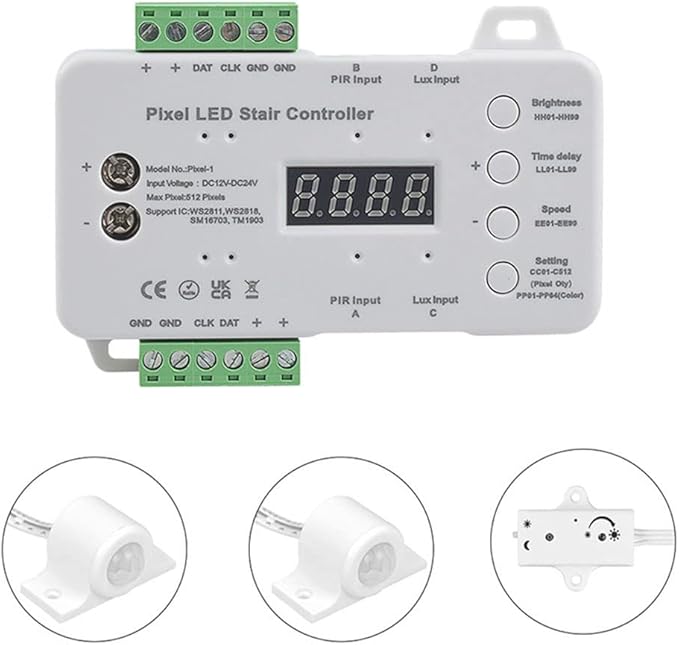

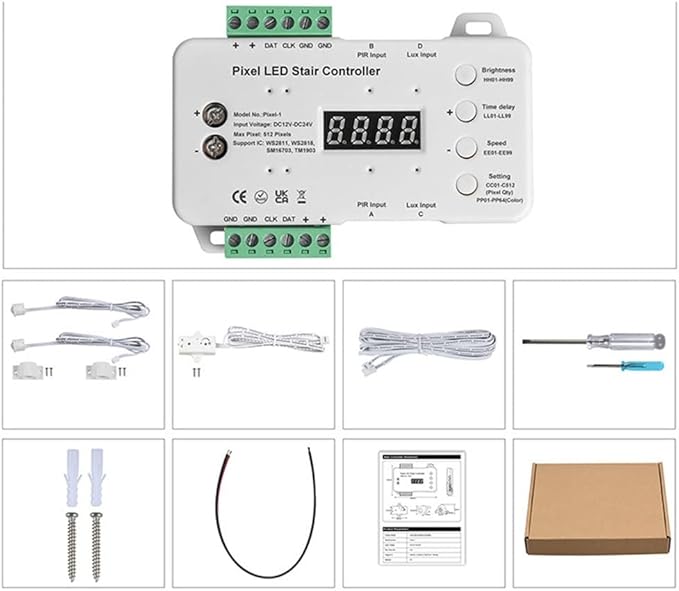

Package Includes

  • 1 × Pixel Stair Lighting Controller (Pixel-1)
  • 2 × PIR Motion Sensors (1m Cable Each)
  • 1 × 5m Extension Cord
  • 1 × Daylight Sensor (1m Cable)
