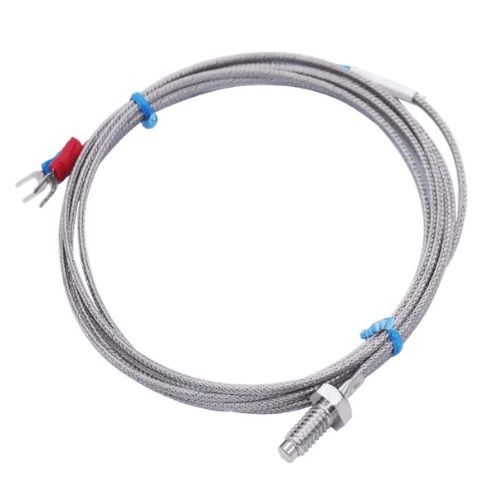

K-Type Thermocouple Temperature Sensor – M6 Screw Probe
The K-Type Thermocouple Temperature Sensor with M6 Screw Probe is designed for temperature monitoring in industrial equipment, heating systems, machinery, and DIY electronics projects.
Featuring a threaded M6 metal probe and a 1-meter braided cable, this sensor allows secure installation on compatible surfaces and equipment.
With a specified temperature measurement range of 0°C to 600°C, it is suitable for high-temperature monitoring applications when used with an appropriate thermocouple interface or temperature controller.
Key Features
-
K-Type Thermocouple: Designed for temperature measurement using the thermoelectric effect.
-
Wide Temperature Range: Specified measurement range from 0°C to 600°C.
-
M6 Threaded Probe: Allows secure installation in compatible threaded mounting points.
-
1-Meter Cable: Provides flexibility when positioning the sensor.
-
Braided Cable: Designed for use in temperature-monitoring installations.
-
Two-Wire Connection: Connects to compatible K-type thermocouple measurement equipment.
-
Versatile Applications: Suitable for industrial heating, machinery, and electronics projects.
Technical Specifications
| Parameter |
Specification |
| Product Type |
Thermocouple Temperature Sensor |
| Thermocouple Type |
K-Type |
| Probe Model |
M6 Screw Probe |
| Temperature Measurement Range |
0°C to 600°C (32°F to 1112°F) |
| Thread Diameter |
M6 (6mm nominal) |
| Cable Length |
100cm (1m) |
| Sensor Connection |
2-Wire |
| Output Signal |
Thermocouple Millivolt Signal |
| Weight |
Approximately 40g |
| Probe Mounting |
Threaded Screw Mount |
Wiring and Connection
The sensor has two connection wires for use with a compatible K-type thermocouple interface.
| Connection |
Function |
| Positive (+) |
Thermocouple Positive |
| Negative (−) |
Thermocouple Negative |
Note: The original product information identifies red as positive and blue as negative. Verify the actual wire polarity before installation, as thermocouple wire colors vary by standard and manufacturer.
Arduino, ESP32 and Raspberry Pi Compatibility
The thermocouple can be integrated with microcontroller projects using a dedicated thermocouple interface module, such as:
- MAX6675 K-Type Thermocouple Module
- MAX31855 Thermocouple Interface Module
- MAX31856 Universal Thermocouple Interface Module
These modules convert the low-level thermocouple signal into digital temperature readings.
Important: The thermocouple should not be connected directly to a standard microcontroller GPIO or ADC input.
Applications
- Industrial Temperature Monitoring
- Heating Equipment
- 3D Printer Heating Systems
- Temperature Controllers
- Machinery Temperature Measurement
- Laboratory Experiments
- Arduino and ESP32 Temperature Projects
- DIY Heating and Automation Systems
- Surface Temperature Monitoring
Important Notes
- This product is specified as a K-type thermocouple, not a PT100 or PT1000 resistance temperature detector.
- A compatible thermocouple interface or temperature controller is required.
- Verify wire polarity before connecting.
- The 600°C rating should not be assumed to apply to the full cable length or connector insulation.
- Confirm that the M6 thread and probe mounting arrangement are compatible with the installation.
- Measurement accuracy depends on the thermocouple, interface electronics, and installation conditions.
