PWM RF 14 Keys Knob LED Dimmer

$9.99

Shipping calculated at checkout.

Quantity

PWM RF LED Dimmer Controller 5–24V 30A

The PWM RF LED Dimmer Controller is a high-current LED brightness controller designed for single-color DC LED strips and compatible LED lighting systems.

Operating from 5V to 24V DC, the controller uses Pulse Width Modulation (PWM) technology to provide smooth and adjustable brightness control without changing the supplied DC voltage.

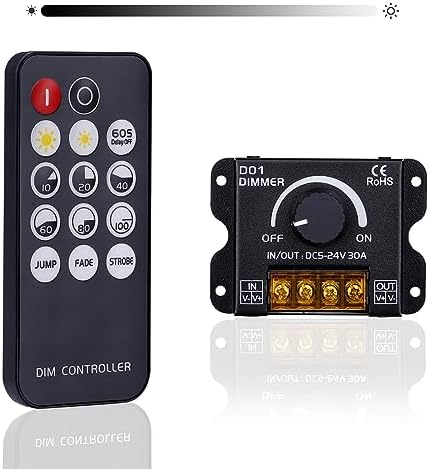

Featuring a built-in rotary adjustment knob and a 14-key RF wireless remote control, the dimmer offers convenient manual and wireless lighting adjustment.

With a maximum output current of 30A, it is suitable for a wide range of LED lighting applications, including decorative lighting, architectural illumination, display lighting, and DIY electronics projects.

Key Features

  • Wide Operating Voltage: Supports 5–24V DC input.
  • High-Current Output: Maximum output current of 30A.
  • PWM Dimming Technology: Provides adjustable LED brightness using pulse-width modulation.
  • Dual Control Methods: Adjust brightness using the rotary knob or RF wireless remote.
  • 14-Key RF Remote: Convenient wireless lighting control.
  • Single-Color LED Compatibility: Designed for compatible constant-voltage LED strips and lighting modules.
  • Compact Controller: Suitable for installation in lighting systems and electronic enclosures.
  • Screw Terminal Connections: Convenient power supply and LED wiring.
  • Versatile Applications: Suitable for residential, commercial, decorative, and DIY lighting projects.

Technical Specifications

Parameter Specification
Product Type PWM RF LED Dimmer Controller
Input Voltage 5–24V DC
Maximum Output Current 30A
Control Method PWM Dimming
Manual Control Rotary Knob
Wireless Control 14-Key RF Remote
LED Compatibility Single-Color Constant-Voltage DC LEDs
Maximum Output Power at 5V 150W
Maximum Output Power at 12V 360W
Maximum Output Power at 24V 720W
Operating Temperature −20°C to +60°C
Controller Dimensions 86 × 62 × 37mm
RF Remote Dimensions 85 × 40 × 7mm
Remote Battery Type 1 × CR2025 Coin Cell
Electrical Connections Screw Terminal Block

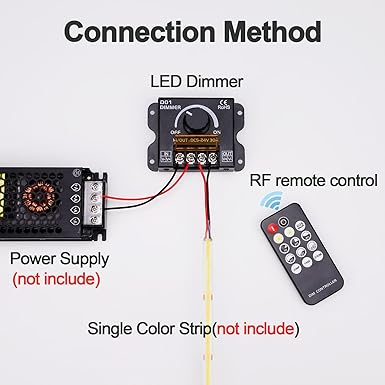

Connection and Operation

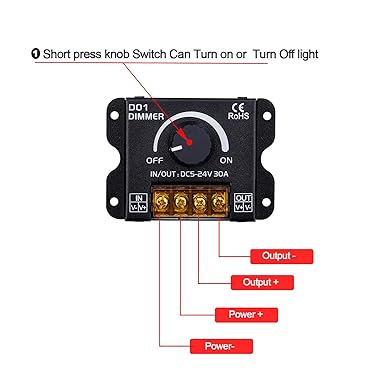

1. Connect the DC Power Supply

Connect a suitable 5–24V DC power supply to the controller's input terminals, observing the correct positive (+) and negative (−) polarity.

2. Connect the LED Lighting

Connect a compatible single-color LED strip or DC LED lighting load to the controller's output terminals.

3. Manual Brightness Adjustment

Rotate the controller's built-in knob to adjust the brightness of the connected LED lighting.

4. Wireless Remote Control

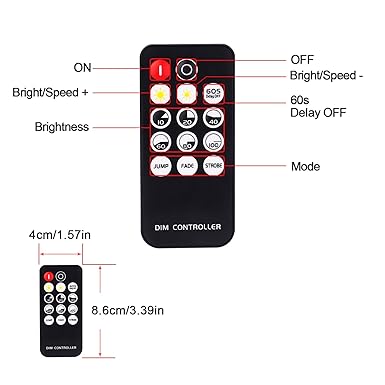

Use the supplied 14-key RF remote to control the LED lighting wirelessly.

5. PWM Dimming

The controller adjusts the PWM duty cycle to regulate the average power delivered to the connected LED lighting.

Applications

  • Single-Color LED Strip Dimming
  • Decorative LED Lighting
  • Architectural Lighting
  • Display and Exhibition Lighting
  • Cabinet and Shelf Lighting
  • DIY LED Lighting Projects
  • Workshop Lighting
  • Custom Lighting Installations
  • Low-Voltage DC Lighting Systems

Important Notes

  • DC Power Only: Do not connect the controller directly to 110V or 220V AC mains electricity.
  • Voltage Compatibility: The power supply voltage must match the rated voltage of the connected LED lighting and remain within 5–24V DC.
  • Maximum Current: The specified maximum output current is 30A. Continuous operating capacity and cooling requirements should be verified for high-current applications.
  • Maximum Power: Output power depends on the operating voltage and current. The stated values represent theoretical maximum power at 30A.
  • LED Compatibility: Designed for compatible single-color, constant-voltage DC LED lighting. Not intended for directly driving bare high-power LEDs without suitable current regulation.
  • RGB Compatibility: This is a single-channel dimmer and does not provide independent RGB color control.
  • Power Supply: Use an appropriately rated DC power supply with sufficient current capacity.
  • Wiring: Use suitable cable sizes and secure terminal connections for high-current installations.
  • RF Remote: Wireless operating range and RF frequency are not specified.
  • Battery: The remote uses a CR2025 coin cell. Confirm whether the battery is preinstalled.

Package Includes

  • 1 × PWM RF LED Dimmer Controller
  • 1 × 14-Key RF Wireless Remote Control
  • 1 × User Manual
