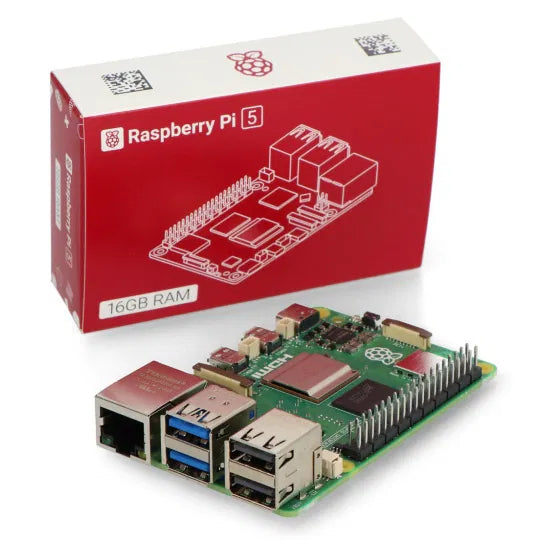

Raspberry Pi 5 - 16GB

$189.99
Quantity
Pickup available at Robot Pi Shop

Raspberry Pi 5 with 16 GB of RAM is the next generation of the iconic "raspberry pi" series, offering two microHDMI ports, two USB 3.0 , two USB 2.0 and a modern USB C power connector. The device is equipped with two MIPI DSI/CSI interfaces , a PCI Express 2.0 connector , a place for a fan, a UART connector, an RTC battery socket and a power button . On board there is dual-band WiFi (2.4 GHz and 5 GHz), Bluetooth 5 BLE and a gigabit Ethernet port with PoE support. This versatile solution will work well in both hobbyist and professional projects.

Raspberry Pi 5 , equipped with 16 GB of LPDDR4X-4267 RAM , runs on a quad-core Broadcom BCM2712 ARM Cortex-A76 64-bit processor at 2.4 GHz . The new generation offers performance that is up to 2-3 times faster than Raspberry Pi 4. In The standard equipment includes two microHDMI connectors, two USB 3.0 ports , two USB 2.0 ports and a USB C power connector. Additionally, the device has two MIPI DSI/CSI interfaces for cameras and displays, a PCI Express 2.0 connector , a place for a fan, a UART connector, a battery socket RTC and a dedicated power button. Raspberry Pi 5 also features dual-band WiFi (2.4 GHz and 5 GHz), Bluetooth 5 BLE, and a 1000 Mbps Gigabit Ethernet port with PoE support using the PoE+ HAT . The board retains the standard 40-pin GPIO connector (2x20 pin, 2.54 mm pitch) and a microSD memory card slot that supports the operating system. In addition to the typical mounting holes, there is space for installing an official radiator with a fan, which additionally increases the cooling capabilities during intensive use. operation of the device.

RPi 5 pinout diagram

Layout of components in Raspberry Pi 5

Layout and description of components on the Raspberry Pi 5 board

  1. Model designation
  2. Broadcom BCM2712 processor
  3. PCI Express 2.0 interface
  4. ON/OFF button
  5. Power management system
  6. Active Cooling/Radiator Mounting Holes
  7. RTC battery connector
  8. UART connector
  9. Raspberry Pi RP1 I/O controller
  10. Fan connector
  11. Ethernet and USB ports (reversed from Raspberry Pi 4)
  12. PoE HAT connector
  13. 2x 4-lane MIPI DSI/CSI connectors

Changes in Raspberry Pi 5

CHARACTERISTIC DESCRIPTION
Several versions Raspberry Pi 5 is available in several versions with different amounts of RAM: 1 GB, 2 GB, 4 GB, 8 GB, 16 GB.
BCM2712 Processor The Broadcom BMC2712 Quad-Core ARM Cortex-A76 64-bit chip clocked at 2.4 GHz is 60% faster than its predecessor.
PCIe 2.0 connector The fifth version of Raspberry Pi is equipped with a fast PCI Express 2.0 connector, allowing you to connect peripherals with fast data transfer.
RTC battery connector A dedicated connector allows you to connect a real-time clock (RTC) battery to maintain the current date and time.
UART connector There is a UART connector on the board to which you can connect a debugger.
Two CSI/DSI connectors Raspberry Pi 5 is equipped with two 4-lane MIPI CSI / DSI connectors in mini 22-pin format in 0.5 mm pitch, to which you can connect a camera and a display or two cameras / two displays.
ON/OFF button The Raspberry Pi minicomputer can now be turned on/off using the power button. The button can also be used to wake the Raspberry Pi from deep sleep mode. A long press of the button cuts off the power from the minicomputer.
Raspberry Pi RP1 system The RP1 was designed specifically by the Raspberry Pi Foundation to handle I/O interfaces, offloading the minicomputer's main processor, making the Raspberry Pi 5 significantly more powerful than its older predecessors.
Layout of connectors The board outline remains the same as in previous versions, but the layout of the interfaces has changed.



Raspberry Pi 5 without audio connector.

Video and audio on Raspberry Pi 5

Raspberry Pi 5 provides advanced multimedia capabilities thanks to two microHDMI connectors , which allow you to transmit video and audio in 4K resolution at a smooth 60 fps. Additionally, the device has two 4-lane MIPI CSI / DSI ports , allowing you to connect two 4K displays or two cameras. Raspberry Pi 5 uses the modern VideoCore VII GPU graphics card with a clock speed of 800 MHz, which guarantees performance when supporting advanced graphics and multimedia applications. CSI / DSI ports with 22 lines with a pitch of 0.5 mmrequire the use of adapters if you plan to use earlier accessories.

Raspberry Pi OS operating system

Raspberry Pi 5 is equipped with a microSD card slot with support for SDR104 high-speed mode, enabling fast booting of the Raspberry Pi OS system. Alternatively, the operating system can be booted directly from the USB port. Our store offers memory cards with a pre-installed operating system, ready to use immediately after unpacking. Raspberry Pi 5 is fully compatible with the Raspberry Pi OS system, starting with the Bookworm version.

Interfaces on Raspberry Pi 5.

Communication in Raspberry Pi 5

The fifth version of the Raspberry Pi retains the popular interfaces we know from typical PC computers. The key ones are:

  • Two microHDMI ports , allowing you to connect two monitors simultaneously and display images in 4K quality.
  • WiFi module - dual band, operating in the 2.4 GHz and 5 GHz band, compatible with the 802.11b/g/n/ac standard.
  • Bluetooth LE module - modern Bluetooth Low Energy (LE) wireless connection in version 5.0.
  • 4 USB ports - two of them are USB 2.0 and the other two are faster USB 3.0 with support for 5 Gbps operations simultaneously, perfect for connecting a variety of peripherals.
  • Ethernet port - enables fast wired connection to the network at speeds up to 1000 Mb/s. Additionally, Raspberry Pi 5 can be powered through this port (using the PoE+ HAT).
  • GPIO - Consists of 40 general purpose input/output pins that include interfaces such as I2C, SPI, and UART. They are used for a variety of applications such as driving LEDs, buttons, motor drivers, and many others.
The fifth version of the Raspberry Pi 5 is equipped with a power button, RTC battery connector, PCI-e and UART.

Raspberry Pi 5 Power Supply

Raspberry Pi 5 uses a USB Type-C port as a power source. The device requires a power supply with a voltage of 5 V and a minimum current output of 5 A. In our offer you will find both original power supplies and high-quality replacements that are fully compatible with Raspberry Pi 5. The standard current output of USB ports is 600 mA . However, when a USB Type-C power supply supporting the Power Delivery function is detected, this limit automatically increases to 1.6 A , which allows you to power more demanding peripherals
