The RB3 RGB/RGBW LED Remote Control is a wireless 2.4GHz RF touch remote designed for controlling compatible RGB and RGBW LED lighting systems. Featuring a responsive color touch wheel and four-zone control, it provides convenient adjustment of lighting colors, brightness, operating modes, and dynamic lighting effects.
Using 2.4GHz wireless transmission technology, the RB3 offers reliable communication, low power consumption, and a control distance of up to 30 meters under suitable conditions.
The remote supports individual or simultaneous control of up to four lighting zones and is compatible with selected Sperll SP63XE series LED controllers.

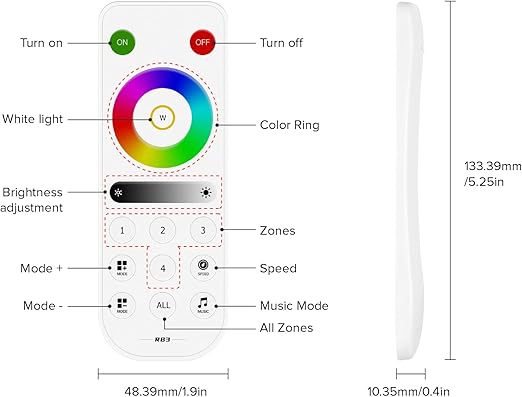

Key Features
-
2.4GHz RF Wireless Technology: Reliable wireless lighting control without requiring direct line of sight.
-
RGB/RGBW Lighting Control: Adjust LED colors using the integrated touch-sensitive color wheel.
-
4-Zone Control: Manage up to four lighting zones independently or simultaneously.
-
Brightness Adjustment: Increase or decrease lighting brightness.
-
Dynamic Lighting Modes: Select lighting effects and adjust their operating speed.
-
Music Rhythm Mode: Access music-responsive lighting modes when supported by the connected controller.
-
Touch Control Interface: Convenient color selection and lighting adjustment.
-
Multiple Controller Support: One remote can control multiple compatible LED controllers.
-
Remote Pairing: Each compatible controller supports pairing with up to five remote controls.
Technical Specifications
| Parameter |
Specification |
| Model |
RB3 |
| Product Type |
RGB/RGBW LED Remote Control |
| Wireless Technology |
2.4GHz RF |
| Operating Voltage |
3V DC |
| Battery Type |
3V DC5V cell battery (as listed by supplier; designation requires verification) |
| Battery Included |
Yes |
| Control Zones |
4 zones |
| Lighting Compatibility |
RGB and RGBW |
| Control Distance |
Up to 30m |
| Dimensions |
133.39 × 48.39 × 10.35mm |
| Control Interface |
Touch color wheel and buttons |
| Compatible Controllers |
SP630E, SP633E, SP634E, SP638E, SP639E, SP63BE |
| Control Functions |
ON/OFF, color selection, brightness, operating modes, speed, music rhythm |
Control Functions
- Turn compatible LED lighting ON or OFF.
- Select RGB colors using the touch color wheel.
- Adjust LED brightness.
- Select dynamic lighting effects.
- Adjust lighting effect speed.
- Activate supported music rhythm modes.
- Control individual lighting zones or all four zones simultaneously.
Applications
- RGB and RGBW LED strip lighting
- Home decorative lighting
- Architectural and ambient lighting
- Entertainment and gaming room lighting
- Commercial display lighting
- Multi-zone LED lighting installations
Important Notes
-
This product is a wireless remote control only, not an LED strip controller or power supply.
- Requires a compatible 2.4GHz RF LED controller.
- Music rhythm functionality depends on the connected controller.
- Actual wireless range may vary depending on obstacles and interference.
- The remote does not connect directly to LED strips.
Package Includes
- 1 × RB3 RGB/RGBW LED Remote Control
- 1 × Battery (as indicated in the supplied product information)
