Features:
From Demo to Production in Days, Not Months
Ready Custom AI Models: Built-in YOLO11with commercial license,Roboflow & SenseCraft AI support.
One-Line Deployment: Quick YOLO model deployment with a single command.
Easy Integration: Pocket-size, PoE&CAN-bus for expasion, Magnetic and 1/4" Thread Mount.
Reliable Performance: Optimized heat dissipation for stability.
Code or No-Code: Vision AI for Every Developer's Workflow
No-Code for Beginners: Node-RED for effortless custom workflows.
Pro-Code for Experts: C++ SDK and OpenCV C++ APIs for deeper diving.
Dedicated Accessories:Gimbals and more to enhance reCamera’s functionality.
Seeed Vision AI Ecosystem:From MCUs to high-end robotics, Seeed full Vision AI matrix ensures the ideal pair with reCamera.
Modular by Design, Customizable by Demand
Fully Open Source:Tailor reCamera to your needs.
Modular Design: Combine/Mix and match sensor, base, and core boards for endless configurations.
Plug & Swap:Easily assemble the reCamera for your unique needs.
Walk through the whole pipeline to discover how reCamera, the tiny yet powerful AI camera, simplifies and speed up your vision AI development.
Specifications:
reCamera 200x Series
reCamera 2002
reCamera 2002w
Processor System
Al Performance
1TOPS@Int8
SOC
SG2002
CPU
C906@1GHz + C906@700MHz
MCU
8051@8KB SRAM
Memory
256MB
Video Encode
5MP @ 30Fps
Camera
Sensor
OV5647
Resolution
5M(2592*1944) Pixels
Chip
1/4" CMOS Sensor
Pixel Size
1.4um
Output Format
RAW 10
Maximum Frame Rate
full size: 15fps
Aperture
F2.8
Equivalent Focal Length
3.46mm
Field of View
65°
Distortion
<1%
Lens structure
5P
Storage
eMMC
8GB/64GB
Expansion
removable TF card (up to 2TB, not included)
I/O
Ethernet
100Mbps
Wireless
/
WIFI2.4G/5G BT4.2/5.0
USB
USB Type-C(2.0)
Button
1x Reset Button, 1x Boot Button
Fill Light
0.3w White Light
LED Indicator
1x Power indicator,
1x eMMC status indicator,
1x CPU status(User LED)
Audio
Mic
On-board Mic
Speaker
External Speaker

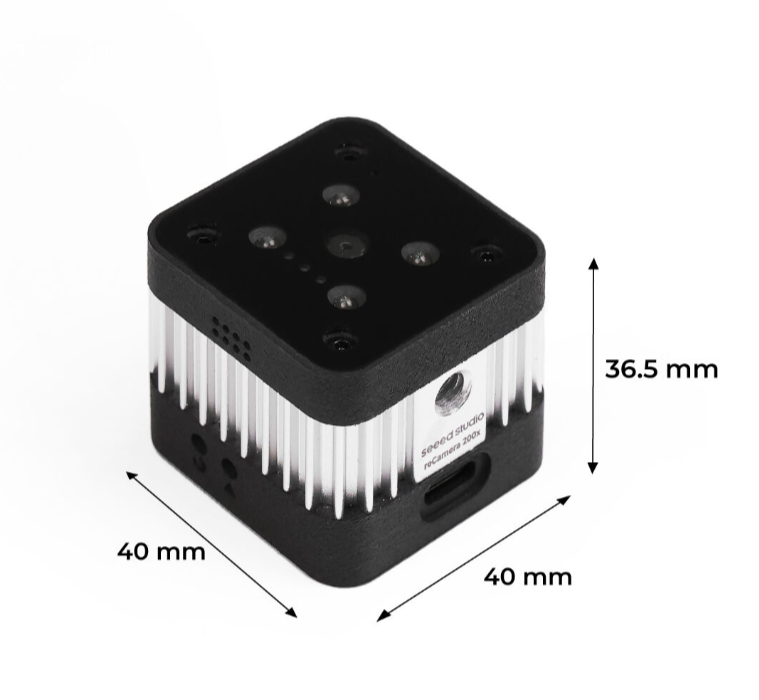

Dimension
40x40x36.5mm
Power
5V/1A USB Type C
Operation Temperature
-20～50°C
Operation Humidity
95%
Hardware Overview
Application
Node-RED for Effortless Custom Vision AI Workflows
With its plug and play design, and built-in YOLO 11 models, you can effortlessly drag and drop to start using reCamera. Set up custom vision AI workflows and preview AI Model processing on Node-RED, all with zero complex coding.
reCamera Gimbal
Effortlessly transform your gimbal with AI-powered control by connecting this camera module. Gain precise, two-axis movement—up, down, left, right—without any coding to start. Using the intuitive Node-RED platform, you can easily integrate and fine-tune the system, allowing computer vision via YOLO v11 to enhance your gimbal's tracking capabilities. Just set up your preferred model in Node-RED, make a few adjustments, and experience the full potential of computer vision in your gimbal.
reCamera Robot Arm
Enhance your robotic arm’s capabilities with seamless AI integration through this advanced camera module. Featuring flexible interface expansion and the open-source reCamera OS, this module adds powerful computer vision to your robotics setup for precise control and intelligent object recognition. Tailor it to your specific needs, and let the versatile interface handle complex tasks with advanced vision and adaptability.
