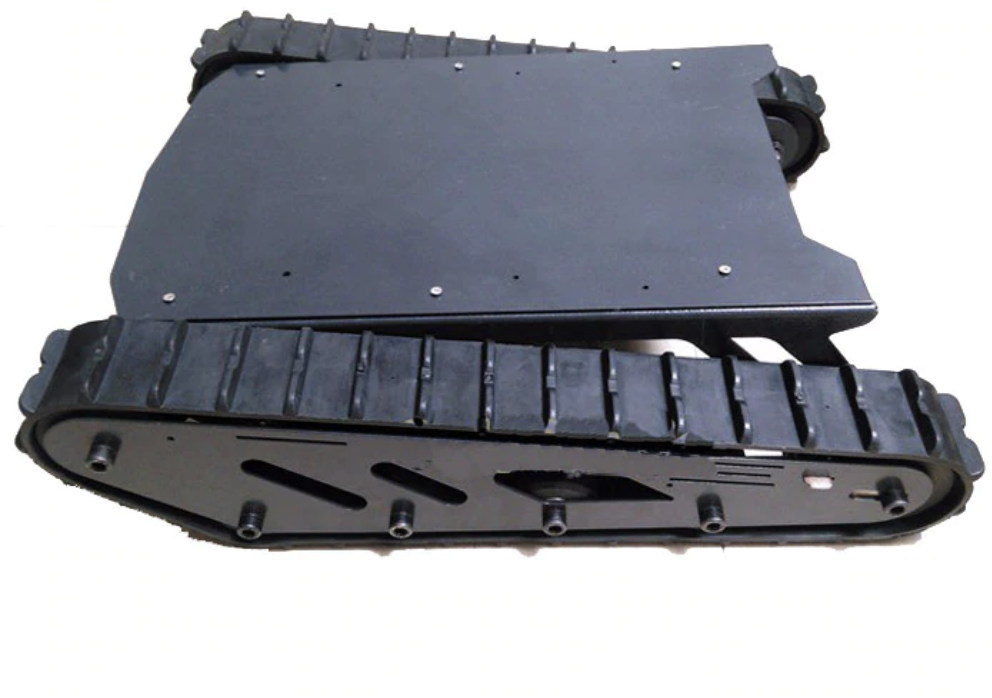

T007 Robot Tank Chassis With Rubber Tracks 15kg Load

$440.00
Quantity

Product Parameters:

  • Size: 18.1 × 15.7 × 5.9 inch / 46 × 40 × 15cm(length×width×height)
  • Power: 12V battery (NOT included)
  • Motor: A58SW-555 DC geared motor
  • Load: Easy to load 15kg, walk freely
  • Weight: 7.46 kg / 16.4 lb

Motor Parameters:

  • Product model: A58SW-555
  • Shaft diameter: 8mm
  • Type: Brushed DC motor
  • Rated voltage: 12V
  • Rated power: 10W
  • Speed: 260rpm
  • 3C rated voltage range: DC 36V or less
  • Encoder wiring:
  • Red line motor positive. Black line motor negative.
  • Blue line encoder positive. Green line encoder negative.
  • Yellow line signal 1. White line signal 2.

Wheels Parameters:

  • Bearing wheel material: Stainless steel
  • Drive wheel material: Stainless steel

Rubber Track Parameters:

  • Material: High quality rubber
  • Size: About 47 × 5.1cm, about 3cm each section. (47cm is the circumference)
  • Features: Fast speed, low noise, low vibration, high traction, low damage to the road surface, low ground pressure, light weight
