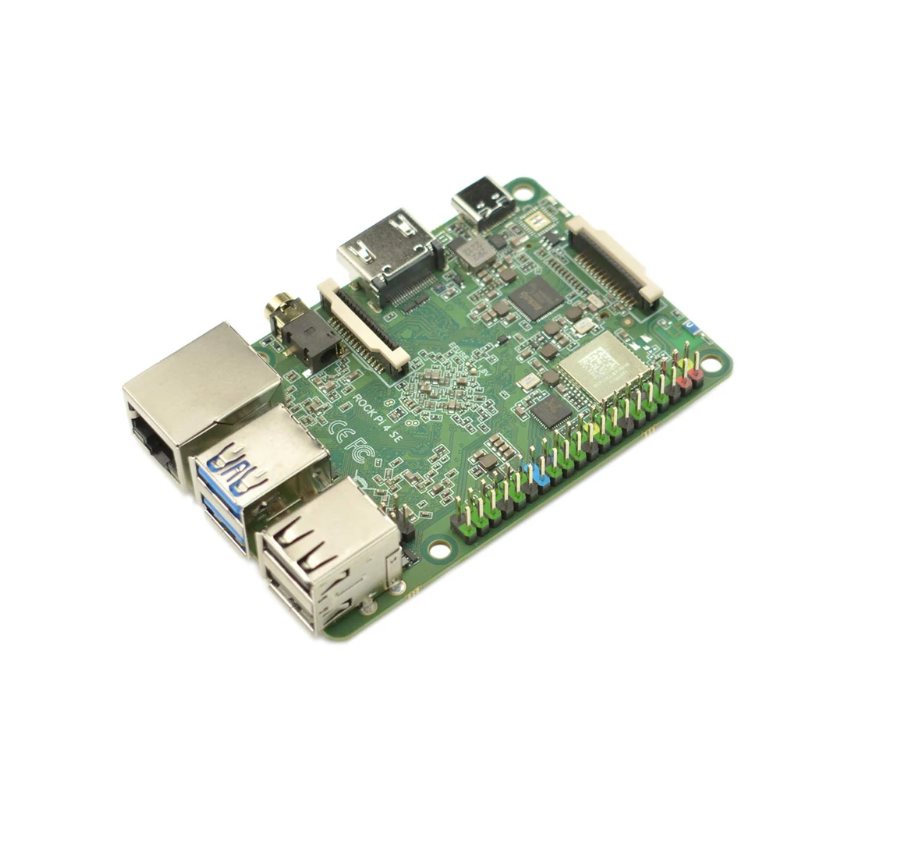

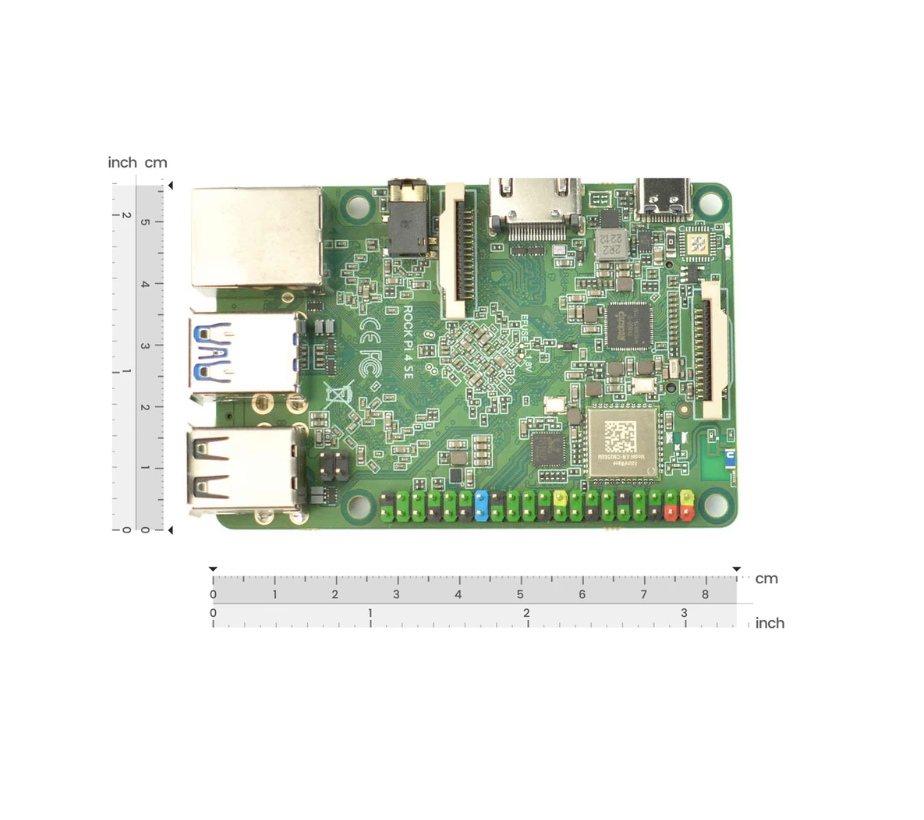

ROCK 4 SE is a reliable and high-performing ARM SBC (Single Board Computer) that offers class-leading performance and superior hardware as standard. This special edition board is based on a powerful Rockchip RK3399-T hexa-core processor and equipped with Arm® big.LITTLE™ technology dual Cortex-A72®CPU, quad Cortex-A53 CPU, Arm Mali™-T860MP4 GPU, and 4GB of 64-bit LPDDR4 RAM. With onboard RTC, WiFi, Bluetooth, antenna, audio jack, 4K HDMI port, and many more features, ROCK 4 SE is the perfect Raspberry Pi alternative, that provides an incredible performance as solid as a ROCK!

Note: We recommend using a PD or QC power supply with a maximum output of 9V or 12V.

Figure: Features of ROCK 4 SE

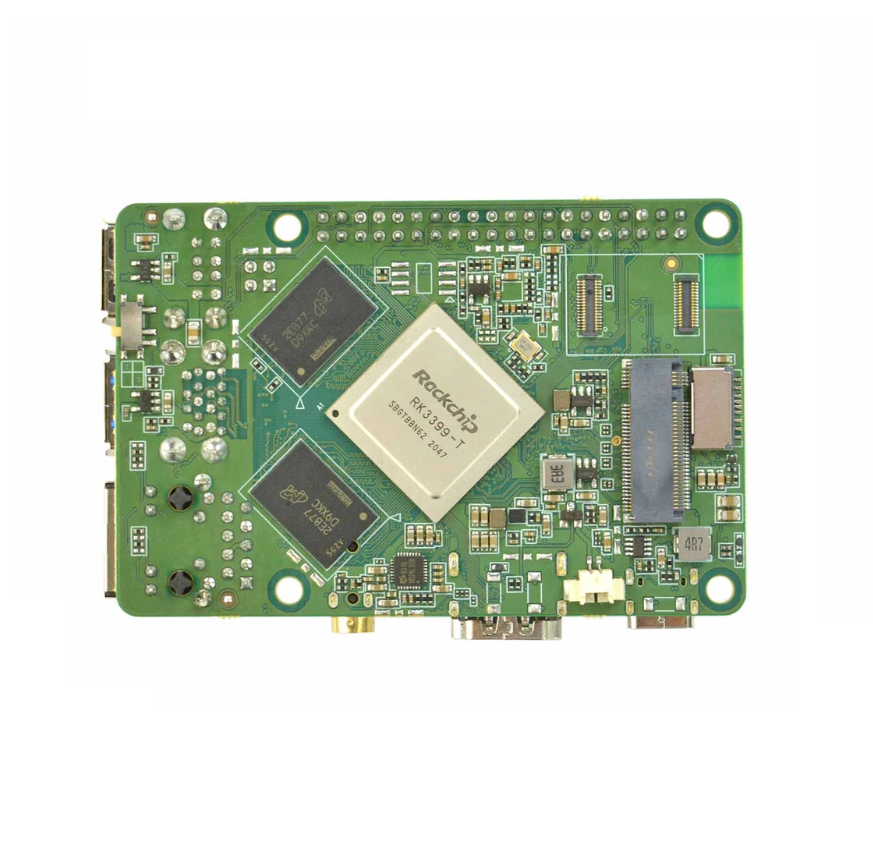

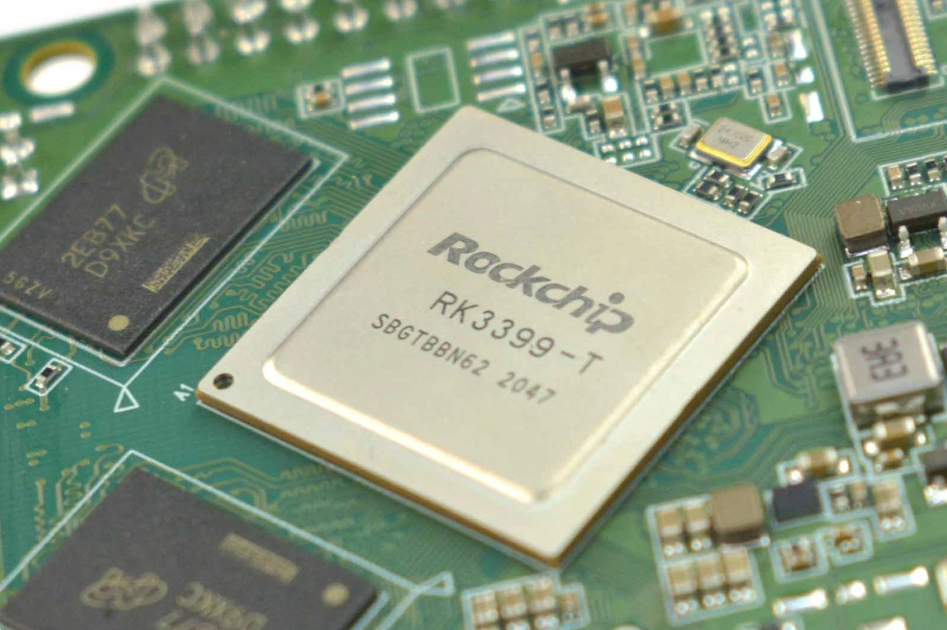

Powerful Rockchip processor

A low-power high-performing Rockchip RK3399-T processor is embedded into the heart of the ROCK 4 SE board. Equipped with an Arm® big.LITTLE™ technology dual Cortex®-A72@1.5GHz, quad Cortex-A53@1.0GHz CPU, Arm Mali™ – T860MP4 GPU and 4GB 64bit LPDDR4 RAM, be sure that your board will provide a high-performance solid as a ROCK!

Extensive storage capacity

ROCK 4 SE offers you an immense advantage over other competitors’ boards, benefiting from extensive storage capability. It features a Micro SD card, an eMMC and an M.2 (M key), ensuring the board with a tremendous amount of additional storage capacity.

RTC (real-time clock)

The onboard real-time clock allows you to accurately register the time even when the ROCK 4 SE is powered off. The board features an onboard connector for an RTC battery.

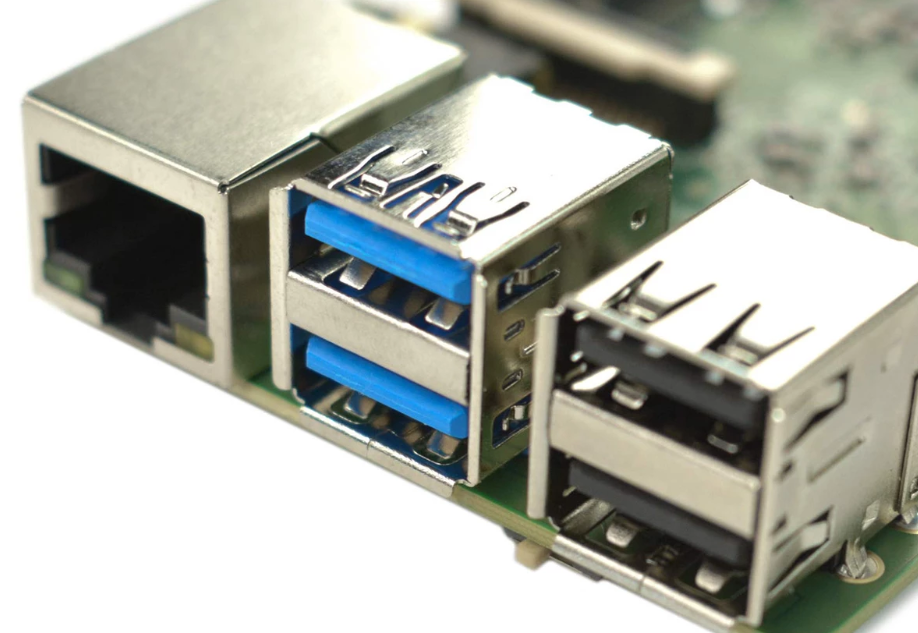

Multiple connectivity capabilities

The board offers you multiple connectivity capabilities, including Bluetooth 5.0, WiFi, Gigabit Ethernet, USB and HDMI ports, and a built-in antenna, allowing users to widely incorporate ROCK 4 SE into applications.

Highly compatible with SBC accessories

ROCK 4 SE features an onboard 40P GPIO extension header, offering extensive compatibility with a wide range of SBC accessories.

Figure: Pinout of ROCK 4 SE

Figure: ROCK 4 SE OS

Advanced multimedia functions

The ROCK 4 SE is fitted with an Arm Mali™ – T860MP4 quad-core graphics processing unit (GPU), ideal for advanced multimedia applications, including games. The board incorporates a camera and display interfaces, an HDMI port supporting displays up to 4Kp60 resolution, a high-quality audio output via a 3.5mm onboard audio jack that supports microphone input as default, and much more.

ROCK 4 SE is the perfect Raspberry Pi alternative

• Better performance – 4GB 64bit RAM, more processing cores, and a broader memory interface
• Extensive storage capacity
• Similar form factor and Interface layout
• 40 pin GPIO extension header
