RP-C7.6-LT Thin Film Force Sensor

$3.99

Shipping calculated at checkout.

Quantity

RP-C7.6-LT Thin Film Force Sensitive Resistor (FSR) Pressure Sensor

The RP-C7.6-LT Thin Film Force Sensor is a compact, ultra-thin, flexible pressure-sensitive resistor designed to detect applied force and pressure in electronic applications.

Using pressure-sensitive materials on a flexible film substrate, the sensor changes its electrical resistance when force is applied to its sensing area. This resistance change can be converted into an analog voltage signal using a simple voltage divider circuit.

With its 0.4mm thin profile, fast response, and flexible construction, the RP-C7.6-LT is suitable for robotics, touch-sensitive interfaces, pressure detection, and Arduino or ESP32 projects.

Key Features

  • Ultra-Thin Design: Approximately 0.4mm thick for integration into compact devices.
  • Flexible Construction: Thin-film substrate suitable for space-constrained applications.
  • Force-Sensitive Resistance: Electrical resistance changes according to applied pressure.
  • Analog Measurement: Can be connected to a microcontroller through a voltage divider circuit.
  • Fast Response: Suitable for detecting pressure changes and touch events.
  • Low Power Consumption: Passive resistive sensing element.
  • Compact Sensing Area: Suitable for small electronic devices and embedded systems.
  • Microcontroller Compatible: Can be interfaced with Arduino, ESP32, Raspberry Pi Pico, and other ADC-equipped controllers.

Technical Specifications

Parameter Specification
Model RP-C7.6-LT
Sensor Type Force Sensitive Resistor (FSR)
Manufacturing Technology Thin Film
Output Type Variable Resistance (Analog)

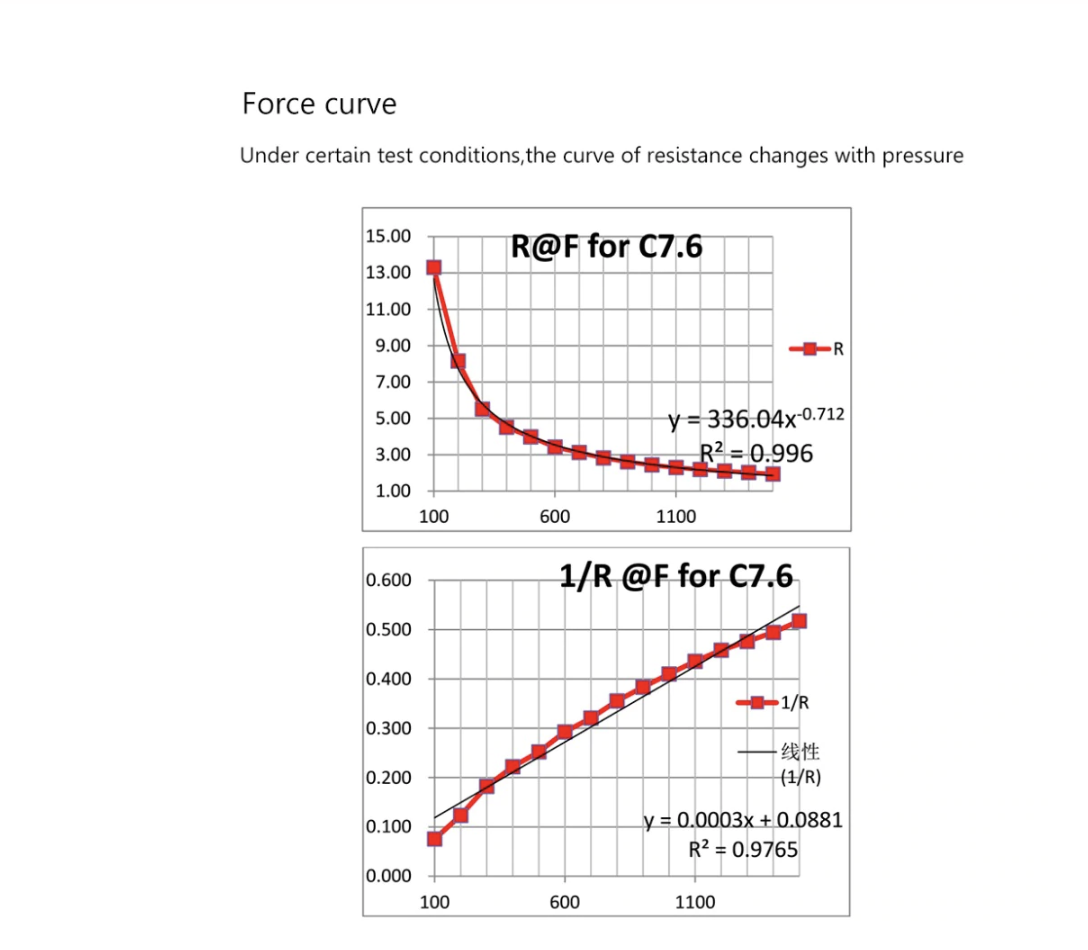

Force Detection Range Approximately 20g–1.5kg
Initial Trigger Force Approximately 20g
Resistance at Trigger Less than 200kΩ
No-Load Resistance Greater than 10MΩ

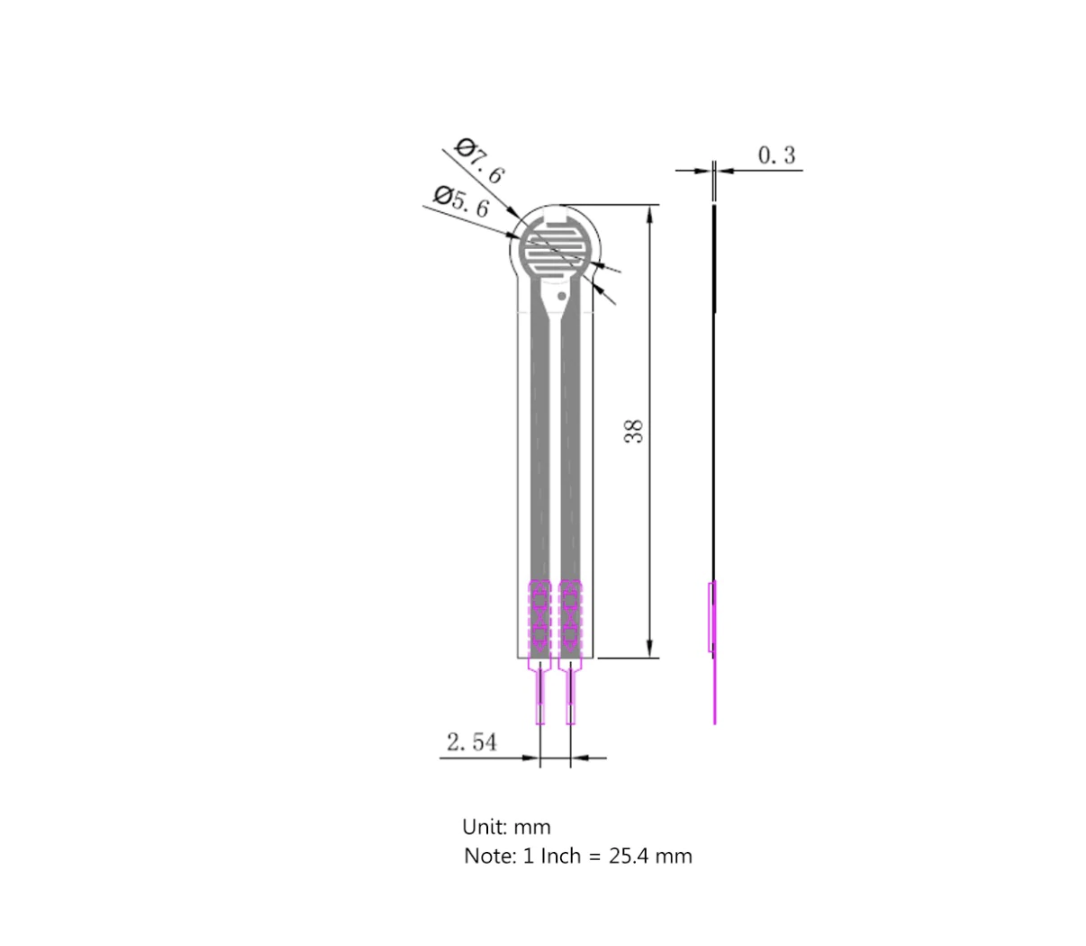

Thickness Approximately 0.4mm
Sensing Method Resistive Pressure Detection
Construction Flexible Thin-Film Substrate
Connection 2-Terminal Resistive Sensor

Pin Configuration and Connection Example

The RP-C7.6-LT uses two electrical terminals and behaves as a variable resistor.

Example: Connecting to Arduino

Sensor Connection Arduino Connection
Terminal 1 5V
Terminal 2 A0 (Analog Input)
10kΩ Resistor Between A0 and GND

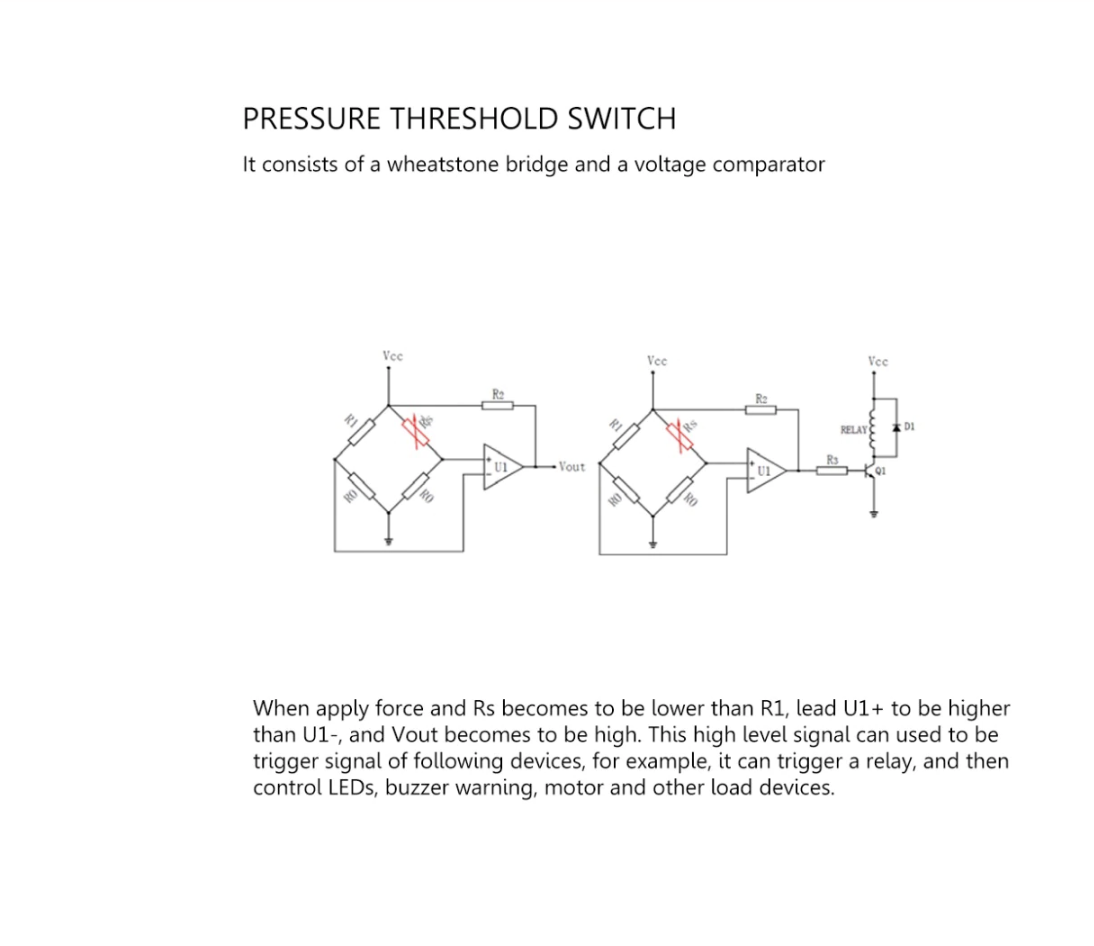

Working Principle:

  1. Apply pressure to the sensor's active sensing area.
  2. The sensor resistance changes as the applied force increases.
  3. The voltage divider converts the resistance change into an analog voltage.
  4. The Arduino reads the voltage through its analog input.
  5. The measured value can be used for pressure detection, touch sensing, or force monitoring.

For ESP32 applications, use a 3.3V voltage divider supply and a suitable ADC input.

Applications

  • Robotics Gripper Force Detection
  • Arduino and ESP32 Pressure-Sensing Projects
  • Touch-Sensitive Control Panels
  • Electronic Pressure Switches
  • Human-Machine Interfaces
  • Smart Wearable Devices
  • Interactive Electronic Projects
  • Educational Electronics
  • Contact and Object Detection

Important Notes

  • This sensor measures force indirectly through resistance changes and is not a precision weighing sensor.
  • Force measurements require calibration for the intended application.
  • The response may vary depending on the contact area, applied force distribution, and mounting conditions.
  • Avoid excessive bending, sharp folding, or applying force beyond the recommended detection range.
  • A voltage divider circuit is required to obtain an analog voltage output.
  • Raspberry Pi models without built-in analog inputs require an external ADC module.

Package Includes

  • 1 × RP-C7.6-LT Thin Film Force Sensor
