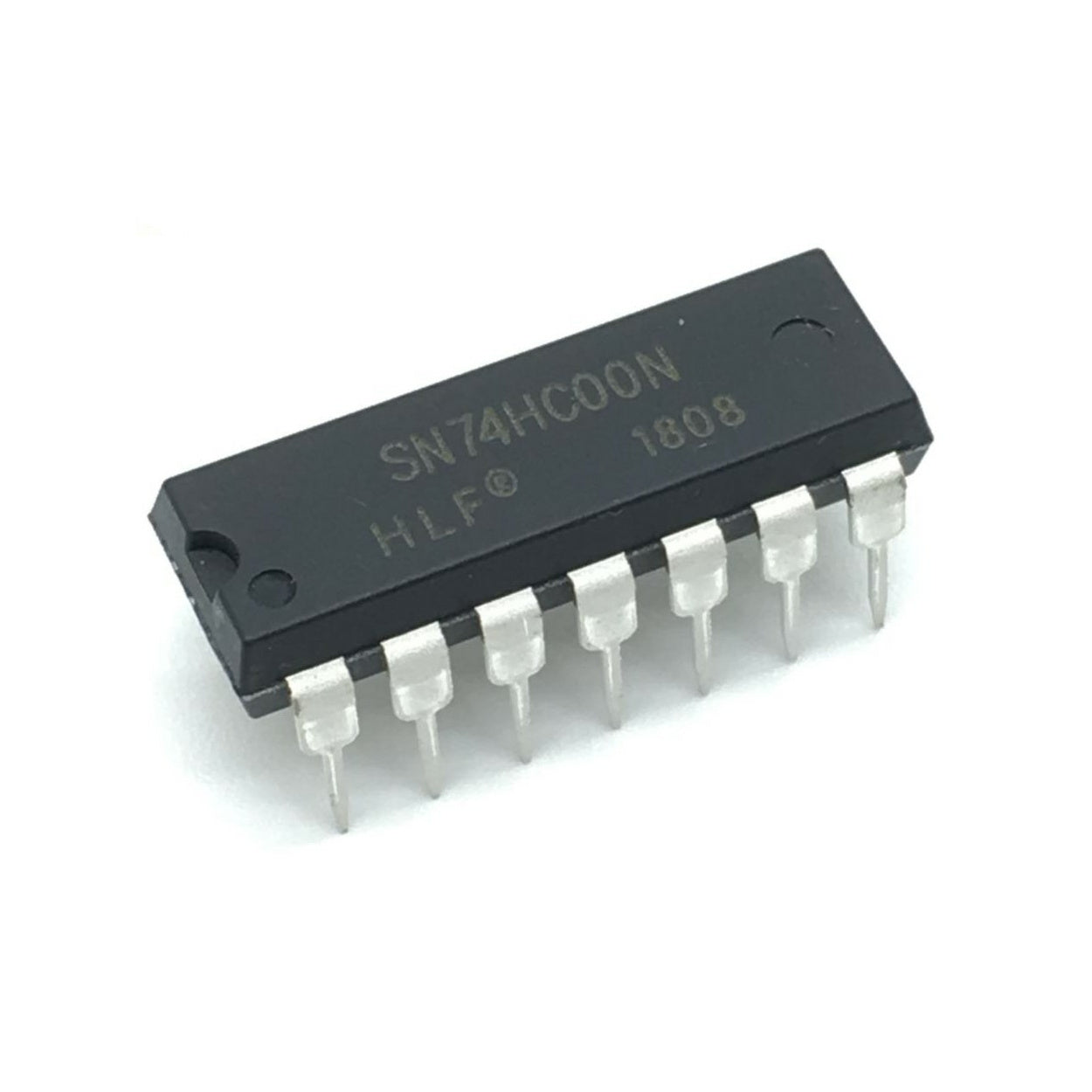

7400 Quad 2-Input NAND Gate Logic IC – 14-Pin DIP
The 7400 is a classic digital logic integrated circuit containing four independent 2-input NAND gates in a single 14-pin package.
NAND gates are fundamental building blocks in digital electronics and can be used to implement many other logic functions. The 7400 is widely used for digital logic experiments, educational circuits, signal processing, control logic, breadboard prototyping, and electronics projects.
Technical Specifications
-
IC Type: Digital Logic IC
-
Logic Function: NAND
-
Number of Gates: 4
-
Inputs per Gate: 2
-
Total Logic Inputs: 8
-
Independent Outputs: 4
-
Package: 14-Pin DIP as supplied
-
Logic Family: 7400 Series
-
Function: Quad 2-Input NAND Gate
NAND Logic Operation
Each gate has two inputs and one output.
The output remains HIGH unless both inputs are HIGH. When both inputs are HIGH, the output becomes LOW.
| Input A |
Input B |
Output Y |
| LOW |
LOW |
HIGH |
| LOW |
HIGH |
HIGH |
| HIGH |
LOW |
HIGH |
| HIGH |
HIGH |
LOW |
Pin Configuration
-
Pin 1: Gate 1 Input A
-
Pin 2: Gate 1 Input B
-
Pin 3: Gate 1 Output
-
Pin 4: Gate 2 Input A
-
Pin 5: Gate 2 Input B
-
Pin 6: Gate 2 Output
-
Pin 7: GND
-
Pin 8: Gate 3 Output
-
Pin 9: Gate 3 Input A
-
Pin 10: Gate 3 Input B
-
Pin 11: Gate 4 Output
-
Pin 12: Gate 4 Input A
-
Pin 13: Gate 4 Input B
-
Pin 14: VCC
Applications
Suitable for digital logic circuits, Boolean logic experiments, oscillators, pulse-generation circuits, control systems, signal inversion, switching logic, educational electronics, breadboard projects, and digital circuit prototyping.
Because NAND is a universal logic gate, combinations of NAND gates can be used to construct NOT, AND, OR, NOR, and other digital logic functions.
Important Note
The exact supply voltage, logic thresholds, propagation delay, output-current capability, and power consumption depend on the specific 7400-series variant supplied, such as 7400, 74LS00, 74HC00, 74HCT00, or another compatible family.
Always check the exact marking on the IC and its corresponding datasheet before selecting the supply voltage or interfacing it with other logic families.
Package Includes
1 × 7400 Quad 2-Input NAND Gate Logic IC
