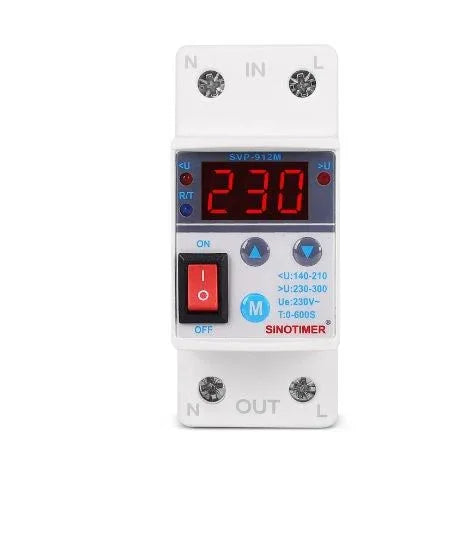

SVP-912M SINOTIMER brand automatic over-voltage and under-voltage protector is suitable for single-phase AC 230V, 50/60Hz, rated working current 40A. It is mainly used for residential household box entry or over-voltage, under-voltage of distribution lines for single-phase electrical equipment. Its main feature is when the circuit has over-voltage or under-voltage problems, the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal.

Functions:

• Over-voltage protection

• Under-voltage protection

• Automatic recovery

• Voltage display(voltage measurement)

• Failure Recovery Delay

Product Parameters:

• Model number:SVP-912M 40A

• Power supply:230VAC 50/60Hz

• Max.Loading power:40A

• Over-voltage protection value range:230V~300~OFF(default:280V)
• Under-voltage protection value range:210V--140V --OFF(default:160V)
• Recovery delay time:1s~600s(default:5s)

• Power consumption : <2W

• Electric machinery life : 100,000 times

• Installation:35mm DIN rail

  Noted: When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will work.
