Switching Power Supply 12V 50A

$27.99

Shipping calculated at checkout.

Quantity

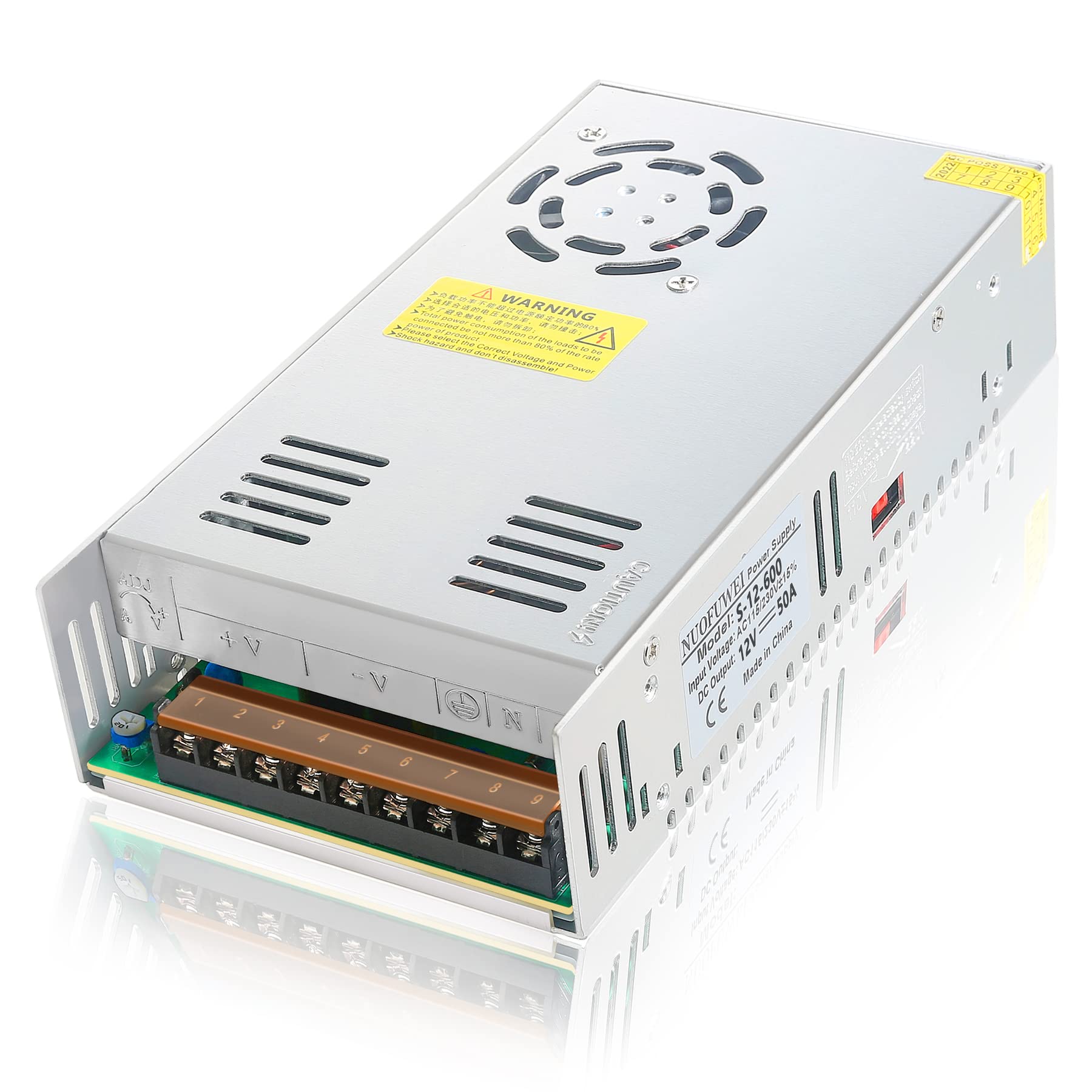

The 12V 50A 600W Switching Power Supply is a high-power AC-to-DC power supply designed to provide a regulated 12V DC output for LED lighting, robotics, industrial automation, DC motors, and electronic equipment.

Featuring a durable aluminum enclosure, integrated cooling fan, and built-in electrical protection, this power supply delivers up to 600W of rated output power for demanding applications.

Its compact metal housing, ventilation openings, and screw terminal connections make it suitable for integration into electrical cabinets, industrial systems, and DIY electronics projects.

Key Features

  • 12V DC Output: Provides regulated DC power for compatible electronic devices.
  • 50A Rated Output Current: Suitable for high-current 12V applications.
  • 600W Rated Output Power: Supports multiple devices within the total rated capacity.
  • AC Input: Designed for 110V/220V AC operation.
  • Integrated Cooling Fan: Helps dissipate heat during operation.
  • Aluminum Enclosure: Durable metal construction with ventilation openings.
  • Overload Protection: Helps protect against excessive output loads.
  • Overvoltage Protection: Helps prevent damage caused by abnormal output voltage.
  • Overcurrent Protection: Provides protection against excessive current demand.
  • Short-Circuit Protection: Helps protect the power supply during output short circuits.
  • Screw Terminal Connections: Convenient connections for AC input and DC output.

Technical Specifications

Parameter Specification
Product Type AC-DC Switching Power Supply
Input Voltage AC 110V / 220V
Output Voltage 12V DC
Rated Output Current 50A
Rated Output Power 600W
Enclosure Material Aluminum
Cooling Method Integrated Cooling Fan
Overload Protection Supported
Overvoltage Protection Supported
Overcurrent Protection Supported
Short-Circuit Protection Supported
Dimensions 215 × 115 × 55 mm
Connection Type Screw Terminals

Terminal Configuration

Terminal Function
L AC Live Input
N AC Neutral Input
FG / Earth Protective Earth
V+ Positive 12V DC Output
V− Negative DC Output

Note: Verify the terminal labels and input-voltage selection method on the actual unit before installation.

Connection Examples

12V LED Strip Lighting

Connect compatible 12V LED strips to the DC output terminals.

Calculate the total power consumption to ensure the combined load does not exceed the power supply's rated capacity.

DC Motor Applications

The power supply can provide 12V DC power to compatible motor drivers and DC motor systems.

Motor startup and stall currents must be considered when selecting the power supply.

Arduino, ESP32, and Raspberry Pi Projects

The power supply can serve as the main 12V power source for robotics projects.

Use a suitable DC-DC step-down converter to obtain the required voltage for microcontrollers and single-board computers.

Never connect the 12V output directly to a 5V or 3.3V power input.

Applications

  • High-Power LED Strip Lighting
  • Robotics and Automation Systems
  • 12V DC Motor Control
  • Industrial Control Equipment
  • CCTV and Security Systems
  • Electronic Prototyping
  • 3D Printer Accessories Requiring 12V
  • DIY Electronics Projects
  • 12V Cooling Fans
  • Electrical Control Panels

Important Notes

  • Electrical Safety: AC mains wiring must be performed by a qualified person.
  • Maximum Rated Output: 12V DC, 50A, 600W.
  • Cooling: Keep ventilation openings unobstructed and provide sufficient airflow.
  • Continuous Operation: Consider additional capacity for prolonged high-load applications.
  • Grounding: Connect the protective earth terminal correctly.
  • AC Input Selection: Confirm whether the unit uses an automatic input range or a manual 110V/220V selector before connecting power.
  • Motor Applications: Ensure motor startup and stall currents remain within the system's capabilities.
  • Indoor Use: The ventilated metal enclosure is not waterproof.
  • Installation: Mount inside a suitable protective enclosure to prevent accidental contact with live electrical terminals.
  • High Current: Use appropriately rated wiring, connectors, and branch-circuit protection.

Package Includes

  • 1 × 12V 50A 600W Switching Power Supply
