The Waterproof Integral Water Level Transmitter & Controller is a complete solution for continuous water and liquid-level measurement in tanks, reservoirs, wells, cisterns, and industrial water systems.
This model features a 10-meter measuring range, 10-meter sensor cable, and standard 4–20mA industrial output, making it suitable for both commercial and industrial monitoring and automation applications.
The submersible level transmitter continuously measures the water level and sends the measurement to the digital controller for convenient real-time monitoring.
Key Features
- 0–10 m water level measuring range
- 10 m sensor cable
-
Standard 4–20mA output
- Waterproof submersible level transmitter
- Digital display controller
- Continuous real-time water level measurement
- Suitable for deep tanks and wells
- Industrial current-loop signal transmission
- Stable signal transmission over long cable distances
- Good resistance to electrical interference
- Suitable for water tanks, reservoirs, wells and cisterns
- Can be integrated into industrial automation systems
- Suitable for pump and water-level control applications
Technical Specifications
| Specification |
Details |
| Product Type |
Integral Water Level Transmitter & Controller |
| Measuring Range |
0–10 m |
| Sensor Cable Length |
10 m |
| Output Signal |
4–20mA |
| Sensor Type |
Submersible Level Transmitter |
| Measurement |
Continuous Liquid Level |
| Display |
Digital |
| Signal Transmission |
Wired Current Loop |
| Installation |
Submersible |
| Application Medium |
Water / Compatible Liquids |
| Wireless Connectivity |
No built-in Wi-Fi or Bluetooth |
| Monitoring Type |
Continuous / Real-Time |
| Controller Type |
Digital Water Level Controller |
Applications
Ideal for water storage tanks, underground tanks, wells, reservoirs, cisterns, irrigation systems, agricultural water systems, industrial tanks, pump stations, building water systems, automatic filling systems and water-treatment applications.
How It Works

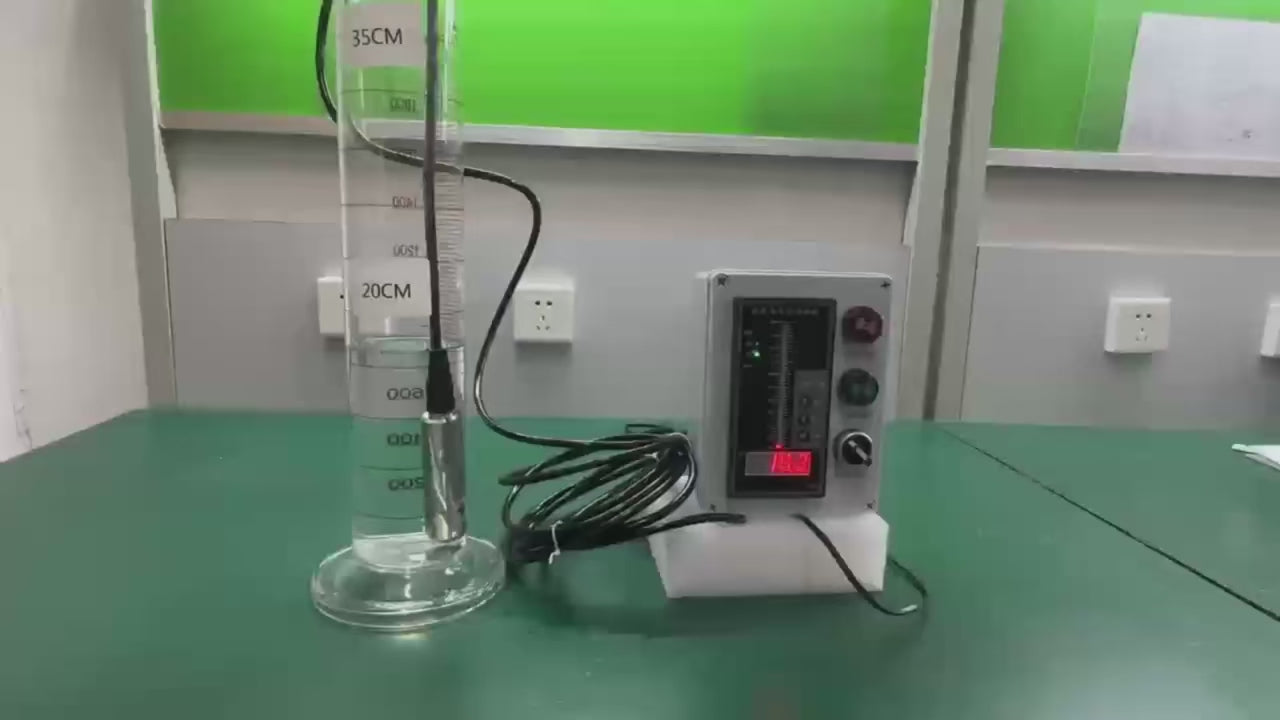

The submersible transmitter is lowered into the water tank or reservoir. It measures the liquid level and converts the measurement into a standard 4–20mA current signal.

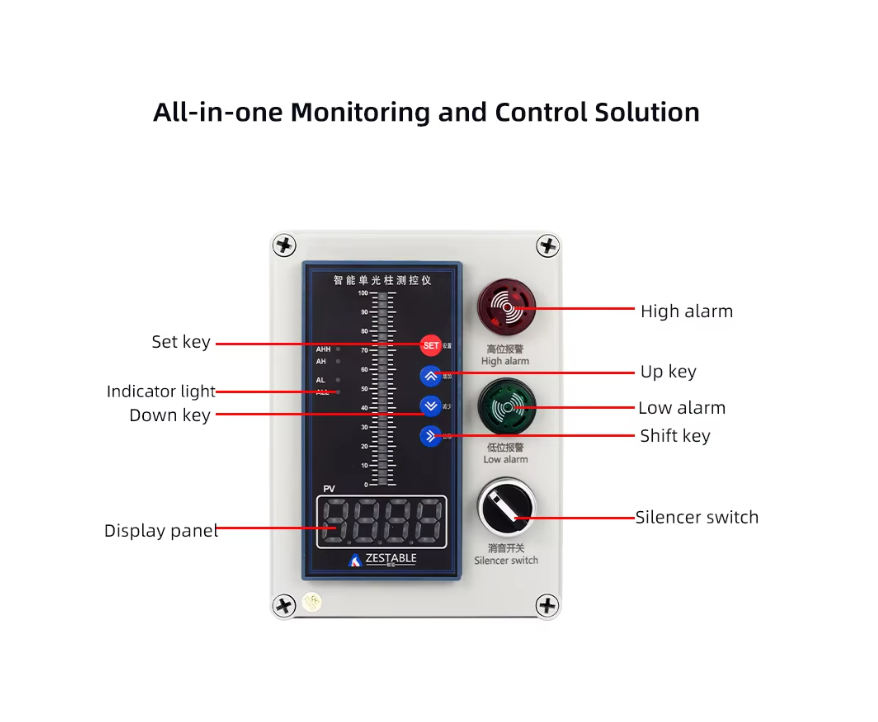

The controller receives this signal and displays the corresponding water level, providing continuous monitoring of the tank rather than simply detecting an ON/OFF level like a conventional float switch.

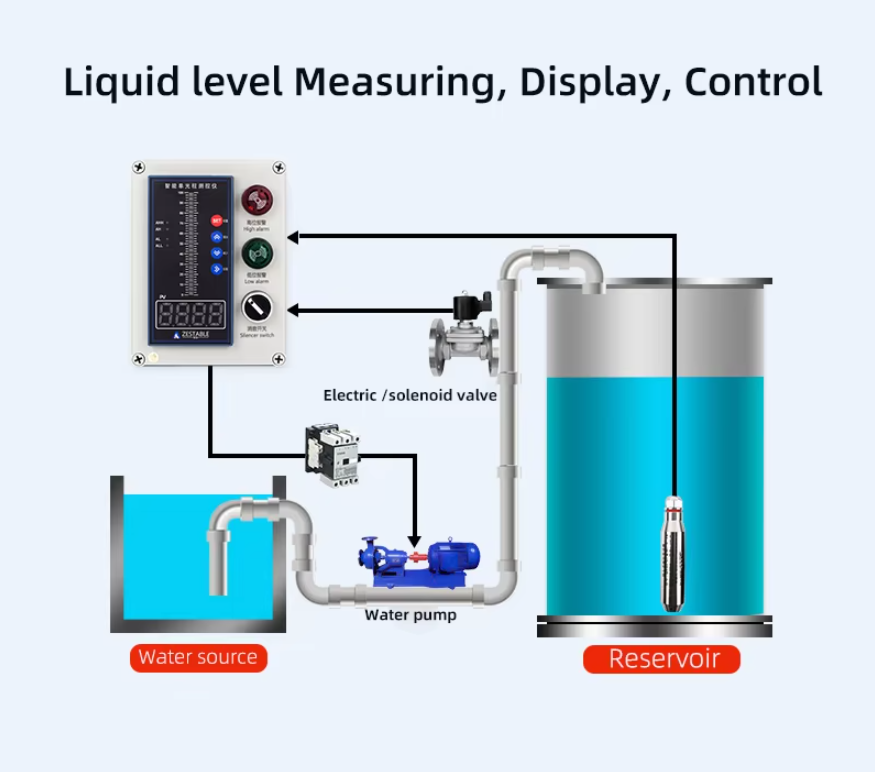

Typical installation:
Water Tank → Submersible Sensor → 10m Cable → 4–20mA → Digital Controller
Datasheet:
https://drive.google.com/file/d/1XtFcqi460tTUmD7kMnUL8n4RXyGUkgmA/view?usp=drive_link
