Features:

1. The input voltage range of 4-40V, the output voltage range of 1.25-36V.
2. The digital display is the output voltage.
3. Adjust the potentiometer knob: clockwise to adjust the output voltage is increased; counter-clockwise, the output voltage is reduced; after re-regulate the voltage connected load and prevent damage to the load.
4. More than 5A current, please enhance heat dissipation.
5. The low voltage display precision 0.01V, high-voltage display accuracy 0.1V

Specifications:

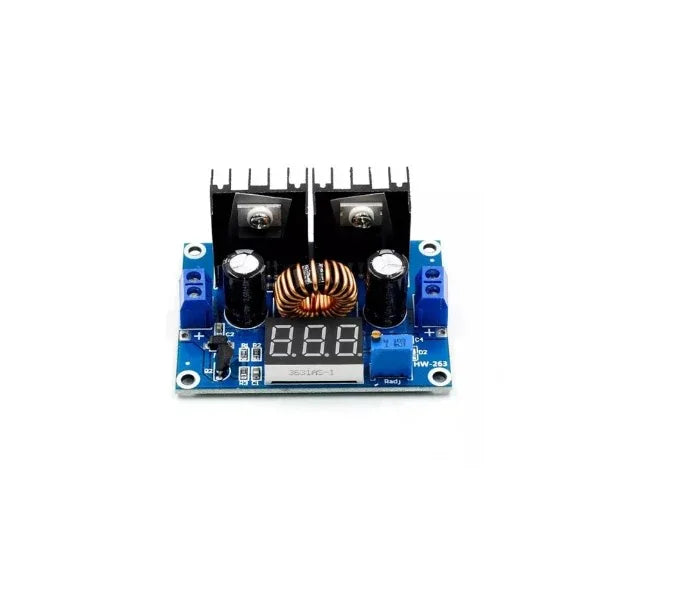

• Product Name: DC voltage regulator module.
• Product Type: XH-M404.
• Voltage mode: PWM modulation.
• Input voltage: DC4-40V.
• Output voltage: DC1.25 ~ 36V.
• Maximum current: 8A (long work proposals 5A).
• Maximum power: 200W.
• Conversion efficiency: 94%.
• Switching Frequency: 180KHz.
• Protection: short circuit protection, input reverse polarity protection, over-temperature protection (over temperature cut off the output).
